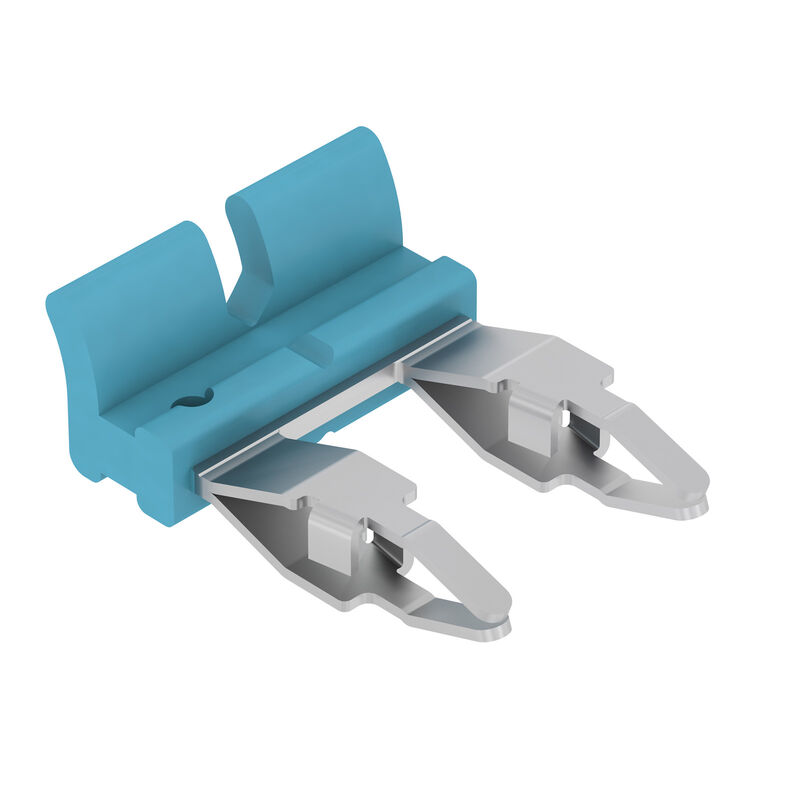

TCC 6.4/2 BL

TERMSERIES, Cross-connector

Produkt ID 2556430000

Egenskaber

General ordering data

Version	TERMSERIES, Cross-connector
Order No.	2556430000
Type	TCC 6.4/2 BL
GTIN (EAN)	4050118566949
Qty.	10 Styk

Dimensions and weights

Depth	4,8 mm
Depth (inches)	0,189 inch
Height	13,1 mm
Height (inches)	0,516 inch
Width	9,8 mm
Width (inches)	0,386 inch
Net weight	0,372 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Cross-connection data

Rated voltage	300 V
Rated current	17,5 A
Insulation	Yes
Touch-safe protection	Yes
Colour	blue
Number of cross-connected terminals	2
Number of poles	2
Pitch in mm (P)	6,4 mm
Type of mounting	Plugged
Version	cannot be cut to length

Rated data UL

Rated current (UL)

10 A

General data

Version	cannot be cut to length
Colour	blue
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-0

Insulation coordination

Rated voltage

300 V

Connection data

Pitch in mm (P)

6,4 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87940)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2556430000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2556430000)
User Documentation	[Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93135) [Beipackzettel / Package Insert](https://mdcop.weidmueller.com/mediadelivery/asset/900_93136)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002586
ETIM 7.0	EC002586
ETIM 8.0	EC002586
ETIM 9.0	EC002586
ETIM 10.0	EC002586
ECLASS 9.1	27-37-16-92
ECLASS 10.0	27-37-16-92
ECLASS 11.0	27-37-16-92
ECLASS 12.0	27-37-16-92
ECLASS 13.0	27-37-16-92
ECLASS 14.0	27-37-16-92
ECLASS 15.0	27-37-16-92

Approvals

ROHS

Conform
