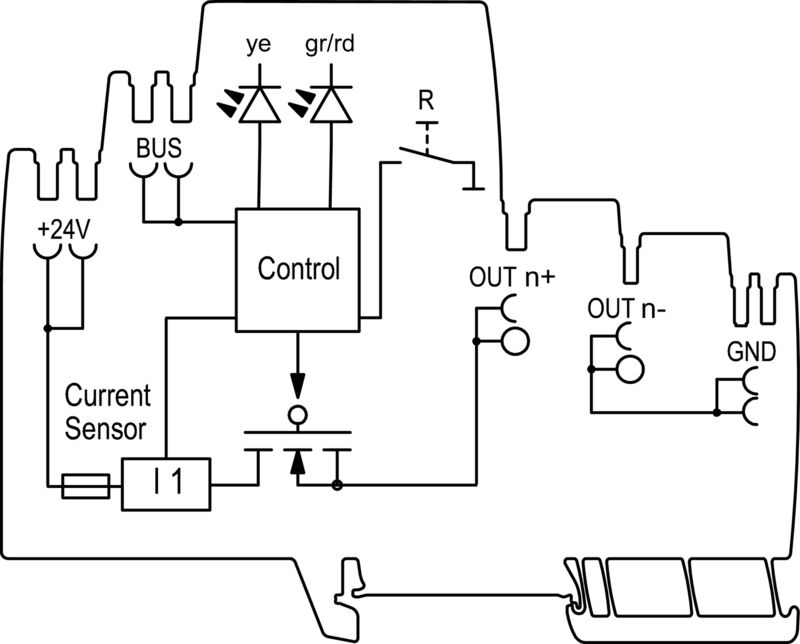

Egenskaber
| Version | Electronic load monitoring |
| Order No. | 2624990000 |
| Type | TGD ELM-12 |
| GTIN (EAN) | 4050118689433 |
| Qty. | 1 Styk |
| Depth | 96,5 mm |
| Depth (inches) | 3,799 inch |
| Height | 125 mm |
| Height (inches) | 4,921 inch |
| Width | 12,2 mm |
| Width (inches) | 0,48 inch |
| Net weight | 60 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 925510b1-0d14-47d7-86d9-90447b22ecd3 |
| DC input voltage range | 18…30 V DC |
| Input fuse (internal) | Yes |
| max. admissible residual ripple at the input | 100 mVpp |
| Rated input voltage | 24 V DC |
| Adjustable rated current | Yes |
| Capacitive load | 20,000 µF |
| Connection system | PUSH IN |
| Rated current | 12 A |
| Rated current (per channel) | 12 A |
| Triggering characteristic | see characteristic curve |
| Conformal coating | No |
| Function key |
Activation time < 3s
Reset ON |
| MTTF |
|
| Protection degree | IP20 |
| Relay to activate the output | No |
| Surge voltage category | III |
| Surge voltage category | III |
| Conductor cross-section, AWG/kcmil , max. | 12 |
| Conductor cross-section, AWG/kcmil , min. | 26 |
| Conductor cross-section, flexible , max. | 2,5 mm² |
| Conductor cross-section, flexible , min. | 0,14 mm² |
| Conductor cross-section, rigid , max. | 2,5 mm² |
| Conductor cross-section, rigid , min. | 0,14 mm² |
| Connection system | PUSH IN |
| Number of terminals | 4 (++ / --) |
| Screwdriver blade | 0.6 x 3.5 |
| LED green |
Operation (failure-free)
Early warning: I Out > 90% I Rated (flashing) |
| Red LED |
Load monitoring has disconnected
Load monitoring has triggered (flashing) Internal error (rapid flashing) |
| Yellow LED |
Address is assigned
Address is being assigned (flashing) |
| Approval/Certificate/Document of Conformity |
[TopGuard TGD ELM UL 61010-1 CSA C22.2.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306133)
[Decleration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_174804) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_89475)
[Application notes -- PROtop-topGUARD_IO-Link_CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_319010) [Application notes -- PROtop_topGUARD_IO-Link_Twincat](https://mdcop.weidmueller.com/mediadelivery/asset/900_319013) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2624990000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2624990000) |
| User Documentation |
[Operating instructions / leaflet](https://mdcop.weidmueller.com/mediadelivery/asset/900_86923)
[IO-Link Register Description topGUARD](https://mdcop.weidmueller.com/mediadelivery/asset/900_102812) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002057 |
| ETIM 7.0 | EC002057 |
| ETIM 8.0 | EC002057 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-10-16 |
| ECLASS 9.1 | 27-37-10-16 |
| ECLASS 10.0 | 27-37-10-16 |
| ECLASS 11.0 | 27-37-10-16 |
| ECLASS 12.0 | 27-37-10-16 |
| ECLASS 13.0 | 27-37-10-16 |
| ECLASS 14.0 | 27-37-10-16 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
