Egenskaber

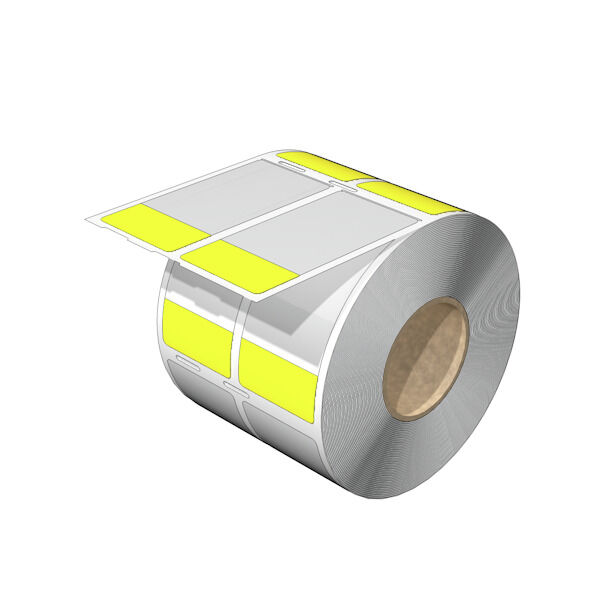

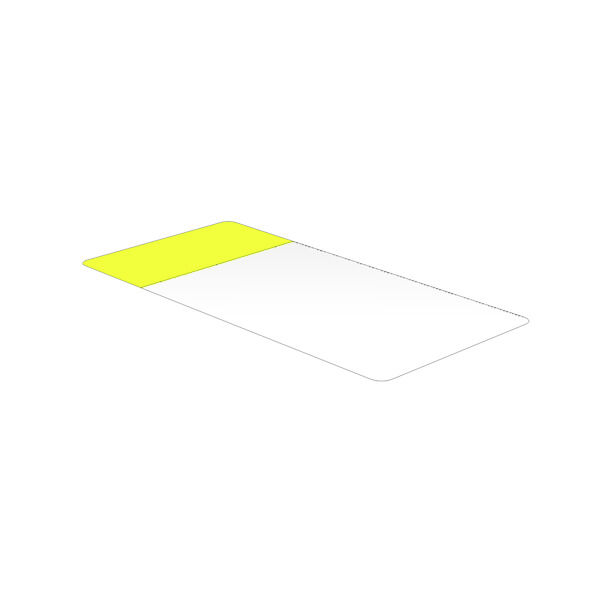

| Version | THM, Conductor and cable markers, 8 - 16 mm, 34 x 70 mm, yellow |
| Order No. | 2799240000 |
| Type | THM WO VIN 34/70 GE |
| GTIN (EAN) | 4064675261001 |
| Qty. | 500 Styk |
| Depth | 0,08 mm |
| Depth (inches) | 0,003 inch |
| Height | 34 mm |
| Height (inches) | 1,339 inch |
| Width | 70 mm |
| Width (inches) | 2,756 inch |
| Net weight | 0,54 g |
| Operating temperature range | -40...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| Halogen | Yes |
| Material | Vinyl film |
| Number of markers per combination | 1 Label reel = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Number per roll | 500 |
| Operating temperature range | -40...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | without |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Width | 70 mm |
| Conductor O.D. | 8 - 16 mm |
| Conductor O.D., max. | 16 mm |
| Conductor O.D., min. | 8 mm |
| Halogen | Yes |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
