Egenskaber
| Version | W-Series, Isolating lever |
| Order No. | 1035500000 |

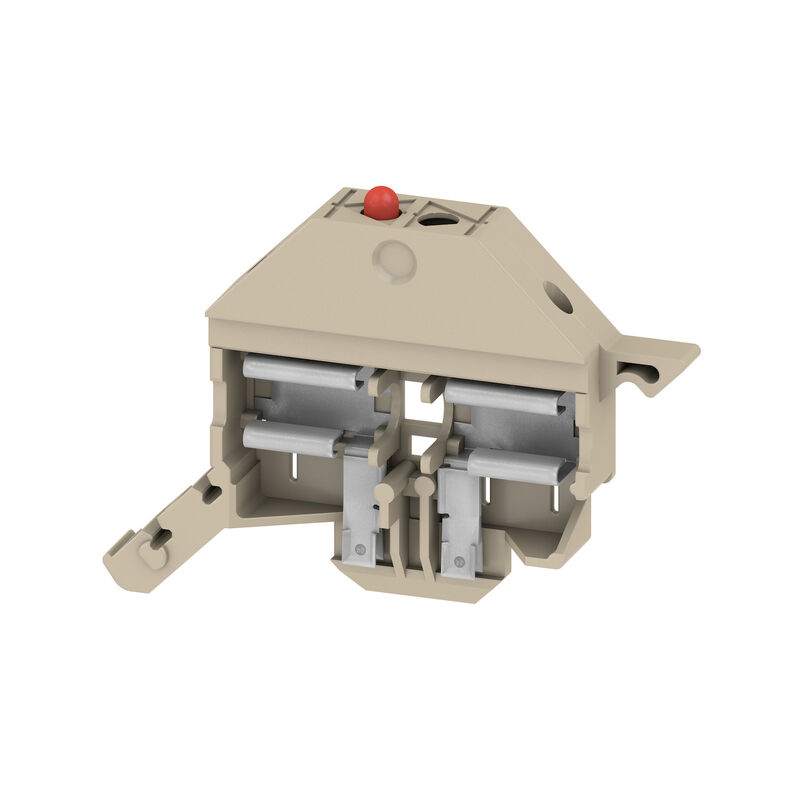

| Type | TNHE WSI6 60-150V DC/AC |
| GTIN (EAN) | 4008190205539 |
| Qty. | 50 Styk |
| Depth | 28,8 mm |
| Depth (inches) | 1,134 inch |
| Height | 50,15 mm |
| Height (inches) | 1,974 inch |
| Width | 6,95 mm |
| Width (inches) | 0,274 inch |
| Net weight | 5,66 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7cI |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Snap-on |
| Pitch in mm (P) | 7,8 mm |
| Installation advice | Direct mounting |
| Rated current | 0 A |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1035500000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| Approvals |  |
| ROHS | Conform |
