Egenskaber
| Version | TERMSERIES-compact, Feed-through terminal, PUSH IN |
| Order No. | 2774080000 |
| Type | TXPL FT |
| GTIN (EAN) | 4064675037859 |
| Qty. | 1 Styk |

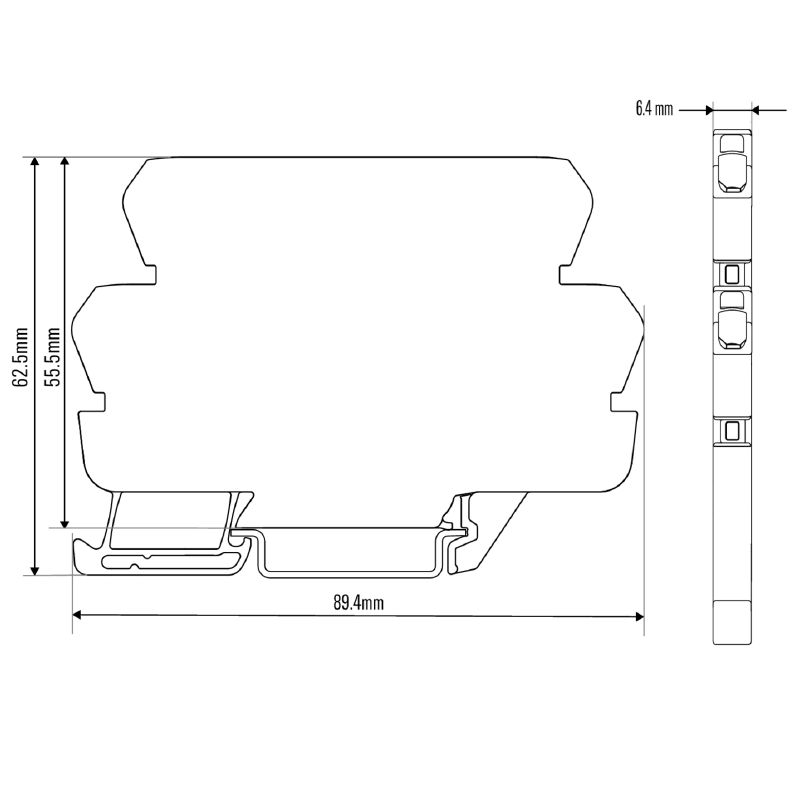

| Depth | 62,5 mm |
| Depth (inches) | 2,461 inch |
| Height | 89,4 mm |
| Height (inches) | 3,52 inch |
| Width | 6,4 mm |
| Width (inches) | 0,252 inch |
| Net weight | 25 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...60 °C |
| Humidity | 5-85% relative humidity, Tu = 40°C, without condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E60693 |
| Rail | TS 35 |
| Colour | black |
| Pollution severity | 2 |
| Protection degree | IP20 |
| Certificate No. (cURus) | E60693 |
| Wire connection method | PUSH IN |
| Stripping length, rated connection | 9 mm |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,14 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0,14 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire connection cross section, finely stranded, min. | 0,14 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 0,14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Approval/Certificate/Document of Conformity |
[DE PA5600 230411 001 ISS 01](https://mdcop.weidmueller.com/mediadelivery/asset/900_299115)
[UK PA5600 230411 001 ISS 01](https://mdcop.weidmueller.com/mediadelivery/asset/900_301040) [DE PA5600 240311 001 ISS 02](https://mdcop.weidmueller.com/mediadelivery/asset/900_315609) [UK PA5600 240311 001 ISS 02](https://mdcop.weidmueller.com/mediadelivery/asset/900_315610) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293932) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2774080000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2774080000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2774080000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-16-92 |
| ECLASS 10.0 | 27-37-16-92 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ECLASS 14.0 | 27-37-16-92 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
