Egenskaber

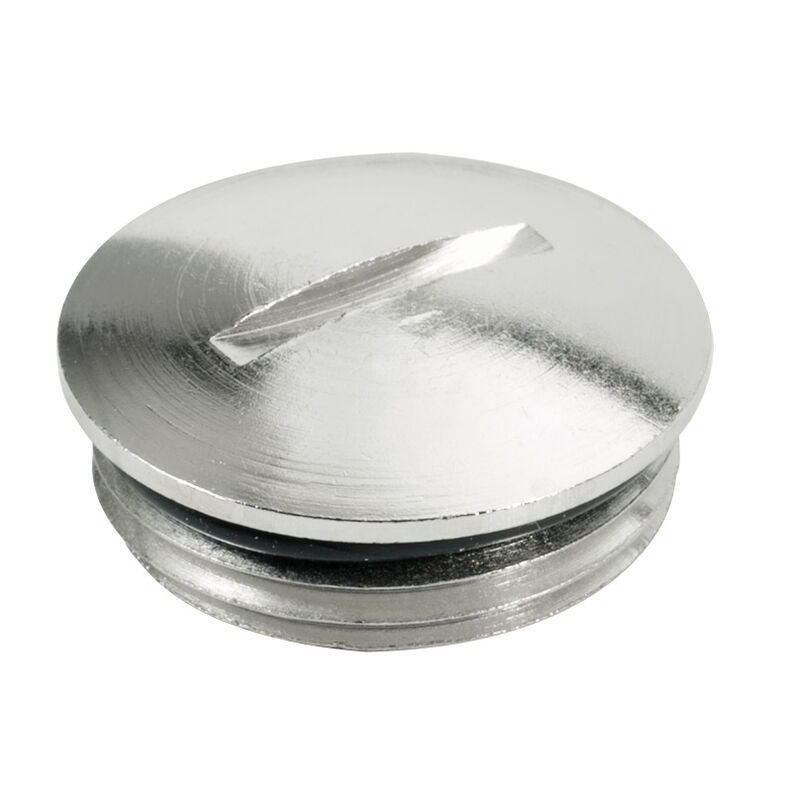

| Version | VPMS (blanking plug in brass), Blanking plug, in closed state, PG 7, 5 mm, Brass, nickel-plated |
| Order No. | 0521600000 |
| Type | VP 7-MS65 |
| GTIN (EAN) | 4008190011871 |
| Qty. | 100 Styk |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.08.2024 |
| Alternative product | [1719250000](~/p/1719250000) |
| Height | 7,5 mm |
| Height (inches) | 0,295 inch |
| Length | 7,5 mm |
| Length (inches) | 0,295 inch |
| Diameter | 15 mm |
| Wall thickness, min. | 0,5 mm |
| Wall thickness, max. | 4 mm |
| Net weight | 3,28 g |
| Operating temperature | -40 °C...100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 0c0edf9f-b35a-4d1f-b8f0-99d4b22ac203 |
| Cable glands | PG |
| Diameter of sealing ring | 12,5 mm |
| External thread | PG 7 |
| Halogen | No |
| Head diameter | 15 mm |
| Length of thread | 5 mm |
| Material | Brass, nickel-plated |
| O-Ring | NBR |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Protection degree | IP68 - 5 bar (30 min.) |
| Sealing | NBR |
| Silicone | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_53521) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0521600000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0521600000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000451 |
| ETIM 7.0 | EC000451 |
| ETIM 8.0 | EC000451 |
| ETIM 9.0 | EC000451 |
| ECLASS 9.0 | 27-14-44-25 |
| ECLASS 9.1 | 27-14-44-33 |
| ECLASS 10.0 | 27-14-44-25 |
| ECLASS 11.0 | 27-14-44-25 |
| ECLASS 12.0 | 27-14-08-05 |
| ECLASS 13.0 | 27-14-08-05 |
| ECLASS 14.0 | 27-14-08-05 |
| Approvals |  |
| ROHS | Conform |
