Egenskaber

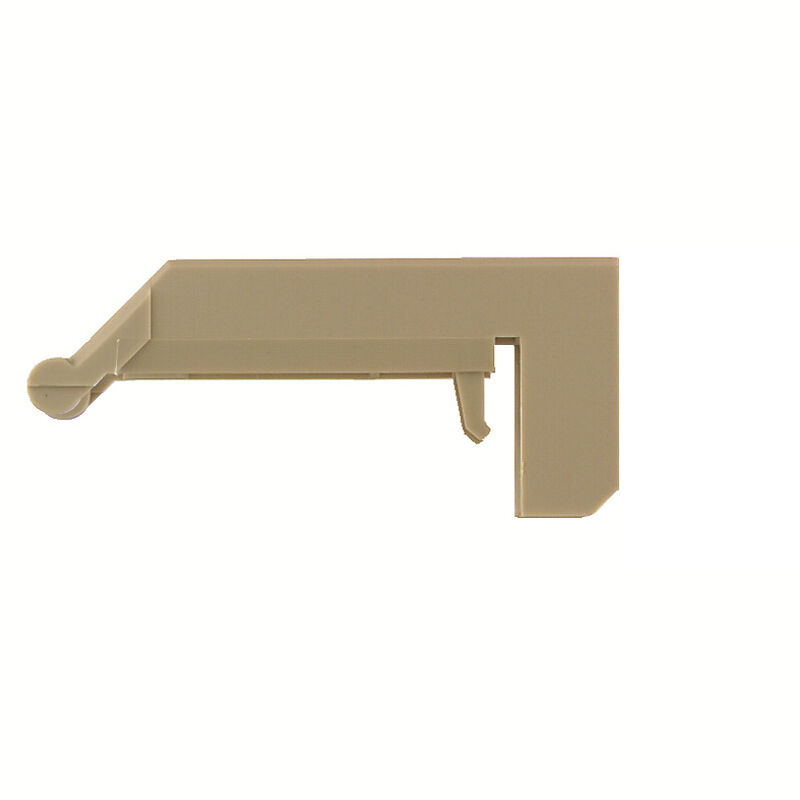

| Version | Bolt-type screw terminals, Hood, beige, 40.6 mm |
| Order No. | 1070460000 |
| Type | WAH 120/KURZ |
| GTIN (EAN) | 4008190191047 |
| Qty. | 10 Styk |
| Depth | 34,5 mm |
| Depth (inches) | 1,358 inch |
| Height | 64 mm |
| Height (inches) | 2,52 inch |
| Width | 40,6 mm |
| Width (inches) | 1,598 inch |
| Net weight | 10,3 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Explosion-tested version | No |
| Type of fixing | Snap-on |
| Pitch in mm (P) | 42 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60241) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1070460000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1070460000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
