Egenskaber

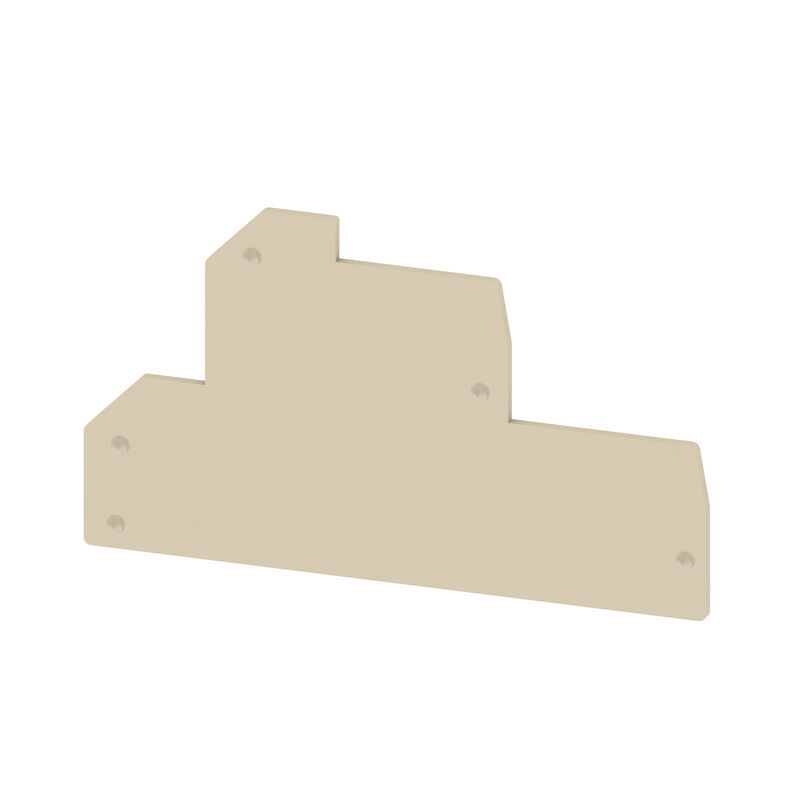

| Version | End plate (terminals), dark beige, Height: 83.75 mm, Width: 1.5 mm, V-0, Wemid |
| Order No. | 1305260000 |
| Type | WAP WDT 2.5/2 |
| GTIN (EAN) | 4050118104493 |
| Qty. | 50 Styk |
| Depth | 48,25 mm |
| Depth (inches) | 1,9 inch |
| Height | 83,75 mm |
| Height (inches) | 3,297 inch |
| Width | 1,5 mm |
| Width (inches) | 0,059 inch |
| Net weight | 4,57 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Snap-on | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61106) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1305260000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1305260000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
