Egenskaber

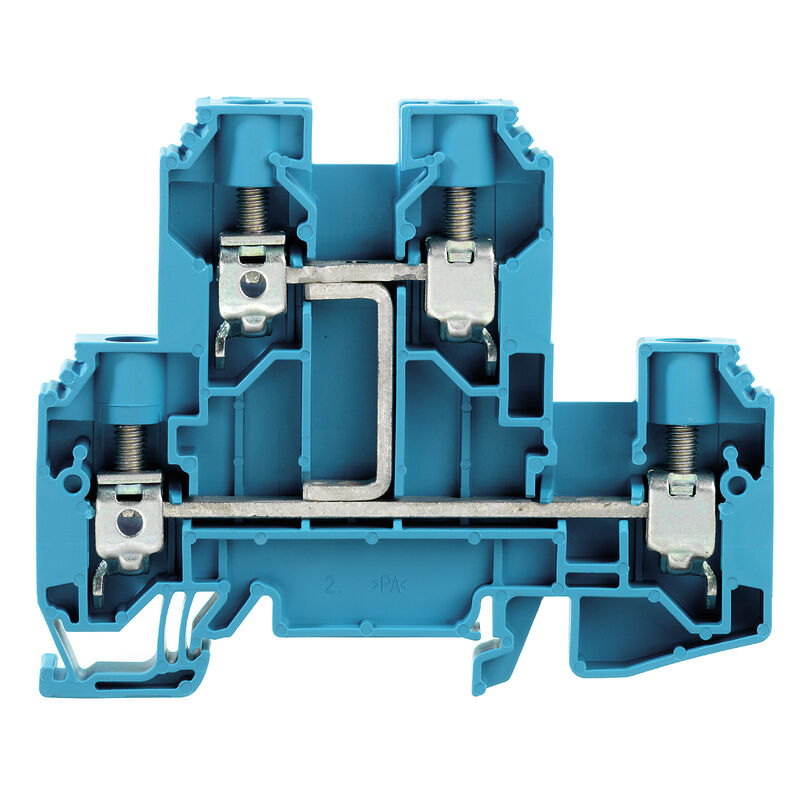

| Version | Multi-tier modular terminal, Screw connection, blue, 10 mm², 800 V, 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid |
| Order No. | 1186780000 |
| Type | WDK 10 V BL |
| GTIN (EAN) | 4050118024654 |
| Qty. | 50 Styk |
| Depth | 69 mm |
| Depth (inches) | 2,717 inch |
| Depth including DIN rail | 69,5 mm |
| Height | 85 mm |
| Height (inches) | 3,346 inch |
| Width | 9,9 mm |
| Width (inches) | 0,39 inch |
| Net weight | 43 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
Double terminal Vertically cross-connected for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1,5 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 |
| Number of connections | 4 |
| Stripping length | 12 mm |
| Tightening torque, max. | 1,9 Nm |
| Tightening torque, min. | 1,2 Nm |
| Twin wire-end ferrules, max. | 6 mm² |
| Twin wire-end ferrules, min. | 1,5 mm² |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1,5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1,5 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Current size B (CSA) | 49 A |
| Current size C (CSA) | 49 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 18 AWG |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 16 |
| Rated cross-section | 10 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 57 A |
| Current at maximum wires | 73 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,56 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1,82 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 6 AWG |
| Conductor size Factory wiring min. (UR) | 18 AWG |
| Conductor size Field wiring max. (UR) | 6 AWG |
| Conductor size Field wiring min. (UR) | 18 AWG |
| Current size B (UR) | 49 A |
| Current size C (UR) | 49 A |
| Current size D (UR) | 5 A |
| Voltage size B (UR) | 600 V |
| Voltage size C (UR) | 600 V |
| Voltage size D (UR) | 600 V |
| Wire cross section max. (UR) | 6 AWG |
| Wire cross section min. (UR) | 18 AWG |
| Approval/Certificate/Document of Conformity |
[CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89273)
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89277) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37642) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60719) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1186780000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1186780000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1186780000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-02 |
| ECLASS 14.0 | 27-25-01-02 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
Tilbehør
-
Produkt ID:1341630000Pakningsenhed:500 Styk
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, white
-
Produkt ID:1120470000Pakningsenhed:48 Styk
Group markers, Cover, 33.3 x 8 mm, Pitch in mm (P): 8.00 WDU 4, WEW 35/2, ZEW 35/2, yellow
-
-
-
Produkt ID:1112950000Pakningsenhed:48 Styk
Group markers, Cover, 33.3 x 8 mm, Pitch in mm (P): 8.00 WDU 4, WEW 35/2, ZEW 35/2, yellow
-
Produkt ID:1112940000Pakningsenhed:48 Styk
Group markers, Cover, 33.3 x 8 mm, Pitch in mm (P): 8.00 WDU 4, WEW 35/2, ZEW 35/2, white
-
Produkt ID:1059000000Pakningsenhed:50 Styk
End bracket, dark beige, TS 35, V-2, Wemid, Width: 12 mm, 100 °C
-
Produkt ID:1052560000Pakningsenhed:50 Styk
Cross-connector (terminal), when screwed in, yellow, 76 A, Number of poles: 2, Pitch in mm (P): 9.90, Insulated: Yes, Width: 7.55 mm
-
Produkt ID:1054960000Pakningsenhed:50 Styk
Cross-connector (terminal), when screwed in, yellow, 63 A, Number of poles: 3, Pitch in mm (P): 9.90, Insulated: Yes, Width: 7.55 mm
-
Produkt ID:1052460000Pakningsenhed:20 Styk
Cross-connector (terminal), when screwed in, yellow, 63 A, Number of poles: 10, Pitch in mm (P): 9.90, Insulated: Yes, Width: 7.55 mm
-
Produkt ID:1055060000Pakningsenhed:50 Styk
Cross-connector (terminal), when screwed in, yellow, 63 A, Number of poles: 4, Pitch in mm (P): 9.90, Insulated: Yes, Width: 7.55 mm
-
Produkt ID:1186720000Pakningsenhed:20 Styk
End plate (terminals), dark beige, Height: 85 mm, Width: 1.5 mm, V-0, Wemid
-
Produkt ID:1186730000Pakningsenhed:20 Styk
End plate (terminals), blue, Height: 85 mm, Width: 1.5 mm, V-0, Wemid
