WDUL 4/50K

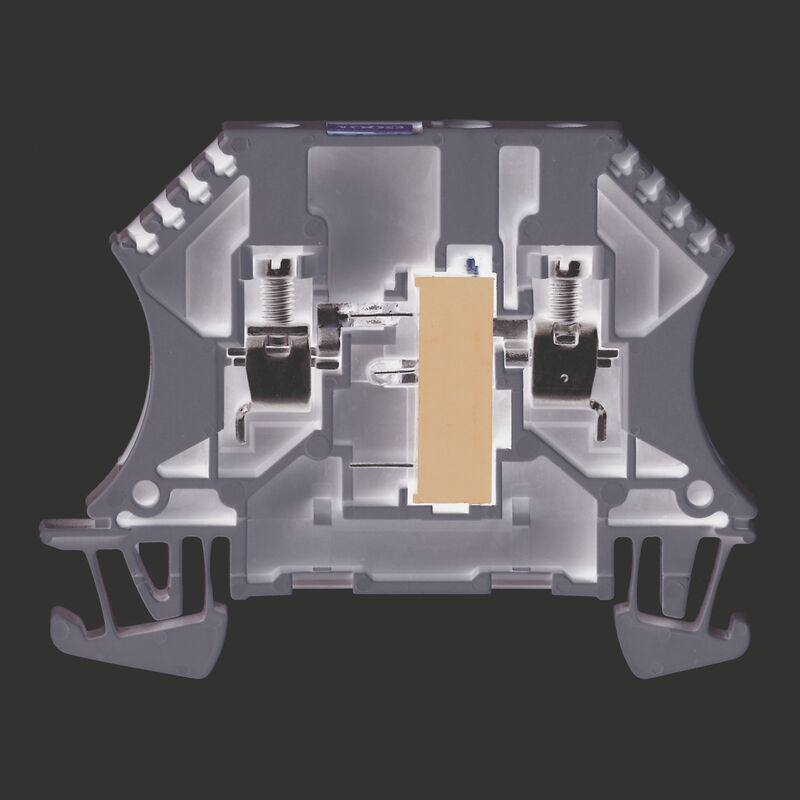

Component terminal block, Screw connection, dark beige, 4 mm², 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Produkt ID 1027800000

Version	Component terminal block, Screw connection, dark beige, 4 mm², 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
Order No.	1027800000
Type	WDUL 4/50K
GTIN (EAN)	4008190047634
Qty.	10 Styk

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7cI, 34
REACH SVHC	Lead 7439-92-1
SCIP	e1c310ef-6b67-4efa-80a6-d307472f4de9

Version	Screw connection Compensating terminals With resistor One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	1,5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	0,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	0,5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	1,5 mm²

Component potentiometer

Blade size	0.6 x 3.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0,13 mm²
Clamping screw	M 3
Connection cross-section, finely stranded, max.	4 mm²
Connection cross-section, finely stranded, min.	0,5 mm²
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	1,5 mm²
Connection direction	on side
Gauge to IEC 60947-1	A4
Number of connections	2
Stripping length	9 mm
Tightening torque, max.	0,8 Nm
Tightening torque, min.	0,6 Nm
Type of connection	Screw connection
Type of connection 2	Screw connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 22
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

TS 35 offset

32 mm

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 22

Rated cross-section	4 mm²
Rated voltage	250 V
Rated current	120 mA
Current at maximum wires	6 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1 mΩ
Power loss in accordance with IEC 60947-7-x	1,02 W
Pollution severity	3
Surge voltage category	III

Product information

The allowed continuous operating temperature must be observed

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37145) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59701)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1027800000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1027800000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
