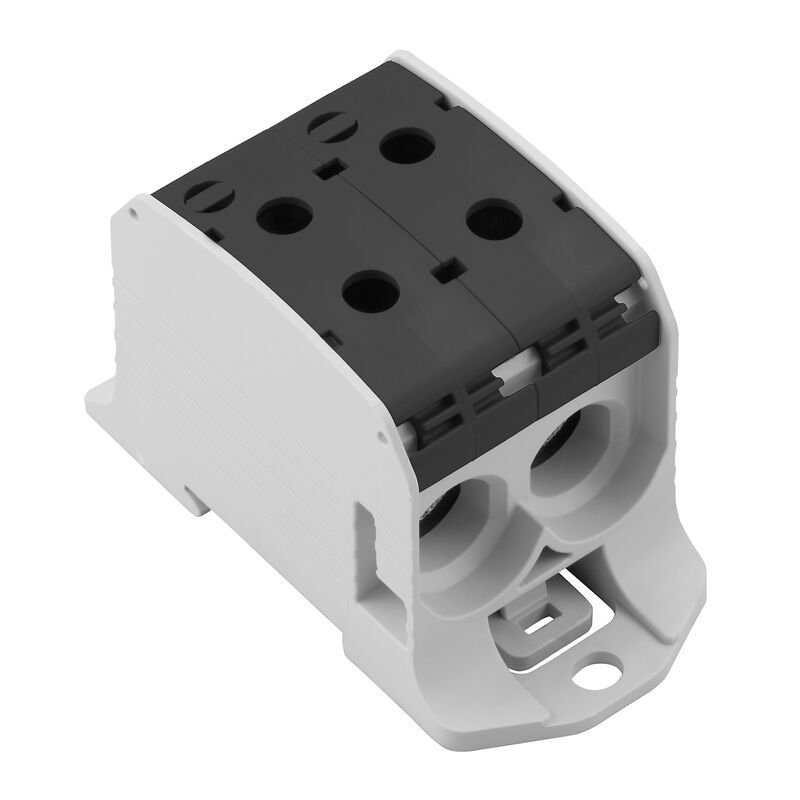

WPD 231 2X95/2X95 BK

Potential distributor terminal, Screw connection, black, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid

Produkt ID 2502740000

Egenskaber

General ordering data

Version	Potential distributor terminal, Screw connection, black, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
Order No.	2502740000
Type	WPD 231 2X95/2X95 BK
GTIN (EAN)	4050118516562
Qty.	1 Styk

Dimensions and weights

Depth	57 mm
Depth (inches)	2,244 inch
Height	93 mm
Height (inches)	3,661 inch
Width	47 mm
Width (inches)	1,85 inch
Net weight	178 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	black
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	CNEX18ATEX0016U
Certificate No. (IECEX)	IECEXNEX18.0010U
Max. voltage (ATEX)	880 V
Current (ATEX)	232 A
Wire cross section max. (ATEX)	95 mm²
Max. voltage (IECEX)	880 V
Current (IECEX)	232 A

System specifications

Version	Screw connection
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	4
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	Yes
Installation advice	Terminal rail / mounting plate
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

Screw connection

Conductors for clamping (rated connection)

Connection cross-section, stranded, max.	95 mm²
Number of connections	4
Type of connection	Screw connection
Type of connection 2	Screw connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	70 mm²
Wire connection cross-section, solid core, max.	96 mm²

General

Installation advice	Terminal rail / mounting plate
Number of poles	1
Rail	TS 35
Standards	IEC 60947-7-1 UL 1059 CSA

Rating data

Rated cross-section	95 mm²
Rated voltage	1.000 V
Rated AC voltage	1.000 V
Rated DC voltage	1.000 V
Rated current	232 A
Standards	IEC 60947-7-1 UL 1059 CSA
Volume resistance according to IEC 60947-7-x	0,14 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	7,42 W
Short-time withstand current resistance	8/20µs with 50 kA
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)

E60693

Important note

Product information

You will find additional information in the downloadsection of the onlinecatalogue
