Egenskaber
| Version | Bolt-type screw terminals, Cross-connector, Number of poles: 2 |
| Order No. | 1065100000 |

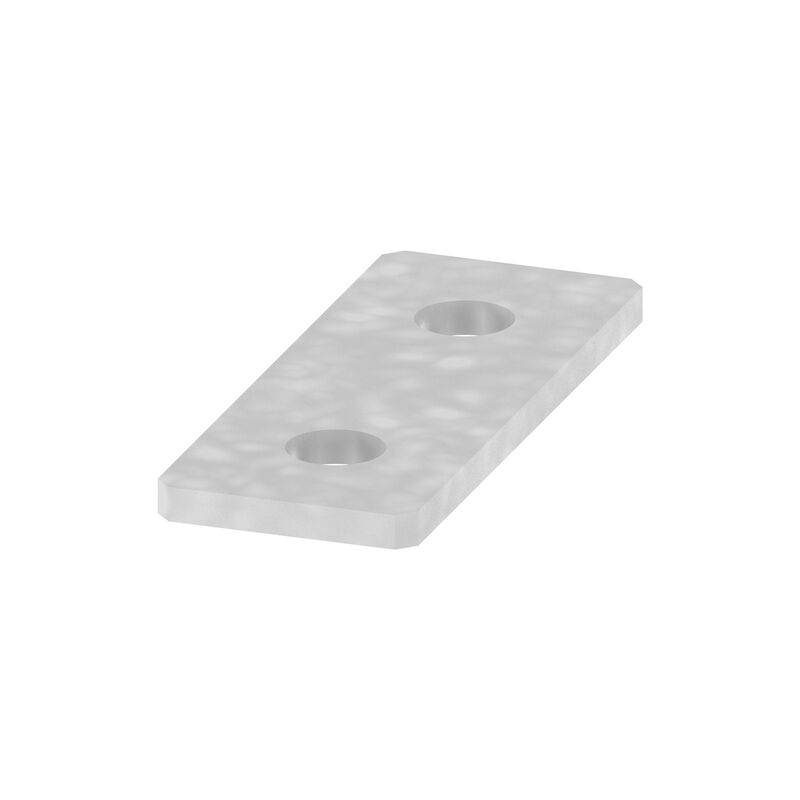

| Type | WQL 2 WFF120 |
| GTIN (EAN) | 4008190133771 |
| Qty. | 5 Styk |
| Depth | 4 mm |
| Depth (inches) | 0,157 inch |
| Height | 77 mm |
| Height (inches) | 3,031 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Net weight | 74,2 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Copper - zinc |
| Colour | grey |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 2 |
| Rated current, 2-pole | 269 A |
| Rated current, multi-pole | 309 A |
| Type | Cross-connector |
| Pitch in mm (P) | 42 mm |
| Installation advice | Direct mounting |
| Number of poles | 2 |
| Rated current | 269 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60176) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1065100000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1065100000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
