Egenskaber
| Version | Z-series, End plate, Partition plate |
| Order No. | 8670760000 |

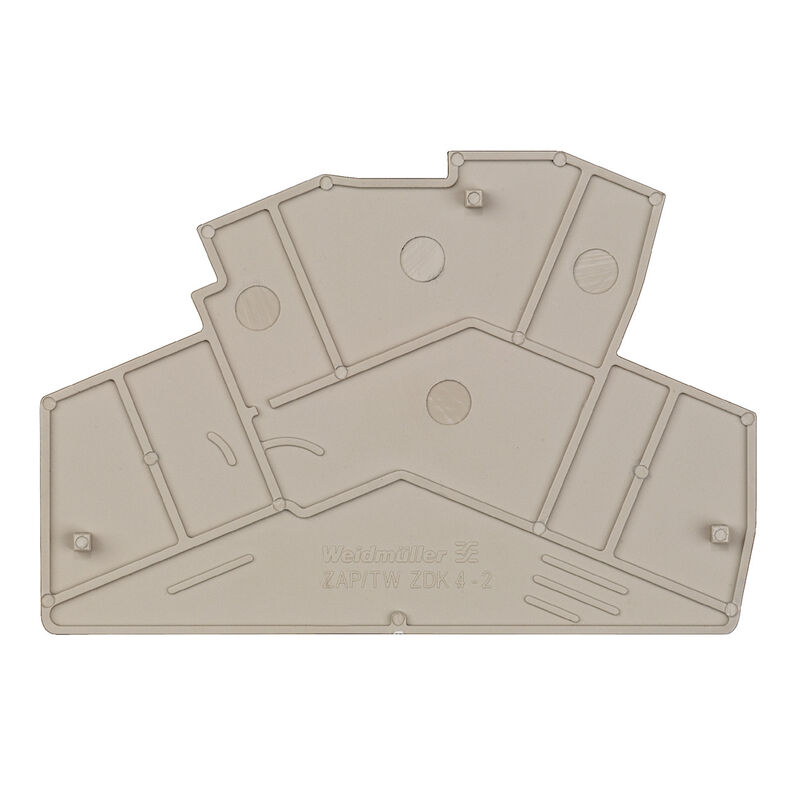

| Type | ZAP/TW ZDK4-2 |
| GTIN (EAN) | 4032248337415 |
| Qty. | 50 Styk |
| Depth | 52,68 mm |
| Depth (inches) | 2,074 inch |
| Height | 77,81 mm |
| Height (inches) | 3,063 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 3,63 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 |
| Continuous operating temp., max. | 120 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Snap-on | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data |
[CAD data -- 34008_ZAP-TW_ZDK_4-2_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38046)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66685) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8670760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8670760000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:8671050000Pakningsenhed:50 Styk
Z-series, PE terminal, Rated cross-section: 4 mm², Tension-clamp connection, green
-
Produkt ID:8670750000Pakningsenhed:50 Styk
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
-
Produkt ID:8671120000Pakningsenhed:50 Styk
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
-
Produkt ID:8671080000Pakningsenhed:50 Styk
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
-
Produkt ID:8670850000Pakningsenhed:50 Styk
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, blue
-
Produkt ID:8709760000Pakningsenhed:50 Styk
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
-
Produkt ID:8670520000Pakningsenhed:50 Styk
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 4 mm², Tension-clamp connection, dark beige
