Egenskaber
| Version | Z-series, Accessories, End plate, Partition plate |
| Order No. | 1933810000 |

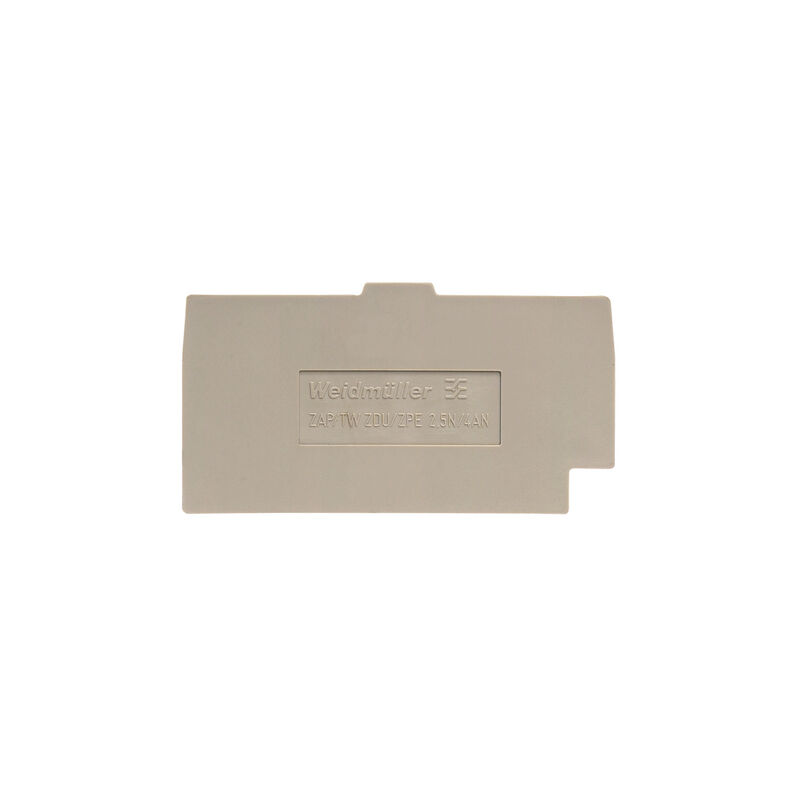

| Type | ZAP/TW ZDU/ZPE 2.5N/4AN |
| GTIN (EAN) | 4032248587148 |
| Qty. | 50 Styk |
| Depth | 54,75 mm |
| Depth (inches) | 2,156 inch |
| Height | 57,5 mm |
| Height (inches) | 2,264 inch |
| Width | 1,5 mm |
| Width (inches) | 0,059 inch |
| Net weight | 2,72 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 |
| Continuous operating temp., max. | 120 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46142) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1933810000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1933810000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1933780000Pakningsenhed:50 Styk
PE terminal, Tension-clamp connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
-
Produkt ID:1933750000Pakningsenhed:50 Styk
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Produkt ID:1933740000Pakningsenhed:50 Styk
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Produkt ID:1316890000Pakningsenhed:50 Styk
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
