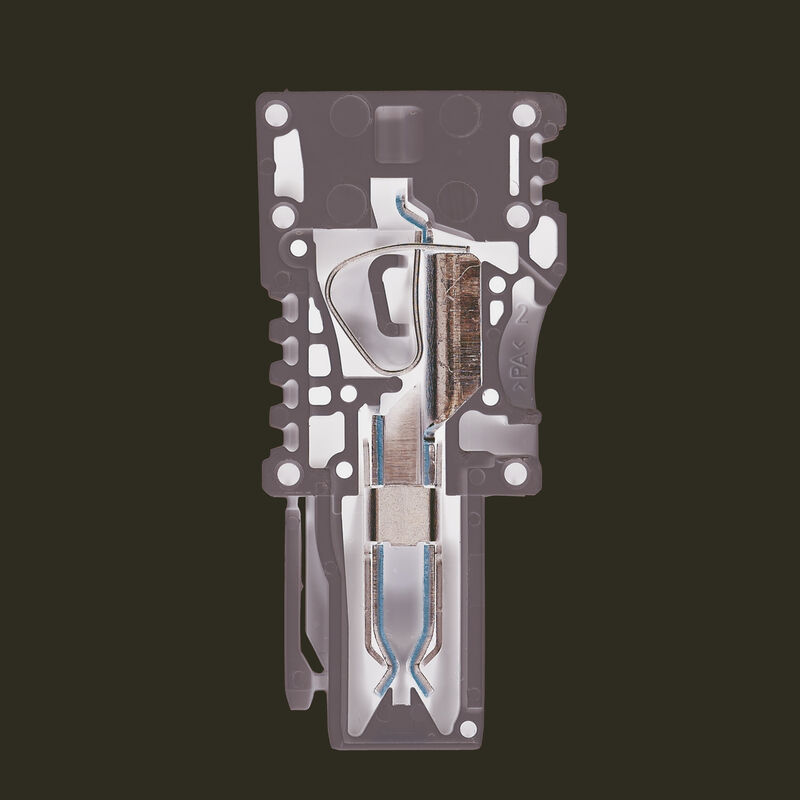

ZP 4/1AN ZA — Product image

Download datablad

ZP 4/1AN ZA

Z-series, Plug-in connector, Direct mounting

Produkt ID 1051940000

Egenskaber

General ordering data

Version	Z-series, Plug-in connector, Direct mounting
Order No.	1051940000
Type	ZP 4/1AN ZA
GTIN (EAN)	4032248804832
Qty.	50 Styk

Dimensions and weights

Depth	47,5 mm
Depth (inches)	1,87 inch
Height	22,5 mm
Height (inches)	0,886 inch
Width	6,5 mm
Width (inches)	0,256 inch
Net weight	6,64 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50
Continuous operating temp., max.	120

Environmental Product Compliance

REACH SVHC	/
RoHS Compliance Status	Compliant without exemption

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Plug pluggable With assembly peg Tension-clamp connection
End cover plate required	No
Number of levels	1
Number of clamping points per level	1
Levels cross-connected internally	No
PE connection	No

Additional technical data

Installation advice	Direct mounting
Open sides	closed
Type of mounting	Plugged

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0,13 mm²
Connection direction	top
Gauge to IEC 60947-1	A3
Number of connections	1
Stripping length	12 mm
Type of connection	Tension-clamp connection
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

CSA rating data

Certificate No. (CSA)	200039-1720292
Current size C (CSA)	28 A
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	10 AWG
Wire cross section min. (CSA)	26 AWG

Installation advice	Direct mounting
Number of poles	1
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26

Rated cross-section	4 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	32 A
Current at maximum wires	32 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1,02 W
Pollution severity	3

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	10 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	10 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size C (cURus)	28 A
Voltage size C (cURus)	600 V

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_44847)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1051940000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1051940000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [User Manual ZP 4](https://mdcop.weidmueller.com/mediadelivery/asset/900_229220)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002848
ETIM 7.0	EC002848
ETIM 8.0	EC002848
ETIM 9.0	EC002848
ECLASS 9.0	27-14-11-92
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-14-11-92
ECLASS 11.0	27-14-11-92
ECLASS 12.0	27-14-11-92
ECLASS 13.0	27-25-03-90
ECLASS 14.0	27-25-03-90

Approvals	![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
