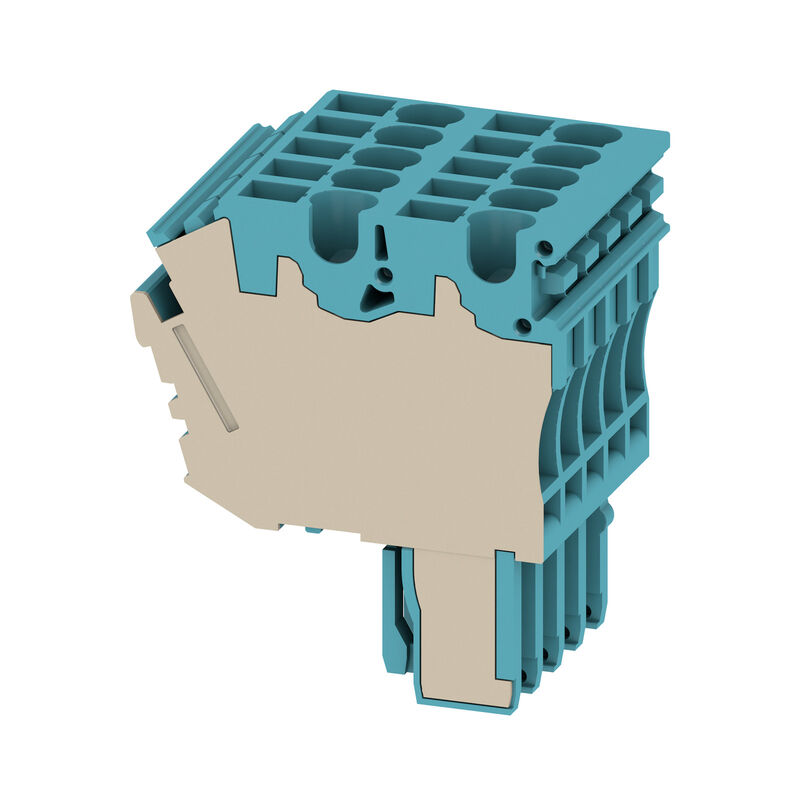

ZP 2.5/2AN/QV/5 BL

ZP 2.5/2AN/QV/5 BL

Z-series, Plug-in connector, Direct mounting

Ürün No. 2702470000
Veri sayfasını indir Ürün İndirmleri
İlgili ürünler 317
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Зажимаемые провода (расчетное соединение) General Rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Z-series, Plug-in connector, Direct mounting
Order No.
2702470000
Type
ZP 2.5/2AN/QV/5 BL
GTIN (EAN)
4050118711424
CPZ
20 adet

Dimensions and weights

Depth
41 mm
Depth (inches)
1,614 inch
Height
37 mm
Height (inches)
1,457 inch
Width
25 mm
Width (inches)
0,984 inch
Masa netto
27,4 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colori
blue
UL 94 flammability rating
V-0

System specifications

Version
Set of connectors
Cross-connector
pluggable
2-conductor connection
Tension-clamp connection
Piastra terminale (necessaria)
No
Numero di potenziali
5
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
Raccordement PE
No

Additional technical data

Istruzioni di montaggio
Direct mounting
Lati aperti
closed
Tipo di montaggio
Plugged

Зажимаемые провода (расчетное соединение)

Blade size
6 x 3,5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,13 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
top
Gauge to IEC 60947-1
A2
Number of connections
10
Stripping length
10 mm
Type of connection
Plug-in connection
Wire connection cross section AWG, max.
AWG 26
Wire connection cross section AWG, min.
AWG 12
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

General

Installation advice
Direct mounting
Number of poles
5
Standards
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 26
Wire connection cross section AWG, min.
AWG 12

Rating data

Sezione di dimensionamento
2,5 mm²
Tensione nominale
500 V
Tensione impulsiva di dim. rispetto al mors. adiacente
500 V
Tensione DC nominale
500 V
Corrente nominale
24 A
Current at maximum wires
24 A
Standards
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Tensione impulsiva di dimensionamento
6 kV
Tensione impulsiva di dim. rispetto al mors. adiacente
6 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
