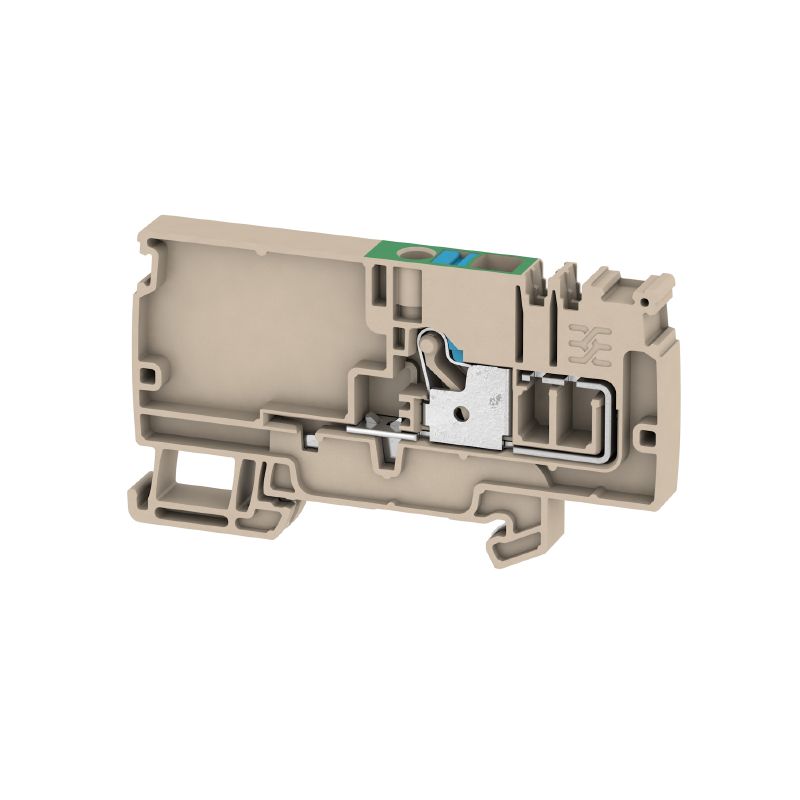

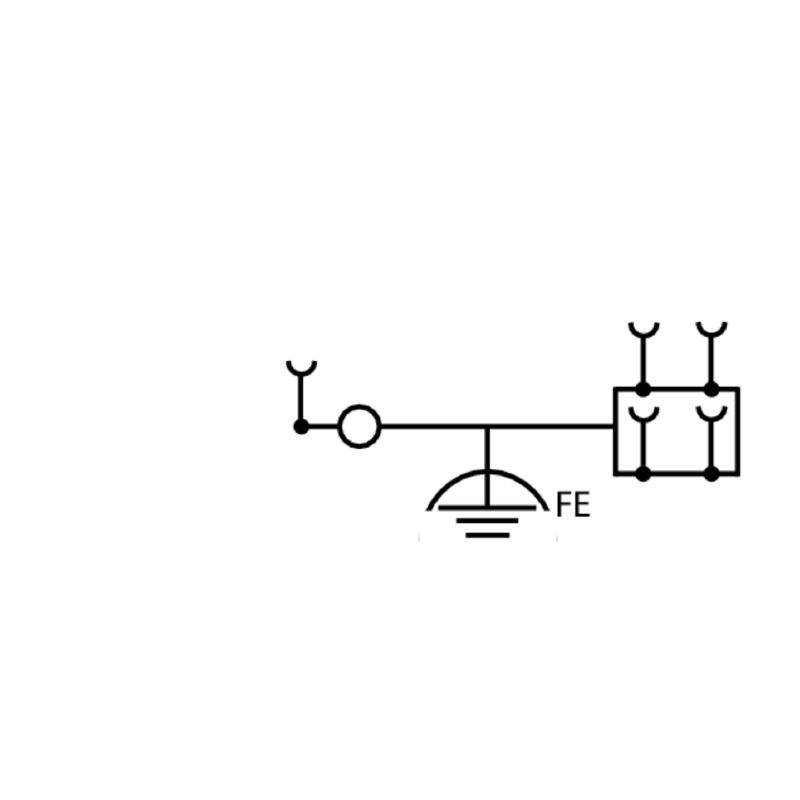

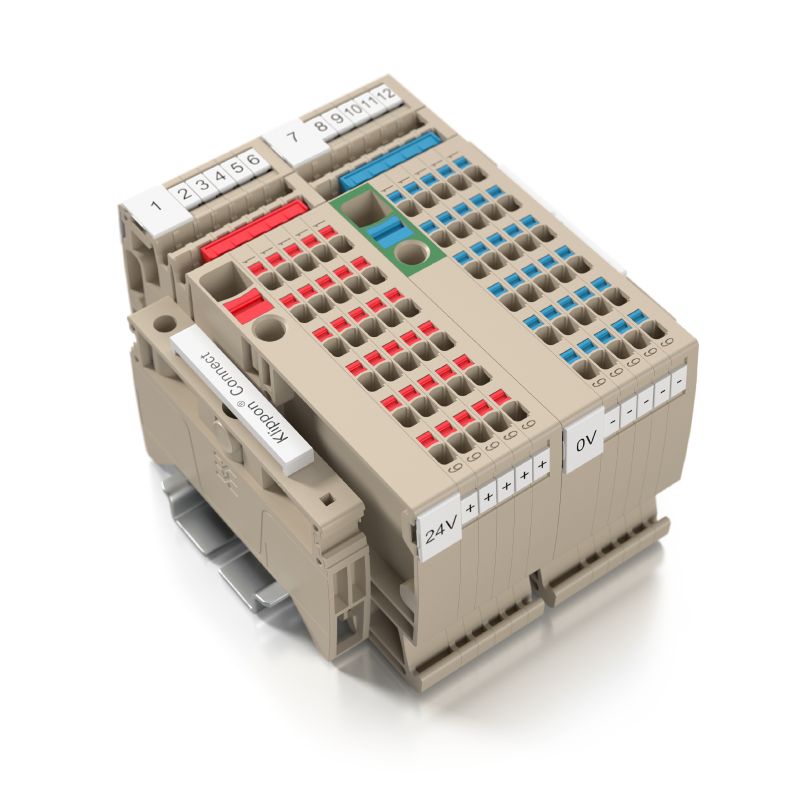

AAP11 6 FE

Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige

Item No. 1988140000

Properties

General ordering data

Version	Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
Order No.	1988140000
Type	AAP11 6 FE
GTIN (EAN)	4050118372960
Qty.	20 items

Dimensions and weights

Depth	47 mm
Depth (inches)	1.85 inch
Depth including DIN rail	48 mm
Height	85.5 mm
Height (inches)	3.366 inch
Width	8.1 mm
Width (inches)	0.319 inch
Net weight	15.55 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
Colour of operational elements	blue
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV17ATEX8030U
Certificate No. (IECEX)	IECEXTUR17.0015U
Wire cross section max. (ATEX)	6 mm²
Wire cross section max. (IECEX)	6 mm²
Marking EN 60079-7	Ex ec II C Gc
Ex 2014/34/EU label	II 2 G D

System specifications

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	1
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	Yes
Installation advice	Rail
Open sides	right
Snap-on	No
Type of fixing	Snap-on
Type of mounting	TS 35
With snap-in pegs	No

Conductors for clamping (additional connection)

Connection type, additional connection

PUSH IN

Conductors for clamping (rated connection)

Blade size	1.0 x 5.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0.34 mm²
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A5
Number of connections	1
Stripping length	12 mm
Tube length for twin wire-end ferrule	Tube length: min.: 10 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 0.5 mm² min.: 0.5 mm² max.: 1 mm² Tube length: min.: 10 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² nominal: 0.75 mm² max.: 2.5 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: nominal: 4 mm² min.: 1 mm² max.: 1.5 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 10 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 0.5 mm² min.: 0.5 mm² max.: 1 mm² Tube length: min.: 10 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² nominal: 0.75 mm² max.: 2.5 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: nominal: 4 mm² min.: 1 mm² max.: 1.5 mm² Tube length: min.: 10 mm max.: 18 mm Cross-section for conductor connection: min.: 6 mm² max.: 10 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: min.: 10 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 0.5 mm² min.: 0.5 mm² max.: 1 mm² Tube length: min.: 10 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² nominal: 0.75 mm² max.: 2.5 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: nominal: 4 mm² min.: 1 mm² max.: 1.5 mm² Tube length: min.: 10 mm max.: 18 mm Cross-section for conductor connection: min.: 6 mm² max.: 10 mm²
Twin wire-end ferrules, max.	1.5 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 22
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-70089609
Voltage size B (CSA)	300 V
Voltage size C (CSA)	300 V
Wire cross section max. (CSA)	8 AWG
Wire cross section min. (CSA)	22 AWG

General

Installation advice	Rail
Rail	TS 35
Standards	In accordance with IEC 60947-7-2
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 22

Rating data

Rated cross-section	6 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	41 A
Standards	In accordance with IEC 60947-7-2
Volume resistance according to IEC 60947-7-x	0.78 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	1.31 W
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	8 AWG
Conductor size Factory wiring min. (cURus)	22 AWG
Conductor size Field wiring max. (cURus)	8 AWG
Conductor size Field wiring min. (cURus)	22 AWG
Voltage size B (cURus)	300 V
Voltage size C (cURus)	300 V

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58096) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58129) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_38624) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58166) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89283) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89284) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [BV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152184) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178458) [20-AV4BO-0271U](https://mdcop.weidmueller.com/mediadelivery/asset/900_318072) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65548)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1988140000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1988140000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1988140000&norm=0)
Tender specification	[Klippon® Connect 1988140000 EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_75854) [Klippon® Connect 1988140000 DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_75859)
User Documentation	[NTI AAP11](https://mdcop.weidmueller.com/mediadelivery/asset/900_85508) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [AAP Terminal Blocks for control voltage distribution](https://mdcop.weidmueller.com/mediadelivery/asset/900_102992) [User Manual AXC PE](https://mdcop.weidmueller.com/mediadelivery/asset/900_229202)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01
ECLASS 14.0	27-25-01-01

Approvals

Approvals	![BURVER](/picture/BURVER.gif) ![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![IECEXTUR](/picture/IECEXTUR.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif) ![KOSHAEX](/picture/KOSHAEX.gif) ![TUEVNATEX](/picture/TUEVNATEX.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
