Properties

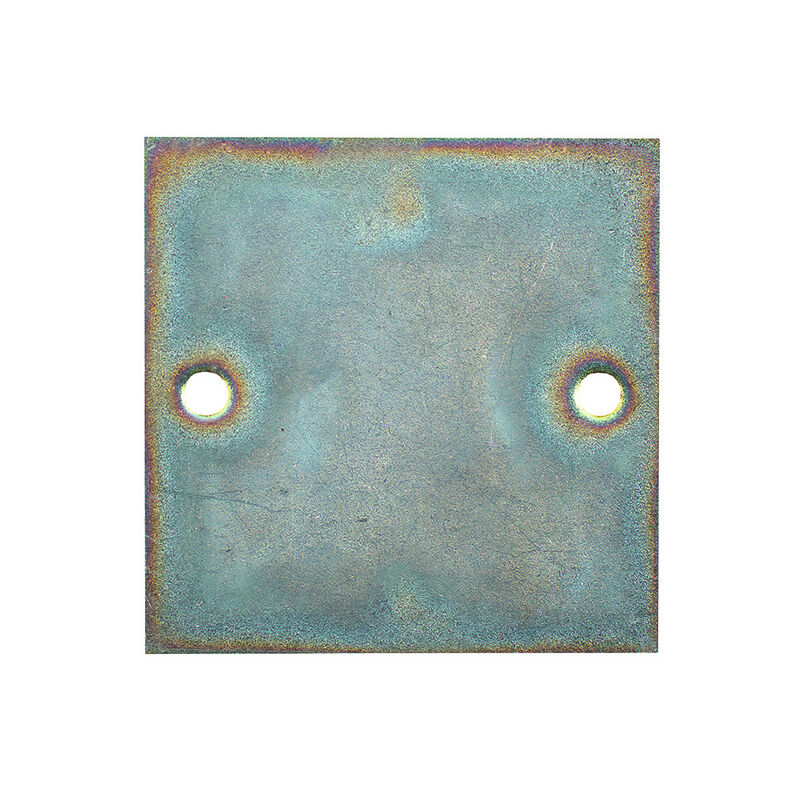

| Version | Heavy-duty connectors, Accessories, cover plate, Size: 1, metal, Natural |
| Order No. | 9457300000 |
| Type | ABD-1-STAHLBLECH |
| GTIN (EAN) | 4032248173853 |
| Qty. | 50 items |
| Width | 40 mm |
| Width (inches) | 1.575 inch |
| Length | 40 mm |
| Length (inches) | 1.575 inch |
| Diameter | 3.5 mm |
| Net weight | 26.44 g |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72315) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9457300000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9457300000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9457300000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-92 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ROHS | Conform |
