Properties
| Version | Current-measuring transducer, Limit value monitoring, Input : 0…1/5/10 A, Analogue output, Relay output, Power cable can be connected to the terminals |
| Order No. | 2489910000 |
| Type | ACT20P-CML-10-AO-RC-P |
| GTIN (EAN) | 4050118499940 |
| Qty. | 1 items |
| Depth | 114 mm |
| Depth (inches) | 4.488 inch |
| Height | 127.1 mm |
| Height (inches) | 5.004 inch |
| Width | 17.5 mm |
| Width (inches) | 0.689 inch |
| Net weight | 141 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...60 °C |
| Humidity | 5...95 %, no condensation |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2f6dd957-421a-46db-a0c2-cf1609156924 |
| Input frequency | AC: 15…400 Hz (true root mean square) |
| Input measurement range |
configurable
0…1/5/10 A AC (RMS) or DC max. peak current 10 × IInput (1 s) For DC current measurement (AA): Current direction display at the output (-/+ analog value) |
| Input signal | Power cable can be connected to the terminals |
| Number of inputs | 1 |
| Overload behaviour | Max. peak current: 10 × IInput for 1s |
| Load impedance current | ≤ 600 Ω |
| Type |
active
connected control must be passive |

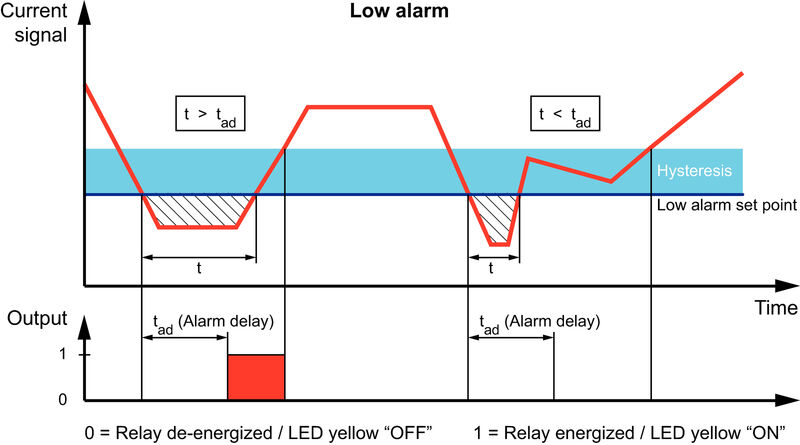

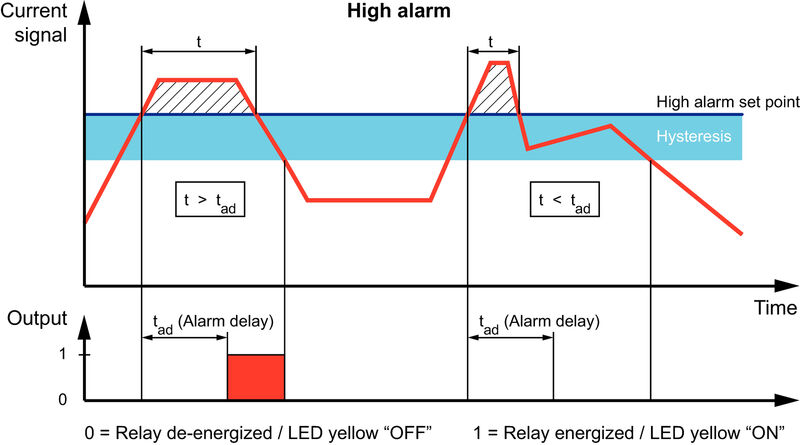

| Alarm function |
Surge current
Under-current Alarm limit setting: 2 - 105 % Hysteresis 5% / 10% Alarm delay: 0…10 s |
| Continuous current | 2 × I Input |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 24 V |
| Number of digital outputs | 1 |
| Rated switching current | 2 A |
| Type |
Relay, 1 CO contact
normal / inverse adjustment |
| Load resistance current | ≤ 600 Ω |
| Load resistance voltage | ≥ 10 kΩ |
| Number of analogue outputs | 1 |
| Output current |
Adjustable
0...20 mA 4...20 mA -20…+20 mA |
| Output voltage |
Adjustable
0...10 V 2…10 V 0...5 V 1...5 V -5…+5 V -10...+10 V |
| Transmit function | direct or inverted |
| Type (analogue output) | Voltage and current output (configurable) |
| Accuracy |
≤ ±0.3 % @ 1 A / 5 A
≤ ±0.6 % @ 10 A |
| Configuration | DIP switch and potentiometer |
| Galvanic isolation |
4-way isolator;
between input ⁄ output ⁄ supply ⁄ relay |
| Power consumption, max. | 2.2 W |
| Protection degree | IP20 |
| Rail | TS 35 |
| Step response time |
≤ 300 ms (RMS)
≤ 60 ms (AA) |
| Temperature coefficient |
≤ ±100 ppm⁄K @ -25…+55 °C
≤ ±200 ppm/K @ +55…+70 °C |
| Voltage supply | 16,8 V…31,2 V |
| EMC standards | EN 61326-1 |
| Galvanic isolation |
4-way isolator;
between input ⁄ output ⁄ supply ⁄ relay |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Insulation voltage | 4 kVeff / 1 min. |
| Pollution severity | 2 |
| Rated voltage | 300 V ACrms |
| Surge voltage category | III |
| Test voltage | 4 kV |
| Type of connection | PUSH IN |
| Tightening torque, min. | 0.4 Nm |
| Tightening torque, max. | 0.6 Nm |
| Clamping range, rated connection | 2.5 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0.2 mm² |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.2 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.2 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Product information |

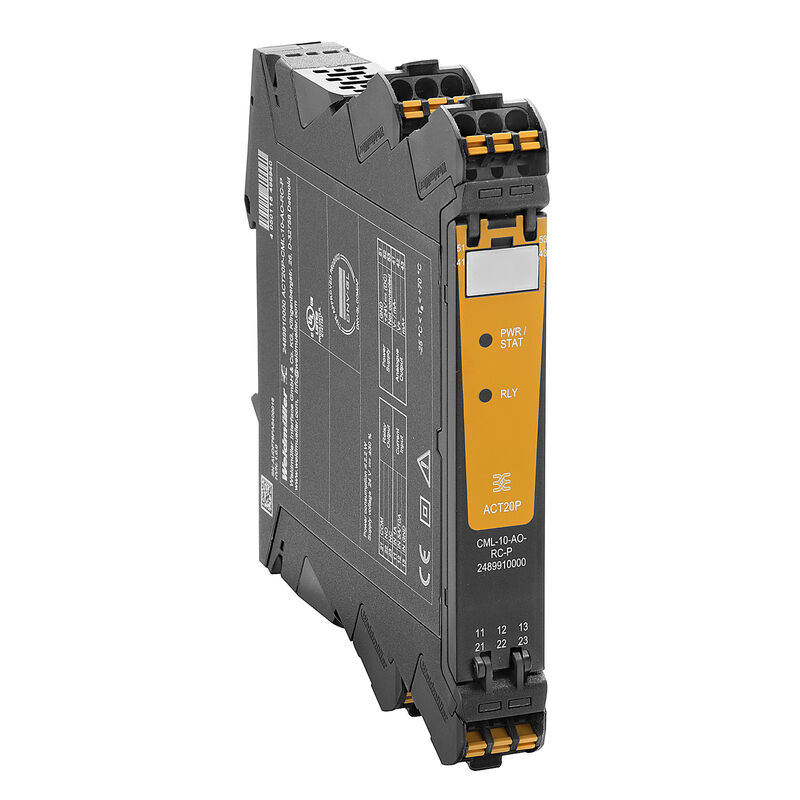

The device ACT20P-CML-10-AO-RC-P measures and monitors AC and DC currents of up to 10 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes.
The device features an integrated limit value monitoring function with an adjustable switching threshold, lag and hysteresis, as well as a relay output. Features
|
| Approval/Certificate/Document of Conformity |
[Certification DNV GL](https://mdcop.weidmueller.com/mediadelivery/asset/900_152118)
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35553) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66249) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2489910000) |

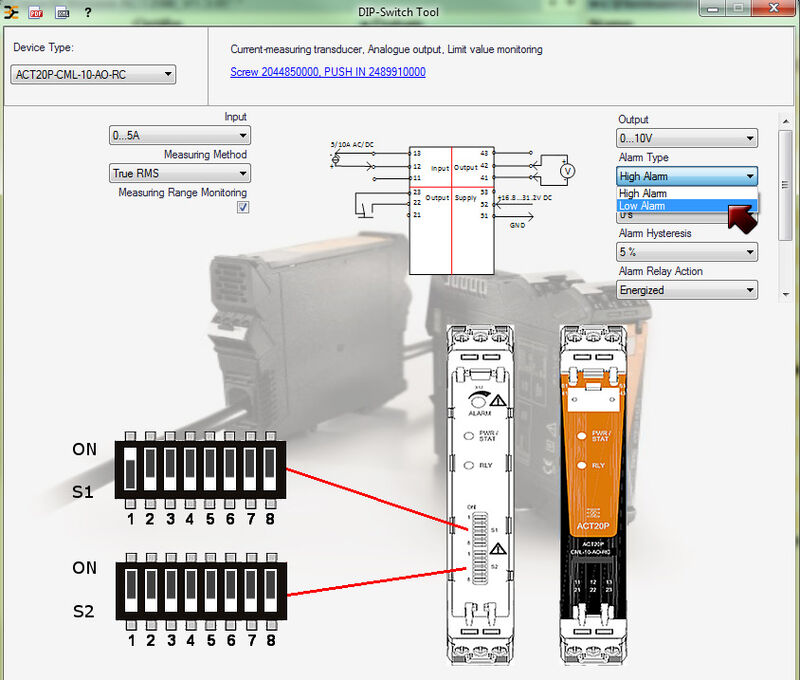

| Software | [DIP switch configuration tool](https://mdcop.weidmueller.com/mediadelivery/asset/900_35389) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_261020) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002475 |
| ETIM 7.0 | EC002475 |
| ETIM 8.0 | EC002475 |
| ETIM 9.0 | EC002475 |
| ECLASS 9.0 | 27-21-01-23 |
| ECLASS 9.1 | 27-21-01-23 |
| ECLASS 10.0 | 27-21-01-23 |
| ECLASS 11.0 | 27-21-01-23 |
| ECLASS 12.0 | 27-21-01-23 |
| ECLASS 13.0 | 27-21-01-23 |
| ECLASS 14.0 | 27-21-01-23 |
| Approvals |   |
| Approvals | CULUS; |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
