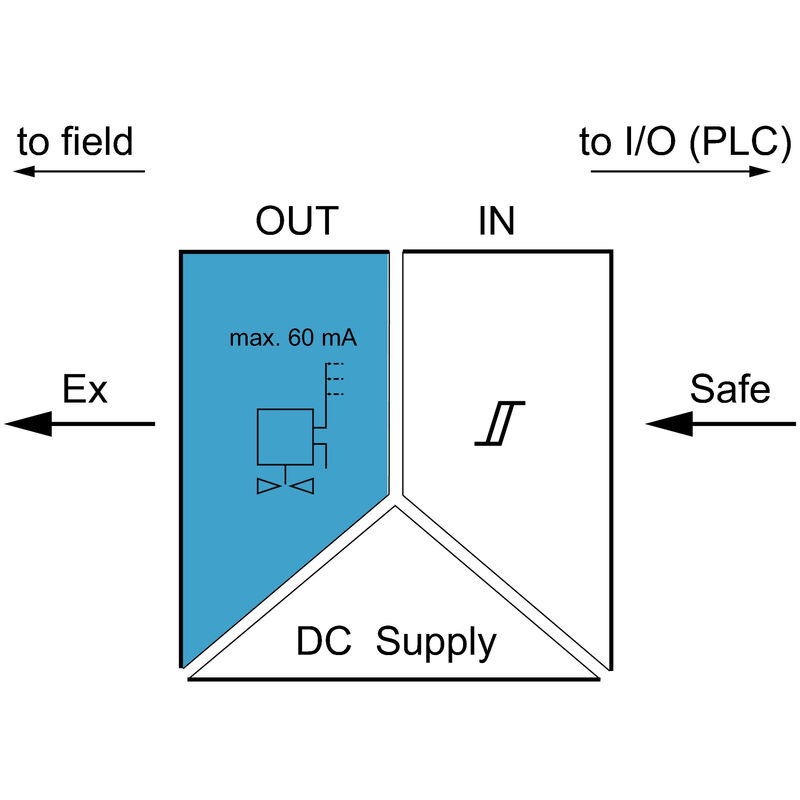

Block diagram
ACT20X-SDI-HDO-H-S
ACT20X-SDI-HDO-H-S
ACT20X-SDI-HDO-H-S

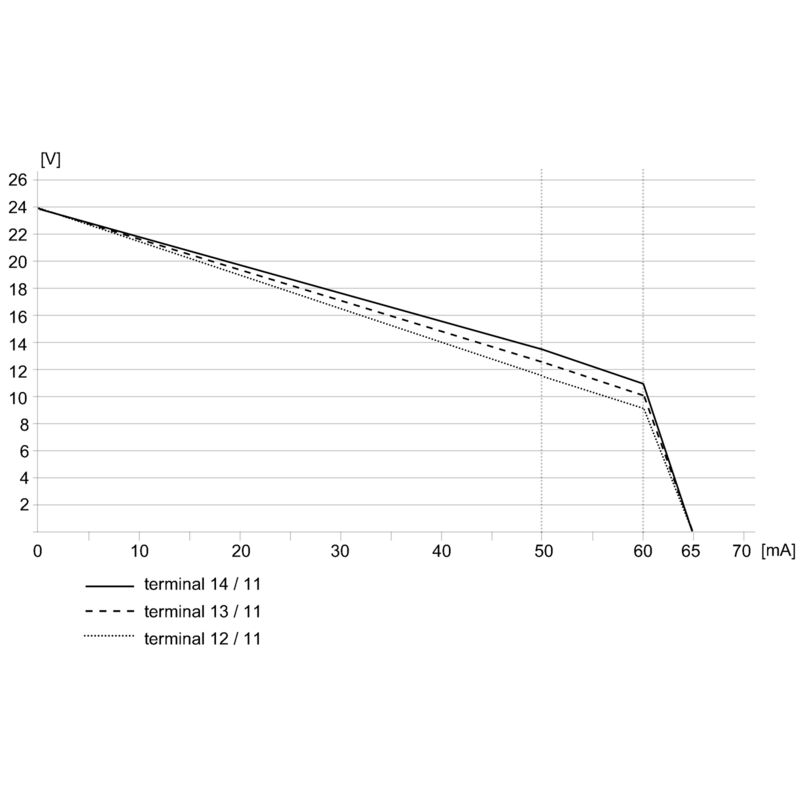

Derating curve

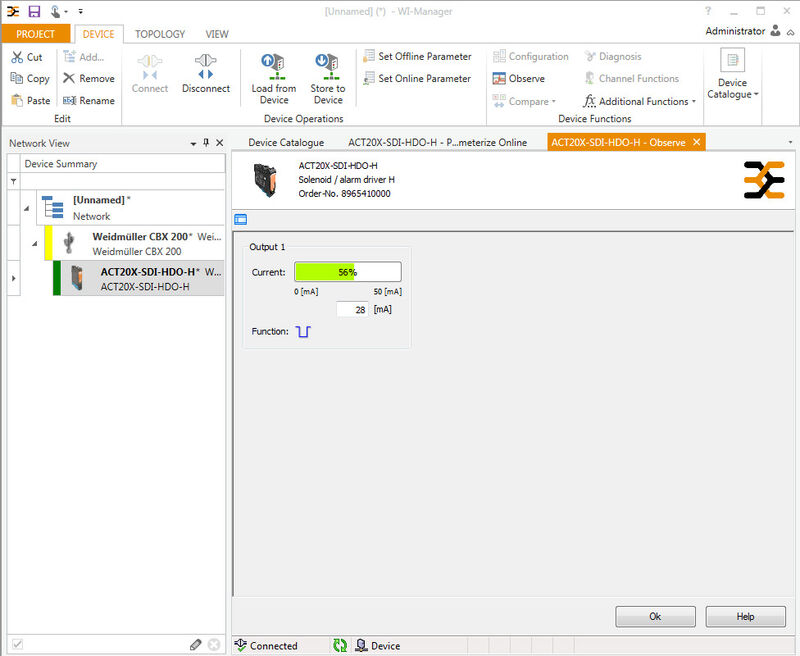

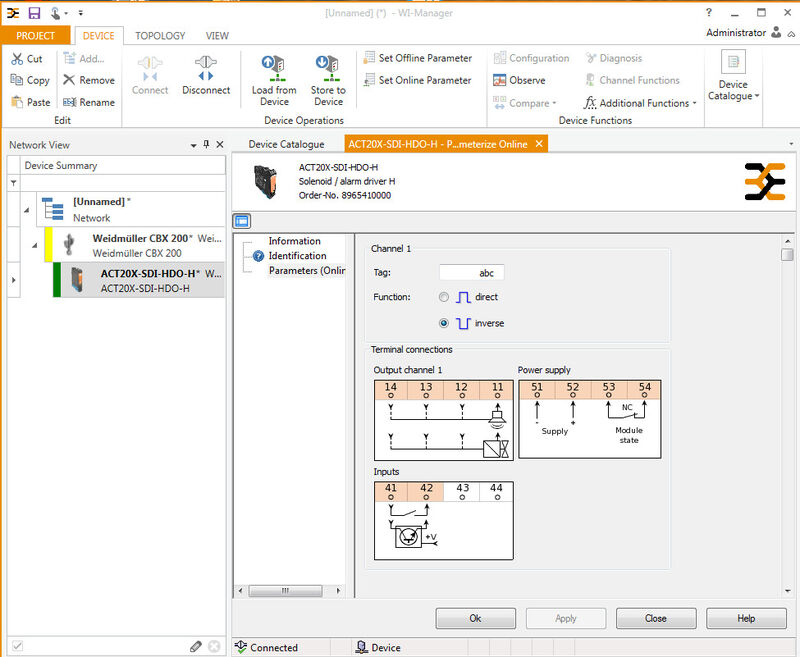

screenshot of "observe" with FDT2 / DTM software
ACT20X-SDI-HDO-H-S
Dimensioned drawing
ACT20X-SDI-HDO-H-S
Derating curve
Removable terminals with coding

ACT20X-SDI-HDO-H-S

EX signal isolating converter, Safe-input: relay, Ex-output: Opto module, High-current, 1-channel, Output current : max. 60 mA

Item No. 8965410000
Download data sheet Engineering Support Software Support Product Downloads
Related products 6
General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Assembling Input Output Digital output Alarm output General specifications Insulation coordination Data for Ex applications (ATEX) Safety-related basic specifications Safety-related specifications Low demand mode Connection data Guarantee Classifications Tender specification sheets Approvals

General ordering data

Version
EX signal isolating converter, Safe-input: relay, Ex-output: Opto module, High-current, 1-channel, Output current : max. 60 mA
Order No.
8965410000
Type
ACT20X-SDI-HDO-H-S
GTIN (EAN)
4032248785025
Qty.
1  items

Dimensions and weights

Depth
113.6  mm
Depth (inches)
4.472  inch
Height
119.2  mm
Height (inches)
4.693  inch
Width
22.5  mm
Width (inches)
0.886  inch
Net weight
170  g

Temperatures

Storage temperature
-20 °C...85 °C
Operating temperature
-20 °C...60 °C
Humidity
0...95 % (no condensation)

Probability of failure

SIL PAPER
[SIL certificate](PDF/Cert_Weidmueller_070902_P0002_C004_V2R1.pdf)
SIL in compliance with IEC 61508
2
MTBF
175  a
SFF
91  %

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Assembling

Mounting position
horizontal or vertical
Rail
TS 35
Type of mounting
Rail
Snap mounting support rail

Input

Input resistance, voltage
3.5 kΩ
Input voltage
≤ 28 V DC
Trigger level low: ≤ 2.0 V DC (NPN), ≤ 8.0 V DC (PNP)
Trigger level high: ≥ 4.0 V DC (NPN), ≥ 10.0 V DC (PNP)
Number of inputs
1
Type
NPN, PNP transistor, switching signal [input safe-side valve component]

Output

Output current
max. 60 mA
Output values
  • Current:
    • max.:
      60 mA
  • Voltage:
    • min.:
      9 V
  • Current:
    • max.:
      50 mA
  • Voltage:
    • min.:
      11.5 V
  • Current:
    • max.:
      60 mA
  • Voltage:
    • min.:
      10 V
  • Current:
    • max.:
      50 mA
  • Voltage:
    • min.:
      12.5 V
  • Current:
    • max.:
      60 mA
  • Voltage:
    • min.:
      11 V
  • Current:
    • max.:
      50 mA
  • Voltage:
    • min.:
      13.5 V
Output values
depending on terminal assignment: 9 V @ 60 mA / 11.5 V @ 50 mA / 10 V @ 60 mA / 12.5 V @ 50 mA / 11 V @ 60 mA / 13.5 V @ 50 mA
Output values
depending on terminal assignment
Residual ripple (current loop)
<40 mVeff
Type
intrinsically safe circuit
digital, output = input
direct or inverse (configurable)

Digital output

Max. switching frequency
20 Hz

Alarm output

Alarm function
No supply voltage
Device error
Continuous current
≤ 0.5 A AC / 0.3 A DC (safe zone)
≤ 0,5 A AC / 1 A DC (zone 2)
Nominal switching voltage
≤ 125 V AC / 110 V DC (safe area)
≤ 32 V AC / 32 V DC (zone 2)
Power rating
≤ 62.5 VA / 32 W (safe area)
≤ 16 VA / 32 W (Zone 2)
Type
Status relay
1 NC (voltage-free)

General specifications

Configuration
With FDT/DTM software
Requires configuration adapter 8978580000 CBX200 USB
Humidity
0...95 % (no condensation)
Operating altitude
≤ 2000 m
Power consumption
≤ 2.5 W
Protection degree
IP20
Step response time
10 ms
Type of connection
Screw connection
Voltage supply
19.2…31.2 V DC

Insulation coordination

EMC standards
EN 61326-1
Insulation voltage
2.6 kV (input / output)
Rated voltage
300 V
Standards
EN 61010-1

Data for Ex applications (ATEX)

Current I0
≤ 135 mA
Installation location
Device installed in safe area, zone 2
Marking
II (1) G [Ex ia Ga] IIC/IIB/IIA
II (1) D [Ex ia Da] IIIC
I (M1) [Ex ia Ma] I
Power P0
≤ 0.77 W
Voltage U0
28 V DC

Safety-related basic specifications

Description of the "safe state"
de-energized (relay output)
Device type
B
Diagnostic test interval
10  s
Tproof
4  a
Total failure rate for safe detected failures (λSD)
0  FIT
Hardware fault tolerance (HFT)
0
Safety category
SIL 2
Safe Failure Fraction (SFF)
91  %
Mean Time To Repair (MTTR)
24  h
Total failure rate for safe undetected failures (λSU)
480  FIT
Total failure rate for dangerous detected failures (λDD)
61  FIT
Total failure rate for dangerous undetected failures (λDU)
46  FIT
Probability of outage PFH
4.6 x 10-8 h-1
Demand mode
High
Demand rate
1,000  s
Demand response time
<10 ms (opto output)

Safety-related specifications Low demand mode

Average Probability of Failure on Demand (PFDavg)
2.92 x 10-4 (Tproof = 1 year)
4.84 x 10-4 (Tproof = 2 year)
1.06 x 10-4 (Tproof = 5 year)

Connection data

Type of connection
Screw connection
Tightening torque, min.
0.4  Nm
Tightening torque, max.
0.6  Nm
Clamping range, rated connection
2.5  mm²
Clamping range, min.
0.25  mm²
Clamping range, max.
2.5  mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12

Guarantee

Time interval
3 years

Classifications

ETIM 6.0
EC002653
ETIM 7.0
EC002653
ETIM 8.0
EC002653
ETIM 9.0
EC002653
ETIM 10.0
EC002653
ECLASS 9.0
27-21-01-20
ECLASS 9.1
27-21-01-20
ECLASS 10.0
27-21-01-20
ECLASS 11.0
27-21-01-20
ECLASS 12.0
27-21-01-20
ECLASS 13.0
27-21-01-20
ECLASS 14.0
27-21-01-20
ECLASS 15.0
27-21-01-20

Tender specification sheets

Long specification

Ex valve control modules, 60 mA ignition protection group IIB
1-channel valve control modules in 22.5 mm width with external power supply,
to control valves in Ex areas zone 0,1,2 from the safe zone.
The module comes with full three-way, 2.6 kV separation.
On the input side, NPN/PNP switching sensors can be connected.
On the output side, there are three 60 mA driver steps for ignition protection group IIB with
a minimum driver voltage of 9 V/11 V or 12.5 V available optionally.
 An additional alarm contact ("a" contact) reports status and error messages
The module can be configured using standard FDT/DTM software.

Add-on housing for TS35 DIN rail installation
Dimensions: L/W/H 119.2/ 22.5/ 113.6
Screw connection/ nominal cross-section 2.5 mm2
Protection degree: IP20   input                         NPN, PNP switch signal                                       max. 28 VDC                                     output Ex                  Imax 60 mA @ ignition protection group IIB                                      U with load min. 9 V / min. 11 V / min. 12.5 V                                      U without load min. 24 V Alarm output relay 1 NO contact                                      250 VAC / 30 VDC @ 2A safe zone                                     32 VAC @ 0.5 A / 32 VDC @ 1 A zone 2Auxiliary power                   19 to 31.2 VDCPower loss approx. 1.8 W
Ambienttemperature range -20 °C to +60 °C


Secure isolation                   EN 61010, 3-way isolation up to 2.6 kV AC/DC of all circuits against each other
Working voltage                     300 V AC/DC at overvoltage category II and pollution degree 2
Approvals cULus, ATEX IECEX, FM

ATEX marking II 3 G Ex nA nC IIC T4
ATEX characteristic data U0  = 28 V DC
                                      I0  = 125 mA
                                      P0 = 0.77 W

Type                                                             ACT20X-SDI-HDO-H-S


Short specification

Ex valve control modules, 60 mA ignition protection group IIB
1-channel valve control modules in 22.5 mm width with external power supply,
to control valves in Ex zones 0,1,2 from the safe zone.
The module comes with full three-way, 2.6 kV separation.
On the input side, NPN/PNP switching sensors can be connected.
On the output side, there are three 60 mA driver steps for ignition protection group IIB with
a minimum driver voltage of 9 V/11 V or 12.5 V available optionally.
An additional alarm contact ("a" contact) reports status and error messages
The module can be configured using standard FDT/DTM software.
