Properties

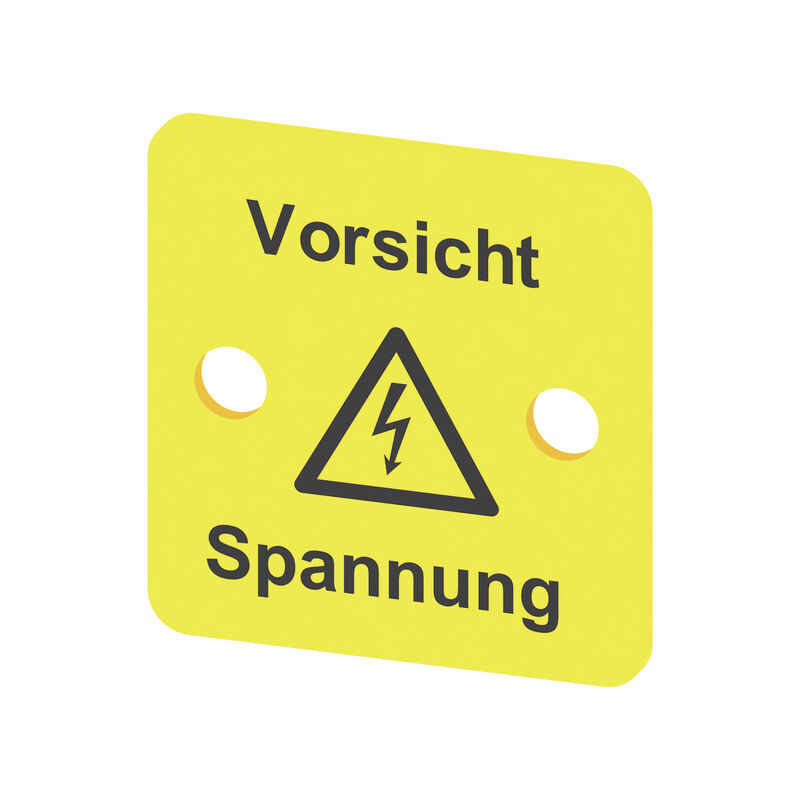

| Version | Terminal cover, yellow, PVC, Height: 25 mm, Width: 24 mm, Depth: 1 mm, V-2 |
| Order No. | 0297700000 |
| Type | AD 3 SAK6N |
| GTIN (EAN) | 4008190086787 |
| Qty. | 50 items |
| Depth | 1 mm |
| Depth (inches) | 0.039 inch |
| Height | 25 mm |
| Height (inches) | 0.984 inch |
| Width | 24 mm |
| Width (inches) | 0.945 inch |
| Net weight | 0.76 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PVC |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0297700000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
Accessories
-
Item No.:0128900000Packaging unit:100 PC
Mounting screw (Terminal), 3.00 mm, Polyamide 66, Depth: 4.8 mm, Width: 4.8 mm, Height: 22 mm
Terminal BlocksAccessoriesMounting supportScrews
