Properties

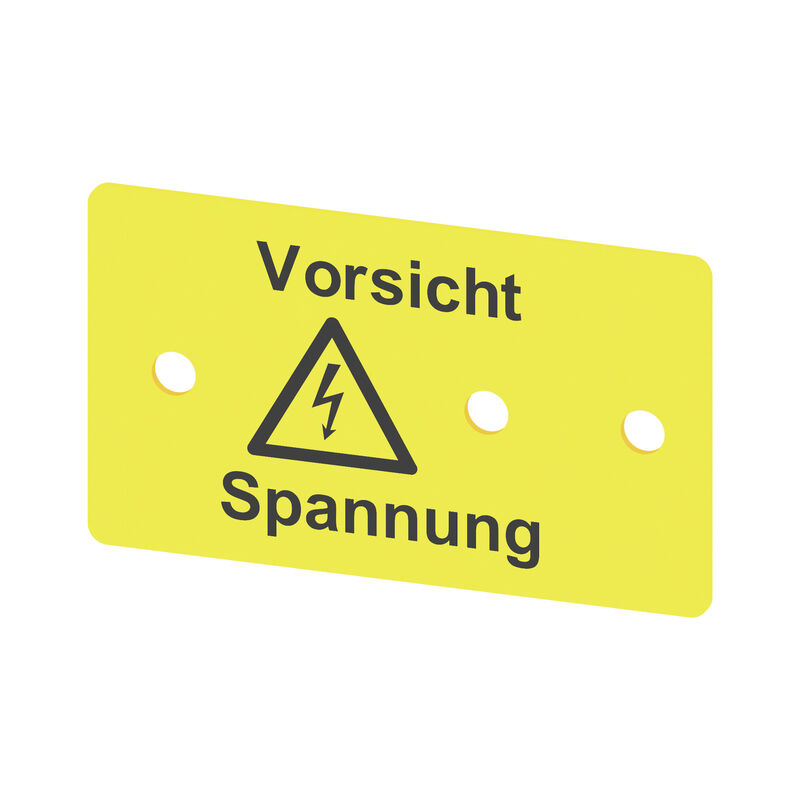

| Version | Terminal cover, PVC, yellow, Height: 37 mm, Width: 63.6 mm, Depth: 1 mm |
| Order No. | 0576700000 |
| Type | AD 4 SAK35N |
| GTIN (EAN) | 4008190119881 |
| Qty. | 50 items |
| Depth | 1 mm |
| Depth (inches) | 0.039 inch |
| Height | 37 mm |
| Height (inches) | 1.457 inch |
| Width | 63.6 mm |
| Width (inches) | 2.504 inch |
| Net weight | 2.76 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PVC |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59228) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0576700000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0576700000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0576700000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ROHS | Conform |
Accessories
Terminal BlocksAccessoriesMounting supportScrews
Is accessory of
-
Item No.:0555760000Packaging unit:20 PC
Feed-through terminal block, Screw connection, 35 mm², 800 V, 125 A, Number of connections: 2
-
Item No.:0550660000Packaging unit:20 PC
Feed-through terminal block, Screw connection, 35 mm², 800 V, 125 A, Number of connections: 2
Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesTS 32Feed-through terminal blocks1-tier35 mm²
