Properties
| Version | Electronic load monitoring, 6 A, 24 V DC |
| Order No. | 2080500000 |
| Type | AMG ELM-6F |
| GTIN (EAN) | 4050118419528 |
| Qty. | 1 items |
| Depth | 96.5 mm |
| Depth (inches) | 3.799 inch |
| Height | 125 mm |
| Height (inches) | 4.921 inch |
| Width | 6.1 mm |
| Width (inches) | 0.24 inch |
| Net weight | 40 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | a7fff16c-85aa-4fb0-a206-7be03f41b0b7 |
| Current consumption (full load) | IOUT +30 mA |
| Current consumption (idle) | 25 mA |
| DC input voltage range | 18…30 V DC |
| Input fuse (internal) | Yes |
| max. admissible residual ripple at the input | 100 mVpp |
| Rated input voltage | 24 V DC |
| Surge protection | Suppressor diode |
| Adjustable rated current | No |
| Capacitive load | 15,000 µF |
| Connection system | PUSH IN |
| Rated current | 6 A |
| Surge protection | Suppressor diode |
| Switch-on delay | 1 s |

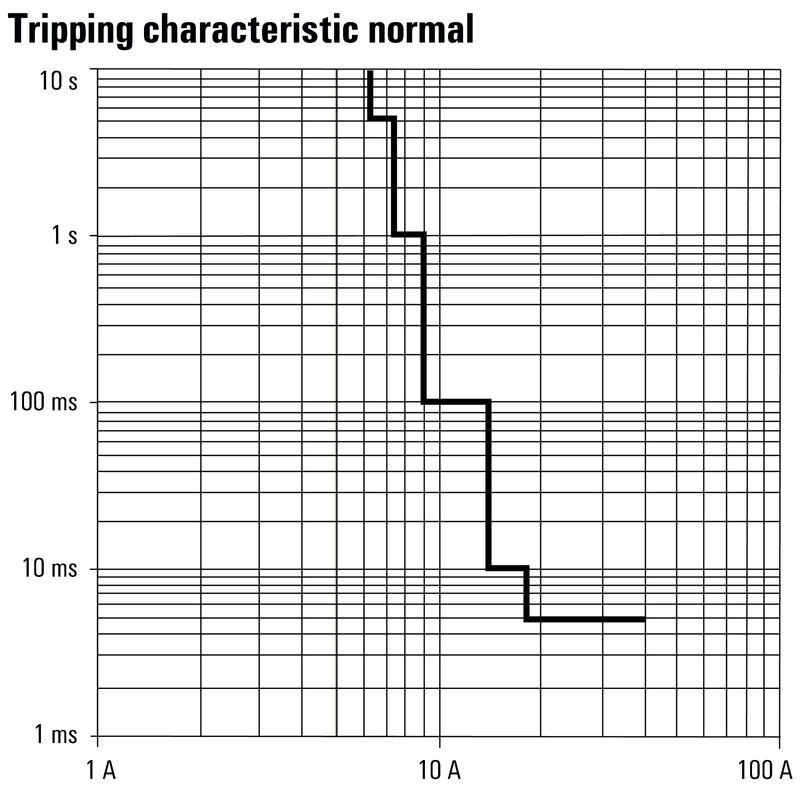

| Triggering characteristic | see characteristic curve |
| Conformal coating | No |
| Function key |
Activation time <3s
Reset ON |
| MTTF |
|
| Power loss, idling | 415 mW |
| Power loss, nominal load | 1,075 mW |
| Protection degree | IP20 |
| Relay to activate the output | No |
| Surge voltage category | III |
| Surge voltage category | III |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 26 AWG |
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, flexible , min. | 0.14 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Conductor cross-section, rigid , min. | 0.14 mm² |
| Connection system | PUSH IN |
| Number of terminals | 2 (+ / -) |
| Screwdriver blade | 0.6 x 3.5 |
| LED green | Operation (failure-free) |
| Red LED |
Load monitoring has disconnected
Load monitoring has triggered (flashing) Internal error (rapid flashing) |
| Certificate no. (cULus) | E258476 |
| Institute (cULus) | CULUS |
| Approval/Certificate/Document of Conformity |
[MaxGuard AMG ELM EX UL 61010-1 .pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306121)
[MaxGuard AMG ELM UL 508 CSA C22.2.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306123) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_68860) [UK Conformity Assessed](https://mdcop.weidmueller.com/mediadelivery/asset/900_314087) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65882) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2080500000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2080500000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2080500000&norm=0) |
| Product Change Notification | [Release-Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_308032) |
| User Documentation |
[Manual_maxGUARD](https://mdcop.weidmueller.com/mediadelivery/asset/900_43594)
[Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_68836) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002057 |
| ETIM 7.0 | EC002057 |
| ETIM 8.0 | EC002057 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-10-16 |
| ECLASS 9.1 | 27-37-10-16 |
| ECLASS 10.0 | 27-37-10-16 |
| ECLASS 11.0 | 27-37-10-16 |
| ECLASS 12.0 | 27-37-10-16 |
| ECLASS 13.0 | 27-37-10-16 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
