Properties
| Version | Supply module, 24 V DC |
| Order No. | 2082530000 |

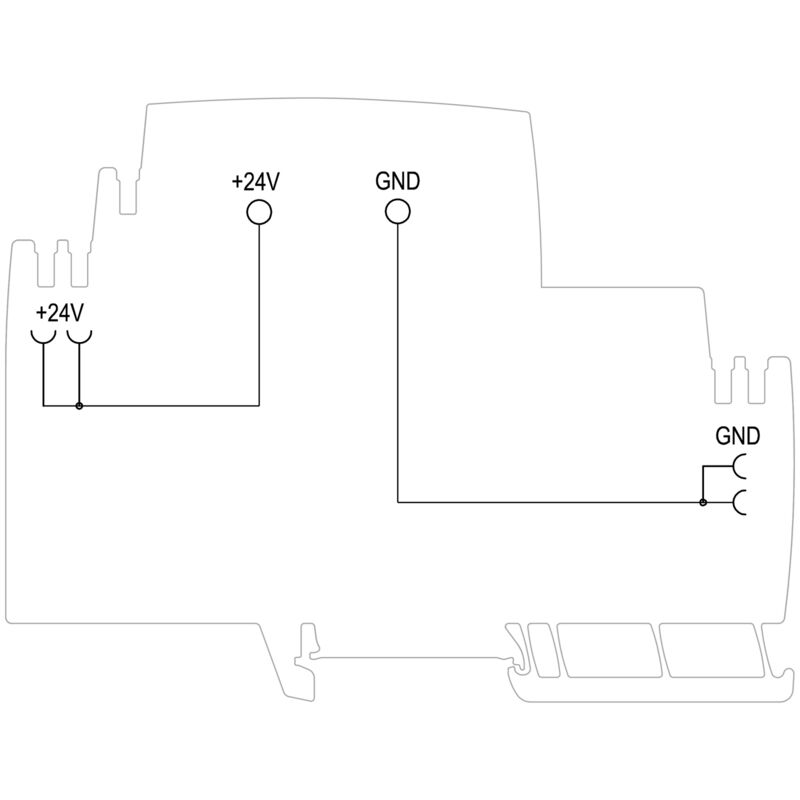

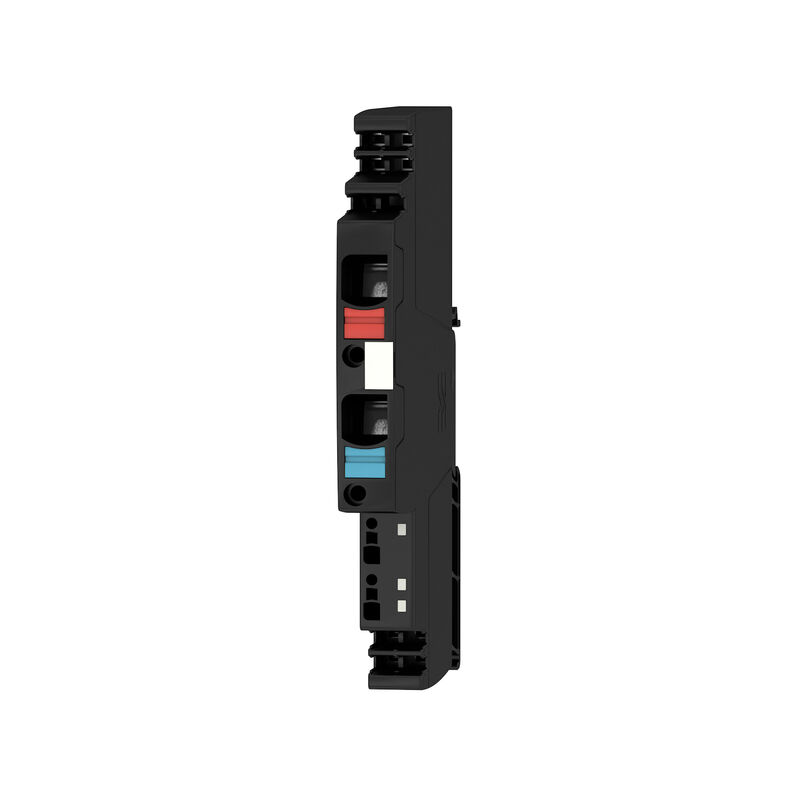

| Type | AMG FIM-0 EX |
| GTIN (EAN) | 4050118419702 |
| Qty. | 1 items |
| Depth | 96.5 mm |
| Depth (inches) | 3.799 inch |
| Height | 125 mm |
| Height (inches) | 4.921 inch |
| Width | 12.2 mm |
| Width (inches) | 0.48 inch |
| Net weight | 64.75 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Connection system | PUSH IN |
| DC input voltage range | 18…30 V DC |
| Input fuse (internal) | No |
| max. admissible residual ripple at the input | 100 mVpp |
| Rated input voltage | 24 V DC |
| Connection system | PUSH IN |
| Conformal coating | Yes |
| Control inputs | No |
| Protection degree | IP20 |
| Surge voltage category | III |
| Surge voltage category | III |
| Conductor cross-section, AWG/kcmil , max. | 6 AWG |
| Conductor cross-section, AWG/kcmil , min. | 18 AWG |
| Conductor cross-section, flexible , min. | 0.75 mm² |
| Conductor cross-section, rigid , max. | 10 mm² |
| Conductor cross-section, rigid , min. | 0.75 mm² |
| Connection system | PUSH IN |
| Number of terminals | 2 (+,−) |
| Screwdriver blade | 1.2 x 6.5 |
| Wire connection cross section, flexible (input), max. | 16 mm² |
| Connection system | PUSH IN |
| Certificate No. (ATEX) | DEMKO17ATEX1870X |
| Certificate no. (cULus) | E258476 |
| Certificate no. (cULusEX) | E470829 |
| Institute (cULus) | CULUS |
| Institute (cULusEX) | CULUSEX |
| Institute(ATEX) | DEMKOATEX |
| Approval/Certificate/Document of Conformity |
[MaxGuard AMG ELM UL 508 CSA C22.2.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306123)
[MaxGuard EX ATEX .pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306140) [BV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_308051) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_308052) [ABS Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_308054) [RINA Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_310593) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_85823) [UK Conformity Assessed](https://mdcop.weidmueller.com/mediadelivery/asset/900_314088) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65903) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2082530000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2082530000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2082530000&norm=0) |
| User Documentation |
[Manual_maxGUARD](https://mdcop.weidmueller.com/mediadelivery/asset/900_43594)
[Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_68840) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| Approvals |              |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
| Certificate no. (cULusEX) | E470829 |
