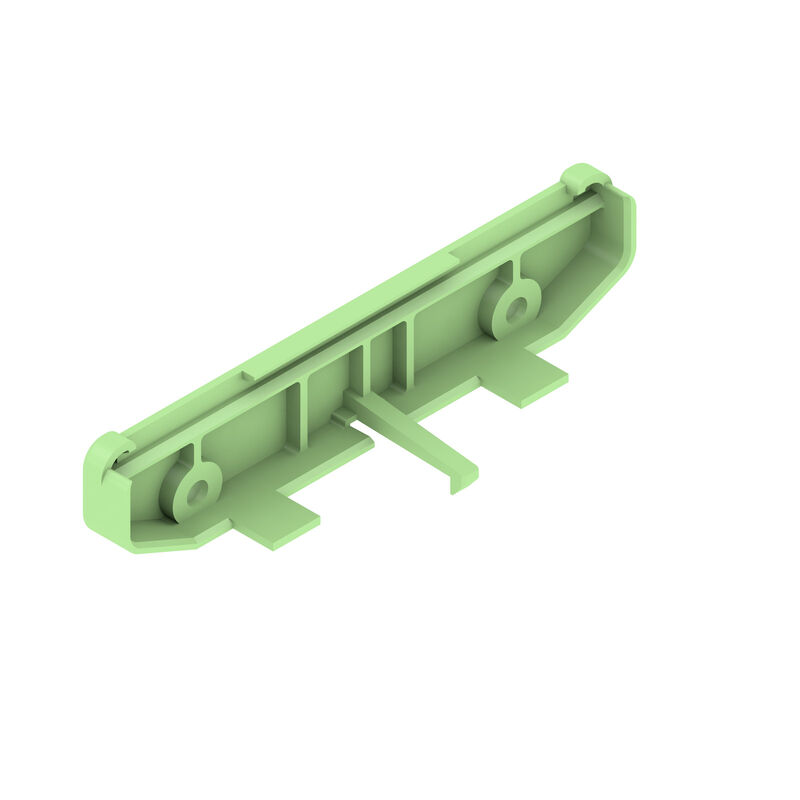

End plate, RS 100 green, End plate both sides, Width: 27.2 mm

Item No. 1028120000
Download data sheet Engineering Support Product Downloads
Related products 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Material data General data Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
End plate, RS 100 green, End plate both sides, Width: 27.2 mm
Best.-Nr.
1028120000
Art
AP 100 GN
GTIN (EAN)
4032248761715
Qty.
20 items

Dimensions and weights

Tiefe
23,8 mm
Depth (inches)
0.937 inch
Höhe
108,2 mm
Height (inches)
4.26 inch
Breite
27,2 mm
Width (inches)
1.071 inch
Net weight
7,35 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
PA 66
Comparative Tracking Index (CTI)
600 ≤ CTI
Grado inflamabilidad según UL 94
V-2
Grupo de materiales aislantes
I
Materiales aislantes
PA 66
Superficie
untreated

General data

Barrette de liaison équipée
TS 32
TS 35
Couleur
green
Degré de protection
IP20 in installed state
Színskála (hasonló)
RAL 6032
Tokozási opció
No

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC002779
ETIM 10.0
EC002779
ECLASS 14.0
27-19-06-02
ECLASS 15.0
27-19-06-02
