Properties
| Version | Plug, 1.5 mm², 500 V, 17.5 A, Number of poles: 1, dark beige |
| Order No. | 2482280000 |

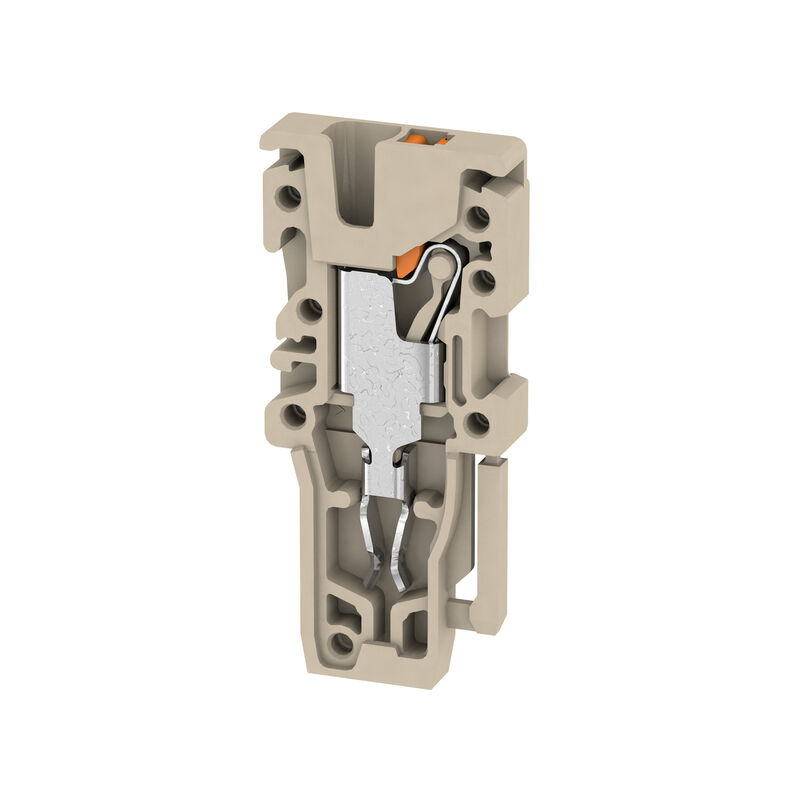

| Type | APG 1.5 MI |
| GTIN (EAN) | 4050118494310 |
| Qty. | 50 items |
| Depth | 31.15 mm |
| Depth (inches) | 1.226 inch |
| Height | 14 mm |
| Height (inches) | 0.551 inch |
| Width | 3.5 mm |
| Width (inches) | 0.138 inch |
| Net weight | 1.146 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Type of mounting | Plugged |
| Blade size | 0.4 x 2.0 mm |
| Clamping range, max. | 1.5 mm² |
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 1.5 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A1 |
| Number of connections | 1 |
| Stripping length | 10 mm |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 1.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 13 A |
| Current size C (CSA) | 13 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 14 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Number of poles | 1 |
| Standards | In accordance with IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 1.5 mm² |
| Rated voltage | 500 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 17.5 A |
| Current at maximum wires | 17.5 A |
| Standards | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 14 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 14 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size B (cURus) | 13 A |
| Current size C (cURus) | 13 A |
| Current size D (cURus) | 5 A |
| Voltage size B (cURus) | 300 V |
| Voltage size C (cURus) | 300 V |
| Voltage size D (cURus) | 600 V |
| Approval/Certificate/Document of Conformity |
[ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58165)
[IECEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58127) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66203) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2482280000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2482280000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[User Manual APGTB FT](https://mdcop.weidmueller.com/mediadelivery/asset/900_229205) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
