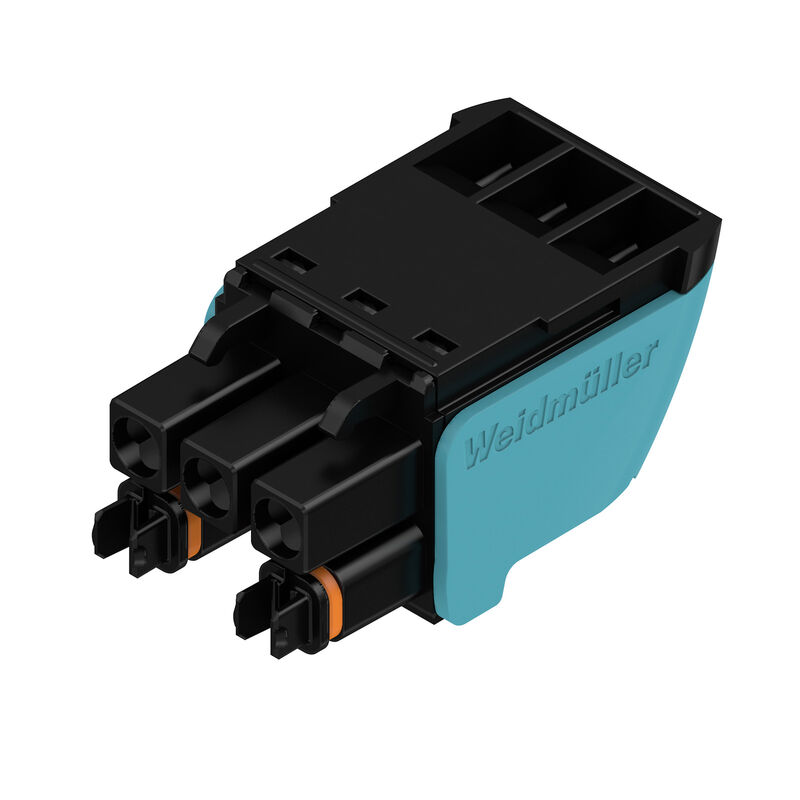

Product image
BHZ 5.00/03/90LH BK/BL

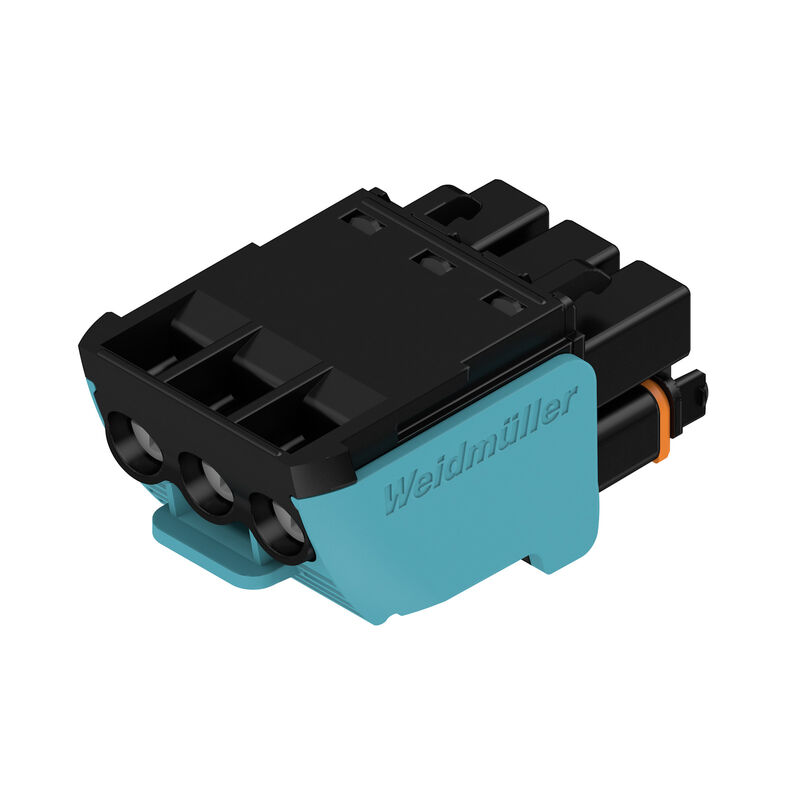

Product image
BHZ 5.00/03/90LH BK/BL

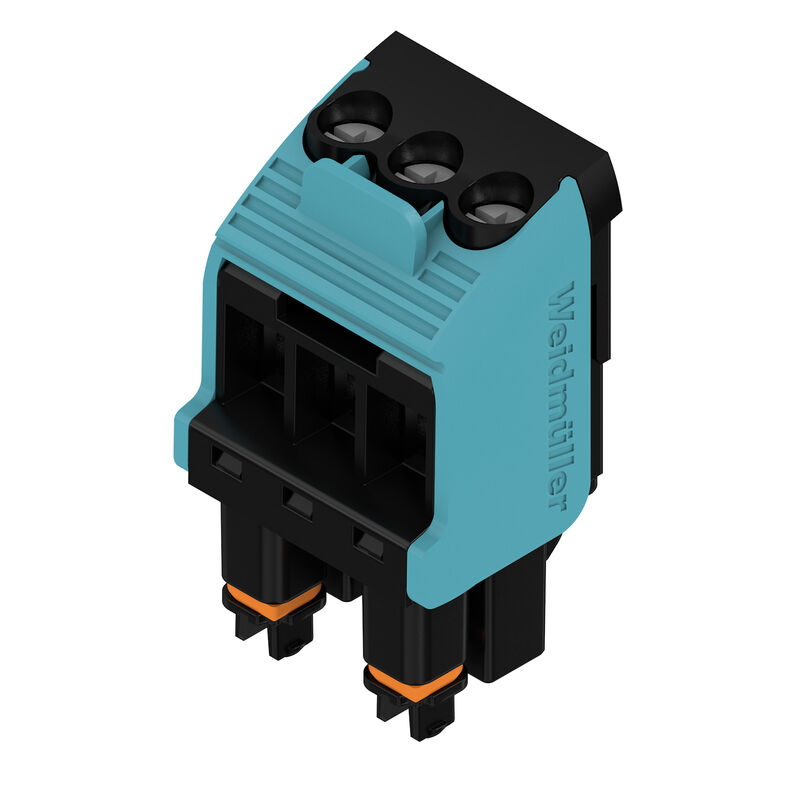

Product image
BHZ 5.00/03/90LH BK/BL
Similar to illustration
BHZ 5.00/03/90LH BK/BL
Derating curve
BHZ 5.00/03/90LH BK/BL
Derating curve

BHZ 5.00/03/90LH BK/BL

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 3, 90°, Clamping yoke connection, BHZ 5.00/03/90LH SN BK/BL BX; cod. 02, Box

Tuotteen tunnus 1069370000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 2 On lisävaruste 2 Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Material data General data Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 3, 90°, Clamping yoke connection, BHZ 5.00/03/90LH SN BK/BL BX; cod. 02, Box
Order No.
1069370000
Type
BHZ 5.00/03/90LH BK/BL
GTIN (EAN)
4032248824953
Qty.
108 items
Product data
IEC: 400 V / 10 A / 0.2 - 2.5 mm²
UL: 300 V / 10 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Depth
30,6 mm
Depth (inches)
1,205 inch
Výška
14,5 mm
Height (inches)
0,571 inch
Width
17,1 mm
Width (inches)
0,673 inch
Length
0 mm
Peso neto
5,5 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Housing - series CH20M
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Conductor outlet direction
90°
Number of poles
3
L1 in mm
10 mm
L1 in inches
0,394 "
Number of rows
1
Pin series quantity
1
Rated cross-section
2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from back-of-hand touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Can be coded
Ano
Stripping length
8 mm
Anzugsdrehmoment Schraubflansch, min.
0,4 Nm
Tightening torque for screw flange, max.
0,6 Nm
Meghúzási nyomaték, min.
0,4 Nm
조임 토크, 최대
0,6 Nm
클램프 스크류
M 2.5
Screwdriver blade
0.6 x 3.5
końcówka wkrętaka norma
DIN 5264
Stickcykler
25

Material data

Insulating material
PA 66 GF 30
Colour
blue
Colour of operational elements
Light Blue
컬러 차트(유사)
RAL 5012
Insulating material group
I
Comparative Tracking Index (CTI)
600 ≤ CTI
UL 94 flammability rating
V-0
접점 재질
CuSn
Contact surface
tinned
Lagertemperatur, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−40 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
−25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

クランプ範囲、最小
0,13 mm²
Campo di sezioni, max.
3,31 mm²
Sezione di collegamento cavo AWG, min.
AWG 26
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Stranded, min. H07V-R
0,2 mm²
Stranded, max. H07V-R
2 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
2,5 mm²
con term. tub. con aislamiento DIN 46 228/4,mín.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
페럴 포함, DIN 46228 pt 1, 최대
2,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.4 mm; 3.0 mm
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
10 A
정격 전류, 극 수(Tu=40°C)
9 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Clearance, min.
3 mm
Creepage distance, min.
3,2 mm

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Rated current (Use group C / CSA)
10 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
50 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Rated current (Use group C / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Material data

Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material group
I
Izolační materiál
PA 66 GF 30
Klasifikace hořlavosti UL 94
V-0

General data

Carta de colores (similar)
RAL 5012
Colour
blue
Tipo de protección
IP20

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
