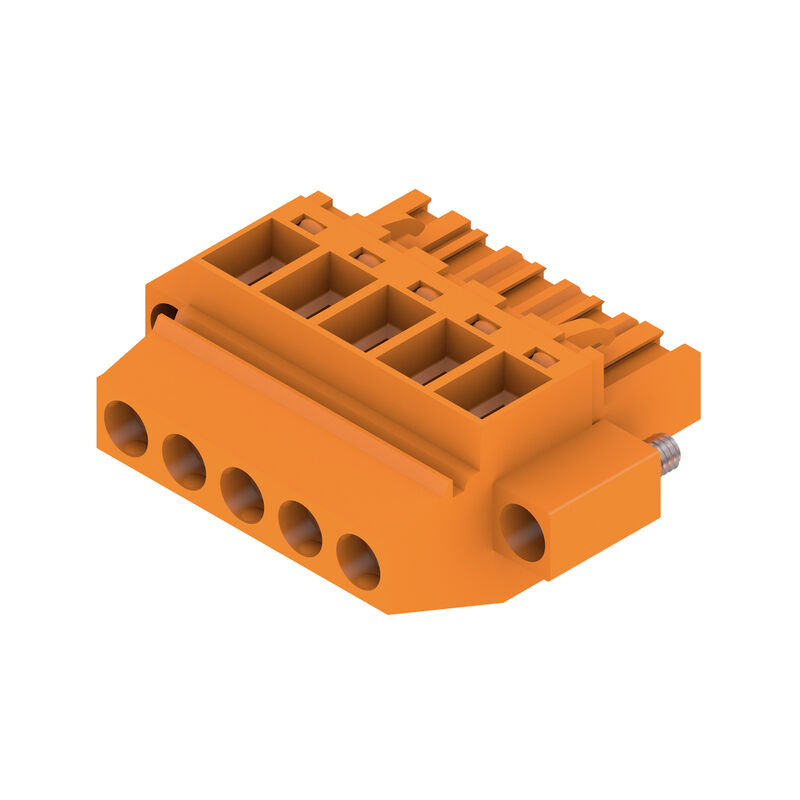

BLZP 5.00HC/05/90F SN OR BX
Product image
BLZP 5.00HC/05/90F SN OR BX
Product image
BLZP 5.00HC/05/90F SN OR BX
Dimensional drawing

BLZP 5.00HC/05/90F SN OR BX

This product will soon be unavailable.

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 5, 90°, Clamping yoke connection, Clamping range, max. : 4 mm², Box

Item No. 1959490000
Download data sheet Engineering Support Product Downloads
Accessories 6 Counterparts 4 Related products 17
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
証明書番号（cURus）
E60693

General ordering data

Version
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 5, 90°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Référence
1959490000
Type
BLZP 5.00HC/05/90F SN OR BX
GTIN (EAN)
4032248638420
数量
48 items
Product data
IEC: 400 V / 23 A / 0.2 - 4 mm²
UL: 300 V / 20 A / AWG 26 - AWG 12
Packaging
Box
配送ステータス
This article will no longer be available in the future.
Last order date
/Date(1793401200000)/

Dimensions and weights

Depth
27.1 mm
Depth (inches)
1.067 inch
Height
14.1 mm
Height (inches)
0.555 inch
Width
35 mm
Width (inches)
1.378 inch
净重
10.62 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,238 kg CO2 eq.

System Parameters

Product family
OMNIMATE Signal - series BL/SL 5.00
Type of connection
Field connection
Leiteranschlusstechnik
Clamping yoke connection
Raster in mm (P)
5 mm
Raster in Zoll (P)
0.197 "
Leiterabgangsrichtung
90°
Number of poles
5
L1 in mm
20 mm
L1 in inches
0.788 "
Number of rows
1
Pin series quantity
1
Rated cross-section
4 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Stripping length
7 mm
Clamping screw
M 2.5
Screwdriver blade
0.6 x 3.5
PH 1
PZ 1
Screwdriver blade standard
DIN 5264
ISO 8764/2-PH
ISO 8764/2-PZ
Plugging cycles
25
Plugging force/pole, max.
10 N
Pulling force/pole, max.
9 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0.4 Nm
      • max.:
        0.5 Nm
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0.2 Nm
      • max.:
        0.25 Nm

Material data

Insulating material
PBT
컬러 코드
orange
Tabela kolorów (podobny)
RAL 2000
Isoleringsmaterialgrupp
IIIa
CTI (Comparative Tracking Index)
≥ 200
절연 저항
≥ 108 Ω
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Поверхность контакта
tinned
Структура слоев штепсельного контакта
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Clamping range, min.
0.13 mm²
클램프 범위, 최대
4 mm²
Wire connection cross section AWG, min.
AWG 30
Sezione di collegamento cavo AWG, max.
AWG 12
entrådig, min. H05(07) V-U
0.2 mm²
단선, 최대 H05(07) V-U
4 mm²
fintrådig, min. H05(07) V-K
0.2 mm²
fintrådig, max. H05(07) V-K
4 mm²
med AEH med krage DIN 46 228/4, min.
0.2 mm²
med ändhylsa med krage DIN 46 228/4, max.
2.5 mm²
带导线管状端头，DIN 46228 部分 1，最小
0.2 mm²
z końcówką kablową wg DIN 46 228/1, maks.
4 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
Текст ссылки
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
23 A
Rated current, max. number of poles (Tu=20°C)
18 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
21 A
Märkström, max. antal poler (Tu=40°C)
16 A
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
400 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
320 V
Märkspänning vid överspänningskat./Nedsmutsningsgrad III/3
250 V
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения II/2
4 kV
额定冲击电压（过压等级III/污染等级2）
4 kV
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/3
4 kV
Устойчивость к воздействию кратковременного тока
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Nennspannung (Use group D / CSA)
300 V
Nennstrom (Use group B / CSA)
20 A
Nennstrom (Use group D / CSA)
20 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
348 mm
VPE width
134 mm
VPE height
31 mm

Important note

IPC準拠
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Megjegyzések
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
