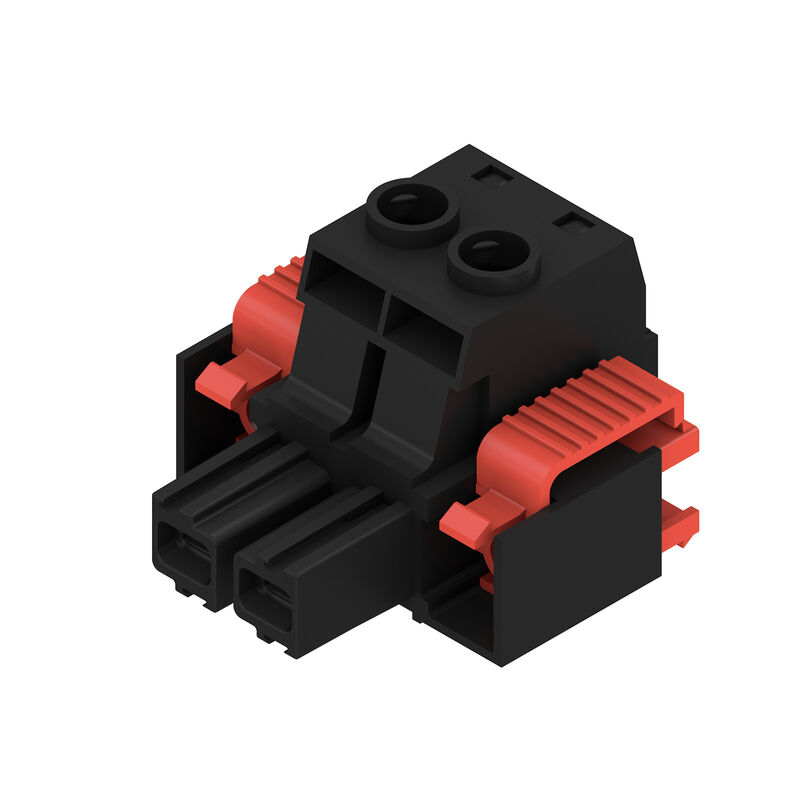

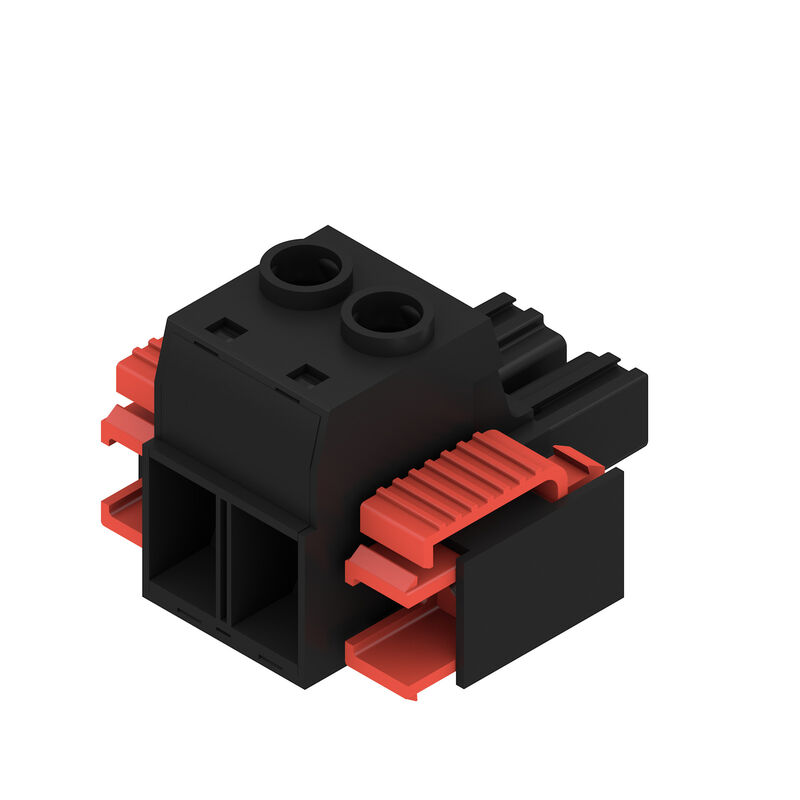

PCB plug-in connector, female plug, 10.16 mm, Number of poles: 2, 180°, Clamping yoke connection, Clamping range, max. : 16 mm², Box

Product ID 1924620000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 2 Contradelen 3 Verwante producten 18
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 10.16 mm, Number of poles: 2, 180°, Clamping yoke connection, Clamping range, max. : 16 mm², Box
Order No.
1924620000
Type
BUZ 10.16HP/02/180F AG BK BX
GTIN (EAN)
4032248564736
Qty.
28  items
Product data
IEC: 1000 V / 78.3 A / 0.2 - 16 mm²
UL: 600 V / 60 A / AWG 22 - AWG 4
Packaging
Box

Dimensions and weights

Net weight
28,7  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Power - series BU/SU 10.16HP
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
10,16  mm
Pitch in inches (P)
0,4  "
Conductor outlet direction
180°
Number of poles
2
L1 in mm
10,16  mm
L1 in inches
0,4  "
Number of rows
1
Pin series quantity
1
Rated cross-section
16  mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
4.50 mΩ
Can be coded
Yes
Stripping length
12  mm
Tightening torque, min.
1,2  Nm
Tightening torque, max.
2  Nm
Clamping screw
M 4
Screwdriver blade
1.0 x 5.5
PZ 2
Screwdriver blade standard
DIN 5264
ISO 8764/2-PZ
Plugging cycles
25
Plugging force/pole, max.
15,5  N
Pulling force/pole, max.
14,5  N

Material data

Insulating material
PA GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
silver-plated
Layer structure of plug contact
≥ 3 µm Ag
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
130  °C
Temperature range, installation, min.
-25  °C
Temperature range, installation, max.
130  °C

Conductors suitable for connection

Clamping range, min.
0,2  mm²
Clamping range, max.
16  mm²
Wire connection cross section AWG, min.
AWG 22
Wire connection cross section AWG, max.
AWG 4
Solid, min. H05(07) V-U
0,2  mm²
Solid, max. H05(07) V-U
16  mm²
Stranded, min. H07V-R
6  mm²
Stranded, max. H07V-R
16  mm²
Flexible, min. H05(07) V-K
0,5  mm²
Flexible, max. H05(07) V-K
16  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25  mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
16  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
16  mm²
Plug gauge in accordance with EN 60999 a x b; ø
5.3mm (B6)
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      1076980000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9025930000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9019140000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9004060000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9025910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      10 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0282900000
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      0534200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      16 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0492500000
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      0565900000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
78,3  A
Rated current, max. number of poles (Tu=20°C)
67,9  A
Rated current, min. number of poles (Tu=40°C)
70,6  A
Rated current, max. number of poles (Tu=40°C)
61,3  A
Rated voltage for surge voltage class / pollution degree II/2
1.000  V
Rated voltage for surge voltage class / pollution degree III/2
1.000  V
Rated voltage for surge voltage class / pollution degree III/3
1.000  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8  kV
Short-time withstand current resistance
3 x 1s mit 1000 A
Clearance, min.
15,1  mm
Creepage distance, min.
15,1  mm

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1842490
Rated voltage (Use group B / CSA)
600  V
Rated voltage (Use group C / CSA)
600  V
Rated voltage (Use group D / CSA)
600  V
Rated current (Use group B / CSA)
60  A
Rated current (Use group C / CSA)
60  A
Rated current (Use group D / CSA)
5  A
Wire cross-section, AWG, min.
AWG 22
Wire cross-section, AWG, max.
AWG 4
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
600  V
Rated voltage (Use group C / UL 1059)
600  V
Rated voltage (Use group D / UL 1059)
600  V
Rated current (Use group B / UL 1059)
60  A
Rated current (Use group C / UL 1059)
60  A
Rated current (Use group D / UL 1059)
5  A
Wire cross-section, AWG, min.
AWG 22
Wire cross-section, AWG, max.
AWG 4
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
351  mm
VPE width
136  mm
VPE height
50  mm

Type tests

Test: Durability of markings
  • Standard:
    taking pattern from DIN EN 61984 section 7.3.2 / 04.02 DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, approval marking cULus, type of material, durability
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.99
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 16 mm²
    • Type of conductor and conductor cross-section:
      stranded 16 mm²
    • Type of conductor and conductor cross-section:
      AWG 22/1
    • Type of conductor and conductor cross-section:
      AWG 22/19
    • Type of conductor and conductor cross-section:
      AWG 6/1
    • Type of conductor and conductor cross-section:
      AWG 6/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 22/1
    • Type of conductor and conductor cross-section:
      AWG 22/19
  • Evaluation:
    passed
  • Requirement:
    2.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 16 mm²
    • Type of conductor and conductor cross-section:
      stranded 16 mm²
    • Type of conductor and conductor cross-section:
      AWG 6/7
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
  • Evaluation:
    passed
  • Requirement:
    ≥15 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 22/1
    • Type of conductor and conductor cross-section:
      AWG 22/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥100 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      H07V-K16
    • Type of conductor and conductor cross-section:
      AWG 6/7
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002638
ETIM 7.0
EC002638
ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 9.0
27-44-03-09
ECLASS 9.1
27-44-03-09
ECLASS 10.0
27-44-03-09
ECLASS 11.0
27-46-02-02
ECLASS 12.0
27-46-02-02
ECLASS 13.0
27-46-02-02
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
