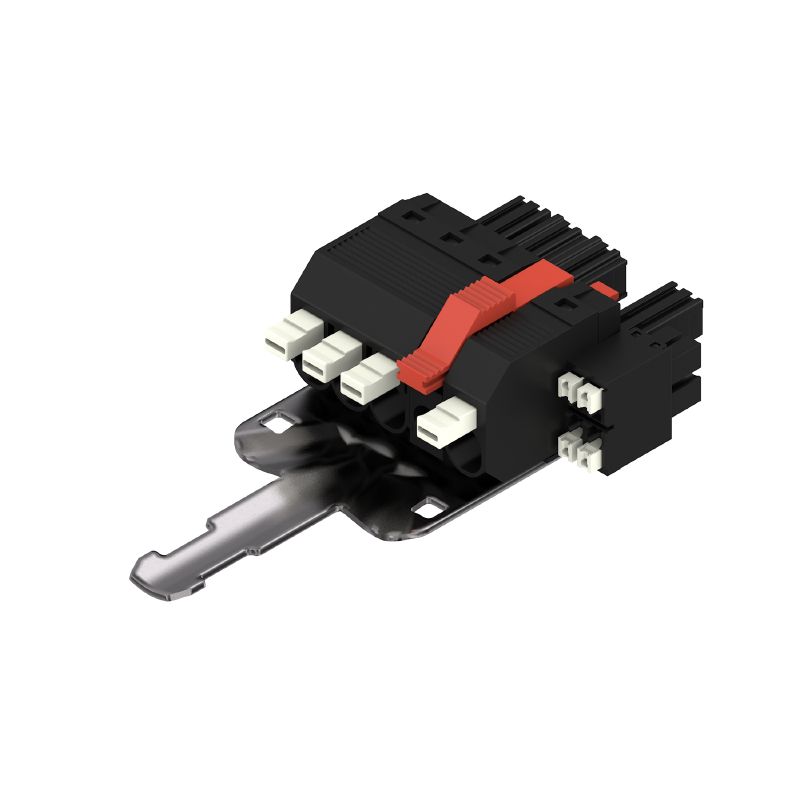

BVFL 7.62HP/4/180MF4 BCF/4 SNBKBX SH180
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN with actuator, Box
Item No.
2427960000
Properties
| Version | PCB plug-in connector, female plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN with actuator, Box |
| Order No. | 2427960000 |
| Type | BVFL 7.62HP/4/180MF4 BCF/4 SNBKBX SH180 |
| GTIN (EAN) | 4050118437133 |
| Qty. | 20 items |
| Product data |
IEC: 800 V / 0.5 - 6 mm² UL: / AWG 24 - AWG 8 |
| Packaging | Box |
| Net weight | 42.52 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | OMNIMATE Power - series BV/SV 7.62HP |
| Type of connection | Field connection |
| Wire connection method | PUSH IN with actuator |
| Pitch in mm (P) | 7.62 mm |
| Pitch in inches (P) | 0.3 " |
| Conductor outlet direction | 180° |
| Number of poles | 4 |
| L1 in mm | 30.48 mm |
| L1 in inches | 1.2 " |
| L2 in mm | 3.81 mm |
| L2 in inch | 0.15 " |
| Pin series quantity | 1 |
| Stripping length | 12 mm |
| Screwdriver blade | 0.6 x 3.5 |
| Plugging cycles | 25 |
| Insulating material | PA GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Layer structure of plug contact | 6...8 µm Sn glossy |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 125 °C |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Flexible, max. H05(07) V-K | 6 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 6 mm² |
| Clampable conductor |
|
| Reference text |
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Rated current, max. number of poles (Tu=20°C) | 38 A |
| Rated current, min. number of poles (Tu=40°C) | 34 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 800 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 630 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 630 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Clearance, min. | 10.4 mm |
| Creepage distance, min. | 12.7 mm |
| Rated voltage (Use group F / UL 1059) | 600 V |
| Rated current (Use group F / UL 1059) | 33 A |
| Wire cross-section, AWG, min. | AWG 24 |
| Wire cross-section, AWG, max. | AWG 8 |
| Packaging | Box |
| VPE length | 353 mm |
| VPE width | 135 mm |
| VPE height | 61 mm |
| Pitch in mm (Signal) | 3.81 mm |
| Pitch in inches (Signal) | 0.15 inch |
| Number of poles (Signal) | 4 |
| L2 in mm | 3.81 mm |
| L2 in inch | 0.15 " |
| Number of rows (Signal) | 2 |
| Contact material (Signal) | CuMg |
| Contact surface (Signal) | tinned |
| Layer structure of the plug contact (Signal) | 1-3 µ Ni / 4-8 µ Sn |
| Rated voltage for overvoltage class/pollution severity level II/2 (Signal) | 250 V |
| Rated voltage for overvoltage class/pollution severity level III/2 (Signal) | 150 V |
| Rated voltage for overvoltage class/pollution severity level III/3 (Signal) | 63 V |
| Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal) | 2.5 kV |
| Rated impulse voltage for overvoltage class/pollution severity level III/2 (Signal) | 2.5 kV |
| Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal) | 2.5 kV |
| Short-time withstand current resistance (Signal) | 3 x 1s with 80 A |
| Connector cross-section (Signal) | AWG 26...AWG 16 |
| Clamping range, rated connection (Power) | 0.5...10 mm² |
| Clamping range, rated connection (Signal) | 0.2...1.5 mm² |
| Connector cross-section (Power) | AWG 24...AWG 8 |
| Connector cross-section AWG (Signal) | AWG 26...AWG 16 |
| solid, H05(07) V-U (Power) | 0.5...10 mm² |
| solid, H05(07) V-U (Signal) | 0.14...1.5 mm² |
| flexible, H05(07) V-K (Power) | 0.5...6 mm² |
| flexible, H05(07) V-K (Signal) | 0.14...1.5 mm² |
| with wire-end ferrule with collar (Power) | 0.5...6 mm² |
| with wire-end ferrule with collar, DIN 46 228/4 (Signal) | 0.25...1.5 mm² |
| with wire-end ferrule according to DIN 46 228/1 (Power) | 0.5...6 mm² |
| with wire-end ferrule according to DIN 46 228/1 (Signal) | 0.25...1.5 mm² |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_297889) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2427960000) |
| Product Change Notification |
[EN - Change of isolation material](https://mdcop.weidmueller.com/mediadelivery/asset/900_90826)
[DE - Werkstoffänderung Pusher](https://mdcop.weidmueller.com/mediadelivery/asset/900_90827) [20210408 OMNIMATE® Power – BVF(L) 7.62 HPIT fastening shielding plate](https://mdcop.weidmueller.com/mediadelivery/asset/900_207357) [20210408 OMNIMATE® Power BVF(L) 7.62 HPIT Schirmblechbefestigung](https://mdcop.weidmueller.com/mediadelivery/asset/900_207358) [20220201 Visual change OMNIMATE® Power PCB terminal blocks and connectors](https://mdcop.weidmueller.com/mediadelivery/asset/900_251007) [20220201 Visuelle Änderung OMNIMATE® Power Leiterplattenklemmen und -steckverbinder](https://mdcop.weidmueller.com/mediadelivery/asset/900_251008) [20220208 Visual change Temporarily different color for connectors and accessories](https://mdcop.weidmueller.com/mediadelivery/asset/900_251161) [20220208 Visuelle Änderung Vorübergehend anderer Farbton für Steckverbinder und Zubehör](https://mdcop.weidmueller.com/mediadelivery/asset/900_251162) |
| User Documentation |
[Operating Instruction BVFL hybrid](https://mdcop.weidmueller.com/mediadelivery/asset/900_73886)
[QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78403) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 6.0 | EC002638 |
| ETIM 7.0 | EC002638 |
| ETIM 8.0 | EC002638 |
| ETIM 9.0 | EC002638 |
| ECLASS 9.0 | 27-44-03-09 |
| ECLASS 9.1 | 27-44-03-09 |
| ECLASS 10.0 | 27-44-03-09 |
| ECLASS 11.0 | 27-46-02-02 |
| ECLASS 12.0 | 27-46-03-02 |
| ECLASS 13.0 | 27-46-03-02 |
| ECLASS 14.0 | 27-46-03-02 |
| ROHS | Conform |
