Properties
| Version | Z-series, Marker holder |
| Order No. | 1781140000 |

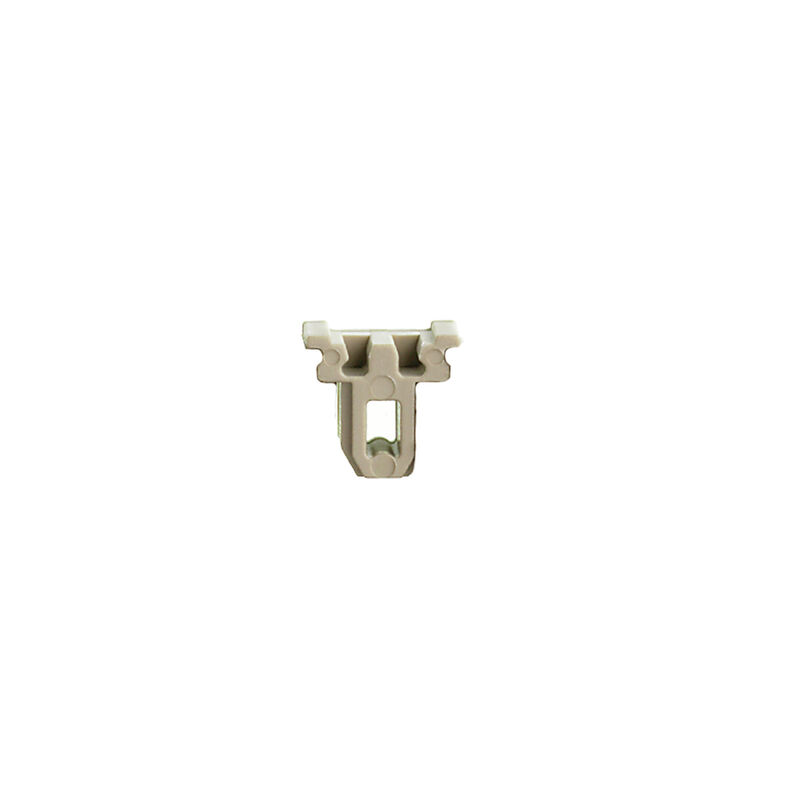

| Type | BZT ZTL6 |
| GTIN (EAN) | 4032248170364 |
| Qty. | 20 items |
| Depth | 8.9 mm |
| Depth (inches) | 0.35 inch |
| Height | 9.5 mm |
| Height (inches) | 0.374 inch |
| Width | 7.8 mm |
| Width (inches) | 0.307 inch |
| Net weight | 0.31 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -40 °C...100 °C |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Plugged |
| Pitch in mm (P) | 5 mm |
| Installation advice | Direct mounting |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63673) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1781140000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1781140000) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| Brochures | [CAT 1 TERM 16/17 EN](http://download.weidmueller.com/asset/download/file/39470) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-14-11-92 |
| ECLASS 14.0 | 27-14-11-92 |
| ROHS | Conform |
