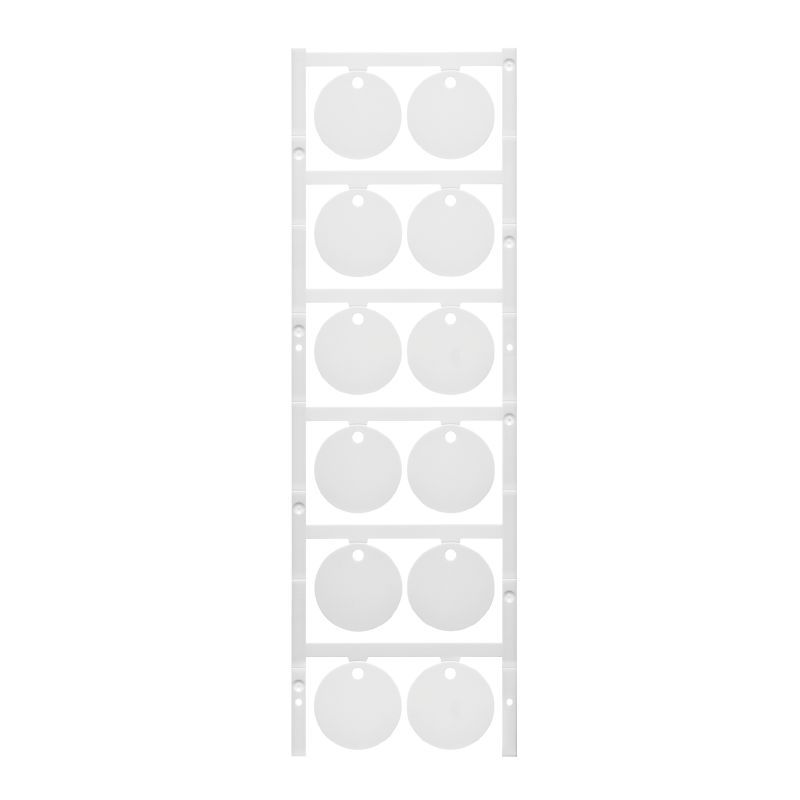

ClipCard, Device markers, 30 x 30 mm, With hole, white

Item No. 1266120000
Download data sheet Engineering Support Product Downloads
Related products 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
ClipCard, Device markers, 30 x 30 mm, With hole, white
Order No.
1266120000
Type
CC DIA 30/3.5 MC NE WS
GTIN (EAN)
4050118055948
Qty.
60 items

Dimensions and weights

Depth
1,2 mm
Depth (inches)
0,047 inch
Hauteur
30 mm
Height (inches)
1,181 inch
Width
30 mm
Width (inches)
1,181 inch
Átmérő
30 mm
Net weight
2,067 g

Temperatures

Üzemi hőmérsékleti tartomány
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Termék karbonlábnyoma
  • Cradle to gate:
    0.014 kg CO2 eq.

General data

Application/manufacturer
With hole
Basic material
Polyamide 66
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000)
Halogen
No
Klasa palności wg UL 94
V-2
Number of markers per combination
1 MultiCard = Device markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Printed characters
without
Recommended industries
Machinery
Temperaturområde för användning min.
−40 °C
Version
ø 30 mm
with 3.5 mm mounting hole
Width
30 mm
Температурный диапазон, макс..
100 °C
저항 코드에 따른 자재 컬러
9

Device markers

Furatátmérő
3,5 mm
Halogén
No
Átmérő
30 mm

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
