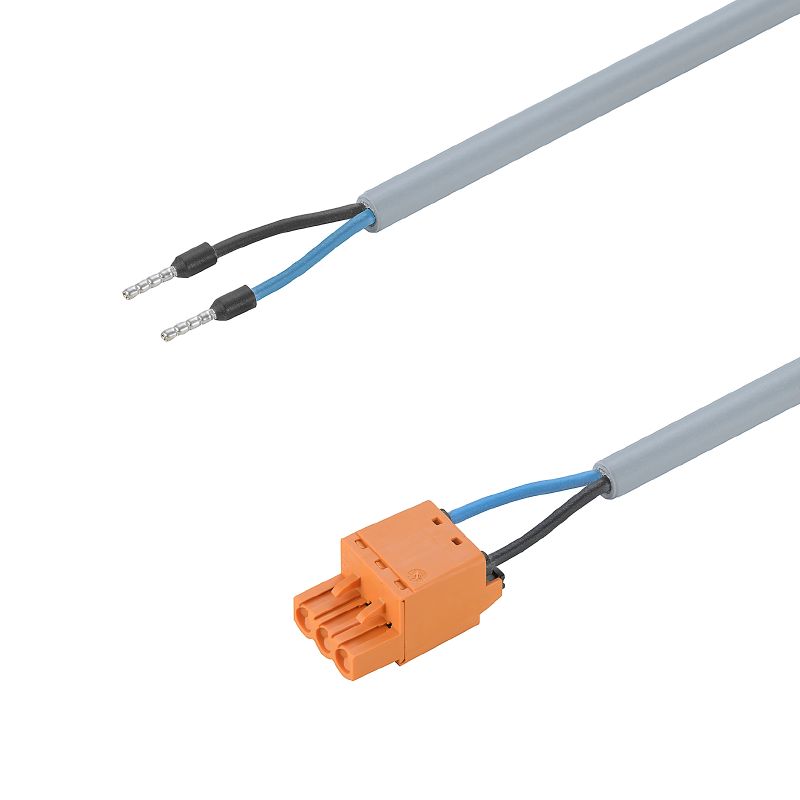

Smart Metering Cable Assemblies, 6 kV, Socket connector, IP20, 600 V, KB PUR US 2X1.5 GY XX 6KV, 0.33 m

Item No. 2784110033
Download data sheet
Related products 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General Technical Data Technical Specifications Connector Technical specifications for cable Classifications

Approvals

ROHS
Conform

General ordering data

Versione
Smart Metering Cable Assemblies, 6 kV, Socket connector, IP20, 600 V, KB PUR US 2X1.5 GY XX 6KV, 0.33 m
N. d’ordine
2784110033
Tipo
CH-SMC-00.33-ECB180
GTIN (EAN)
4064675060796
Qty.
10 items

Dimensions and weights

Diameter
6,4 mm
Net weight
52 g

Temperatures

Limit temperature
-30 °C ... 90 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General Technical Data

Corrente nominale
18,5 A
Grado di protezione
IP20
Numero di poli
2
Tensione impulsiva di dimensionamento
6 kV
Tensione nominale
600 V

Technical Specifications Connector

Connector
  • Connector description:
    Connector 1
  • Cable entry:
    straight
  • Housing main material:
    Plastic
  • Number of poles:
    3
  • Type:
    Female
  • Individual components connector:
    2701840000
  • Connector description:
    Connector 2
  • Cable entry:
    straight
  • Housing main material:
    Plastic
  • Number of poles:
    1
  • Individual components connector:
    1476050000

Technical specifications for cable

Cable Material
PUR/ TPE
Core cross-section
1,5 mm²
Halogen
No
izolacja
PP
Lunghezza del cavo
0,33 m
Number of wires
2
Outside diameter
6.4 mm ± 0.25 mm
Resistance to oils
Yes
Resistant to welding beads
Yes
Sheathing colour
grey
Shielded
No
Temperaturområde, fast lagd, min.
-40 °C
Tipo di cavi
KB PUR US 2X1.5 GY XX 6KV
zakres temperatur, ruchomy, maks.
90 °C
zakres temperatur, ruchomy, min.
-30 °C
Температурный диапазон, стационарная прокладка, макс.
90 °C
最小弯曲半径，可变
15 x cable diameter
最小弯曲半径，固定
10 x cable diameter

Classifications

ETIM 8.0
EC001576
ETIM 9.0
EC001576
ETIM 10.0
EC001576
ECLASS 14.0
27-06-04-02
ECLASS 15.0
27-06-04-02
