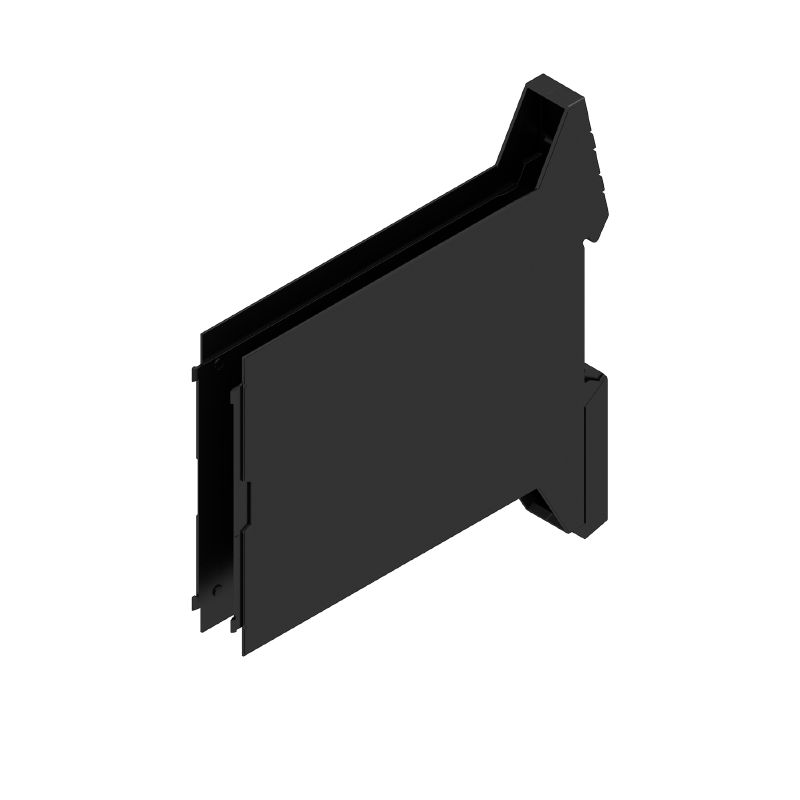

CH20M12 B BK/BK 2010
Product image
CH20M12 B BK/BK 2010
Product image
CH20M12 B BK/BK 2010
Imagen de producto
Base sin escotadura en el área del pie de encaje a presión
CH20M12 B BK/BK 2010
Dimensioned drawing

CH20M12 B BK/BK 2010

Modular housing, OMNIMATE Housing - series CH20M black, Base element, Width: 12.5 mm

Ürün No. 1104170000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data General data Assembly properties Mechanical tests Thermal tests Component properties Design - IN requirements Individualization options Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Modular housing, OMNIMATE Housing - series CH20M black, Base element, Width: 12.5 mm
Order No.
1104170000
유형
CH20M12 B BK/BK 2010
GTIN (EAN)
4032248878567
Qty.
14 adet

Dimensions and weights

Depth
108 mm
Depth (inches)
4,252 inch
높이
109,3 mm
Height (inches)
4,303 inch
Szélesség
12,5 mm
Width (inches)
0,492 inch
Net weight
31,47 g

Temperatures

Ambient temperature
-25 °C…85 °C
Operating temperature range
-40...120 ℃
Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Plastic
Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material
PA 66 GF 30
Insulating material group
I
Surface finish
untreated
UL 94 flammability rating
V-0

General data

Colour
black
Colour chart (similar)
RAL 9011
Encapsulation option
No
Mounting rail
TS 35
Protection degree
IP20 in installed state

Assembly properties

Number of slots for female connectors of the mounted assembly, max.
6
Number of PCBs, max.
1
Number of connection levels, max.
3
Number of poles, max.
12
Height of components on the PCB, max.
6,1 mm
Type of assembly of the PCB
double-sided

Mechanical tests

According to Standard
DIN EN 61373:1999 (shock and vibration)
Test conditions
five housings installed in a row
100g additional weight on the PCB
Proved axles
X
Y
Z
Shock test
  • General test advices:
    All mechanical tests were tested on examplary setup, or in view of depending regulation. The specified results do not replace approval relevant tests. They are just orientation values.
  • Test category:
    1
  • Number of shocks per axle:
    3 in positive and negative direction
  • Shock duration:
    30 ms
  • Acceleration horizontal:
    30 m/s²
  • Acceleration vertical:
    30 m/s²
  • Acceleration longitudinal:
    50 m/s²
Vibration test
  • Test category:
    1B
  • Test duration:
    5 hours per axle
  • Effective acceleration:
    7,9 m/s²

Thermal tests

Thermal tests
  • General test advices:
    All thermal tests were tested on examplary setup, or in view of depending regulation. The specified results do not replace approval relevant tests. They are just orientation values.
  • Test conditions:
    seven housings installed in a row - no spacing
  • Test axles:
    horizontal
  • Ambient temperature:
    80 °C
  • Power dissapation, max.:
    0,8 W
  • Ambient temperature:
    60 °C
  • Power dissapation, max.:
    1,35 W
  • Ambient temperature:
    40 °C
  • Power dissapation, max.:
    1,9 W
  • Ambient temperature:
    20 °C
  • Power dissapation, max.:
    2,65 W

Component properties

Color of clip-on foot
black
Number of connection levels, max.
3

Design - IN requirements

PCB thickness
1,6 mm
Tolerance for the PCB shape
±0.1 mm
Tolerancia del espesor de la placa c.i.
±0.15 mm

Individualization options

Alternativní barvy
More on request
Bearbeitungsmöglichkeiten
Laser processing
Customer specific order process
See guideline under downloads
Możliwość zastosowania etykiet specjalnych
Yes

Important note

Product information
Circuit board contour, restricted zones, and other information for the design in of the circuit board can be found in the category connection technology under the corresponding male headers in the downloads.

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-06-01
ECLASS 15.0
27-19-06-01
