Properties

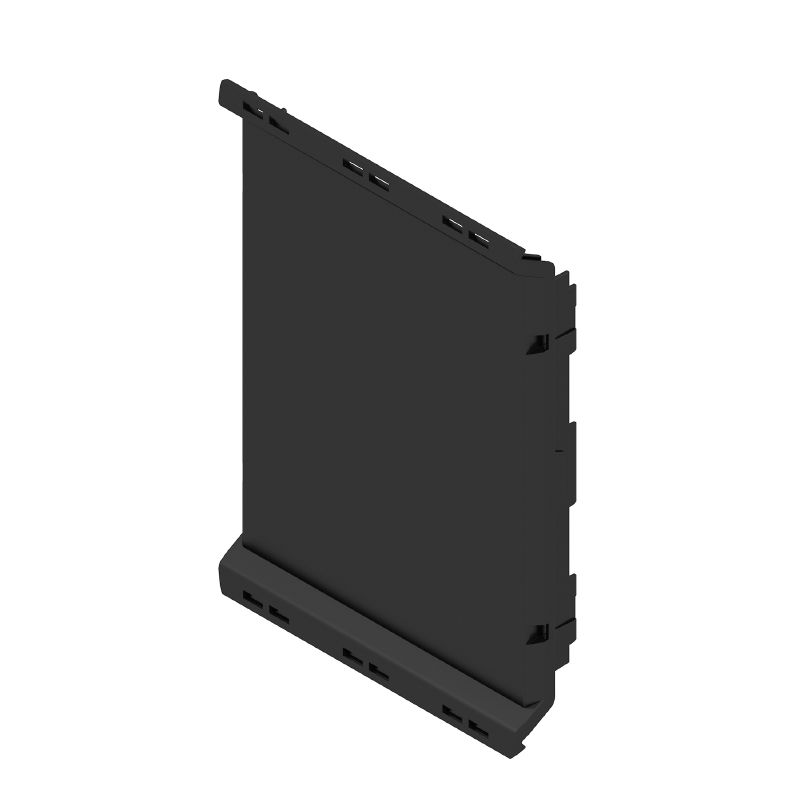

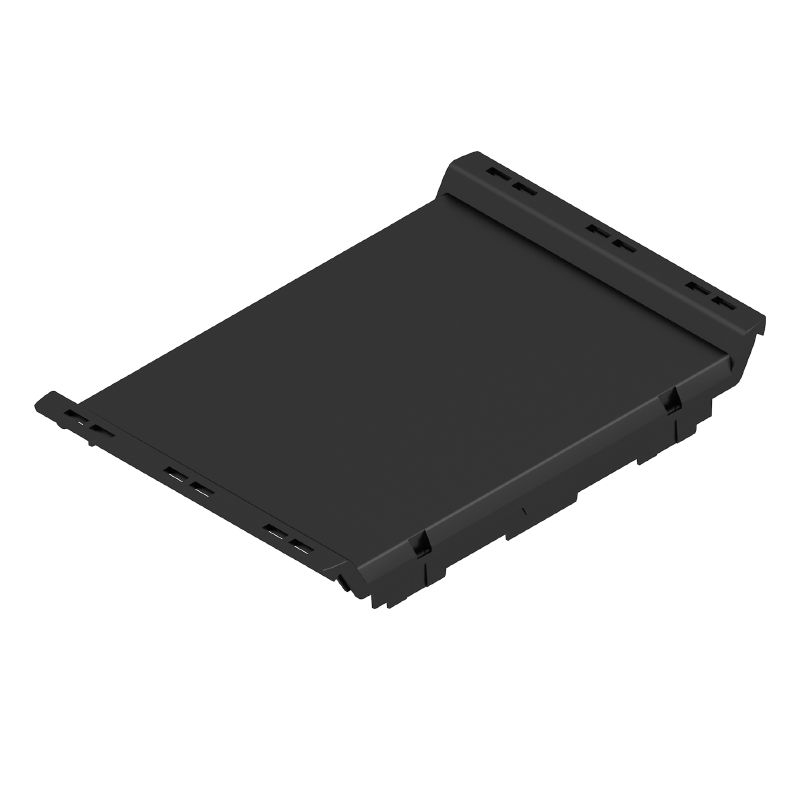

| Version | Modular housing, OMNIMATE Housing - series CH20M black, Front element, Width: 67.5 mm |
| Order No. | 1235310000 |
| Type | CH20M67 FC BK 2010 |
| GTIN (EAN) | 4050118019964 |
| Qty. | 15 items |
| Depth | 15.5 mm |
| Depth (inches) | 0.61 inch |
| Height | 100 mm |
| Height (inches) | 3.937 inch |
| Width | 67.5 mm |
| Width (inches) | 2.657 inch |
| Net weight | 13.56 g |
| Operating temperature range | -40 °C...120 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 600 ≤ CTI |
| Insulating material | PA 66 GF 30 |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Flip cover mountable | No |
| Marker integrateable | No |
| Alternitive colours | More on request |
| Customer specific cutouts possible | Yes |
| Customer specific labelling possible | Yes |
| Customer specific order process | See guideline under downloads |
| Processing possibilities |
Laser processing
Milling |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54019) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1235310000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1235310000) |
