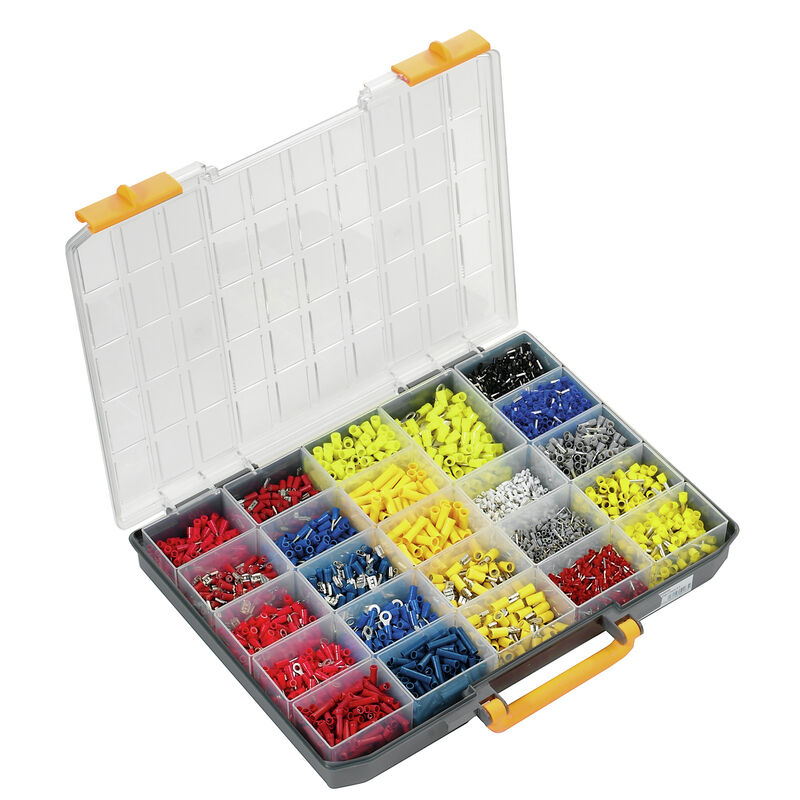

CRIMP-SET KONTAKTE

Assortment box, Colour code: DIN

Item No. 9202640000

Properties

General ordering data

Version	Assortment box, Colour code: DIN
Order No.	9202640000
Type	CRIMP-SET KONTAKTE
GTIN (EAN)	4032248503322
Qty.	1 items

Dimensions and weights

Depth	330 mm
Depth (inches)	12.992 inch
Height	57 mm
Height (inches)	2.244 inch
Width	413 mm
Width (inches)	16.26 inch
Net weight	3,503 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Technical data

Description of article

Crimp set contacts with insulated connectors and wire-end ferrules with plastic collars

Assortments

Colour code	DIN
Number of AEH	2,000 pcs.

Downloads

Catalogues

[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000524
ETIM 7.0	EC000524
ETIM 8.0	EC000524
ETIM 9.0	EC000524
ECLASS 9.0	27-40-02-18
ECLASS 9.1	27-40-02-18
ECLASS 10.0	27-40-02-18
ECLASS 11.0	27-40-02-18
ECLASS 12.0	27-40-02-18
ECLASS 13.0	27-40-02-18
ECLASS 14.0	27-40-02-18

Accessories

ToolsAssortmentAssortment box/case (empty) and insertsInserts

EINSATZ A7-1 CL55

Item No.:

9028450000

Packaging unit:

1 PC

Assortment of inserts

Data sheet Downloads

EINSATZ A8-1 CL55

Item No.:

9028460000

Packaging unit:

100 PC

Assortment of inserts

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 0.75mm²packed loose in polythene bag

H0,75/14D GR

Item No.:

9019040000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, grey

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorCable-lug sleeves

LIF 6F638 R

Item No.:

9200570000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²

Data sheet Downloads

LIF 1,5F288 R

Item No.:

9200520000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

LIF 2,5F638 R

Item No.:

9200560000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²

Data sheet Downloads

LIF 1,5F638 R

Item No.:

9200540000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

ToolsAssortmentAssortment box/case (empty) and insertsCase

KOFFER CARRY LITE 55

Item No.:

9202000000

Packaging unit:

1 PC

Tools, Empty box / Case

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 0.5mm²packed loose in polythene bag

H0,5/14D W

Item No.:

9019010000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, white

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorJoint connector

LIB 1,5B25 VF

Item No.:

9200490000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

LIB 2,5B25 VF

Item No.:

9200500000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue

Data sheet Downloads

LIB 6B26 VF

Item No.:

9200510000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorRing cable lugs

LIR 2,5M5 V

Item No.:

9200180000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²

Data sheet Downloads

LIR 1,5M5 V

Item No.:

9200100000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²

Data sheet Downloads

LIR 1,5M4 V

Item No.:

9200090000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²

Data sheet Downloads

LIR 6M6 V

Item No.:

9200250000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 1.0mm²packed loose in polythene bag

H1,0/14D R

Item No.:

9019080000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, red

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorPin cable lugs

LIP 6R14 V

Item No.:

9200480000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow

Data sheet Downloads

LIP 1,5R12 V

Item No.:

9200460000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

LIP 2,5R12 V

Item No.:

9200470000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 1.5mm²packed loose in polythene bag

H1,5/14D SW

Item No.:

9019120000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, black

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 6.0mm²

H6,0/20D GE

Item No.:

9019220000

Packaging unit:

100 PC

Wire-end ferrule, Standard, 14 mm, 12 mm, yellow

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 4.0mm²packed loose in polythene bag

H4,0/18D GR

Item No.:

9019190000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 12 mm, 10 mm, grey

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 2.5mm²packed loose in polythene bag

H2,5/15D BL

Item No.:

9019160000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, blue

Data sheet Downloads

Individual parts

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 0.75mm²packed loose in polythene bag

H0,75/14D GR

Item No.:

9019040000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, grey

Data sheet Downloads

ToolsAssortmentAssortment box/case (empty) and insertsCase

KOFFER CARRY LITE 55

Item No.:

9202000000

Packaging unit:

1 PC

Tools, Empty box / Case

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 1.5mm²packed loose in polythene bag

H1,5/14D SW

Item No.:

9019120000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, black

Data sheet Downloads

ToolsAssortmentAssortment box/case (empty) and insertsInserts

EINSATZ A7-1 CL55

Item No.:

9028450000

Packaging unit:

1 PC

Assortment of inserts

Data sheet Downloads

EINSATZ A8-1 CL55

Item No.:

9028460000

Packaging unit:

100 PC

Assortment of inserts

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 0.5mm²packed loose in polythene bag

H0,5/14D W

Item No.:

9019010000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, white

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 4.0mm²packed loose in polythene bag

H4,0/18D GR

Item No.:

9019190000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 12 mm, 10 mm, grey

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 2.5mm²packed loose in polythene bag

H2,5/15D BL

Item No.:

9019160000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, blue

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 6.0mm²

H6,0/20D GE

Item No.:

9019220000

Packaging unit:

100 PC

Wire-end ferrule, Standard, 14 mm, 12 mm, yellow

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorCable-lug sleeves

LIF 1,5F638 R

Item No.:

9200540000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

LIF 2,5F638 R

Item No.:

9200560000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²

Data sheet Downloads

LIF 1,5F288 R

Item No.:

9200520000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

LIF 6F638 R

Item No.:

9200570000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorPin cable lugs

LIP 1,5R12 V

Item No.:

9200460000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

LIP 6R14 V

Item No.:

9200480000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow

Data sheet Downloads

LIP 2,5R12 V

Item No.:

9200470000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue

Data sheet Downloads

ToolsWire end ferrulesWire end ferrules with plastic collarConductor nom. cross-section 1.0mm²packed loose in polythene bag

H1,0/14D R

Item No.:

9019080000

Packaging unit:

500 PC

Wire-end ferrule, Standard, 10 mm, 8 mm, red

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorJoint connector

LIB 6B26 VF

Item No.:

9200510000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow

Data sheet Downloads

LIB 1,5B25 VF

Item No.:

9200490000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red

Data sheet Downloads

LIB 2,5B25 VF

Item No.:

9200500000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorRing cable lugs

LIR 1,5M5 V

Item No.:

9200100000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²

Data sheet Downloads

LIR 6M6 V

Item No.:

9200250000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,6 mm²,4 mm² - 6 mm²

Data sheet Downloads

LIR 1,5M4 V

Item No.:

9200090000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²

Data sheet Downloads

LIR 2,5M5 V

Item No.:

9200180000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²

Data sheet Downloads
