Properties

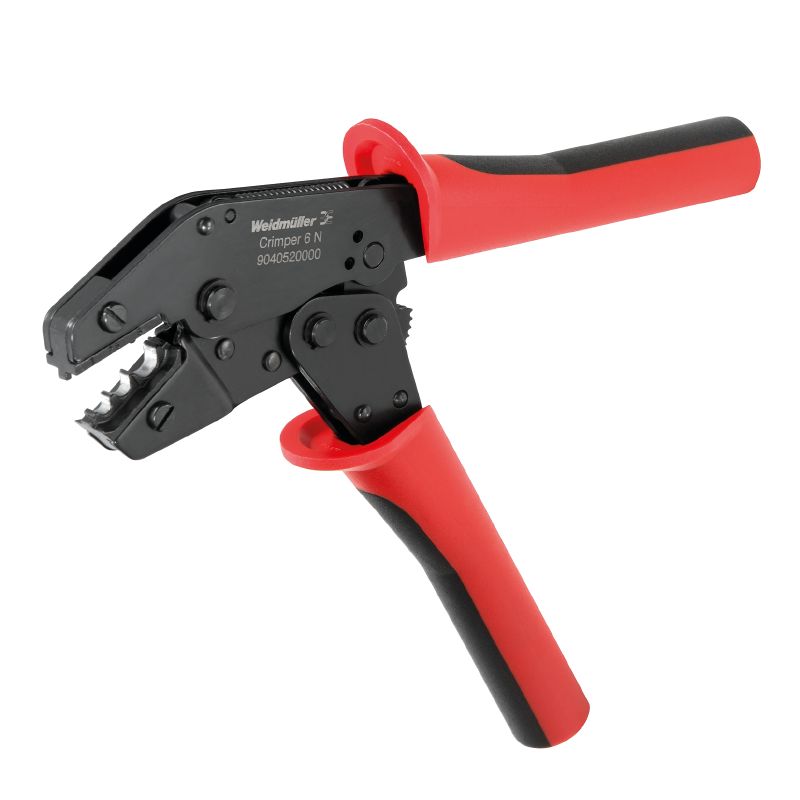

| Version | Tools, Crimping tool for contacts, 0.5mm², 6mm², Trapezoidal crimp |
| Order No. | 9040520000 |
| Type | CRIMPER 6 N |
| GTIN (EAN) | 4008190461461 |
| Qty. | 1 items |
| Depth | 30 mm |
| Depth (inches) | 1.181 inch |
| Height | 78 mm |
| Height (inches) | 3.071 inch |
| Width | 200 mm |
| Width (inches) | 7.874 inch |
| Net weight | 378.8 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tool for non-insulated connectors, 0.25-6 mm² |
| Version | Mechanical, without interchangeable inserts |
| Conductor cross-section, max. AWG | AWG 10 |
| Conductor cross-section, min. AWG | AWG 24 |
| Crimping range, max. | 6 mm² |
| Crimping range, min. | 0.5 mm² |
| Type of contact | Uninsulated connection |
| Crimping type/profile | Trapezoidal crimp |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
