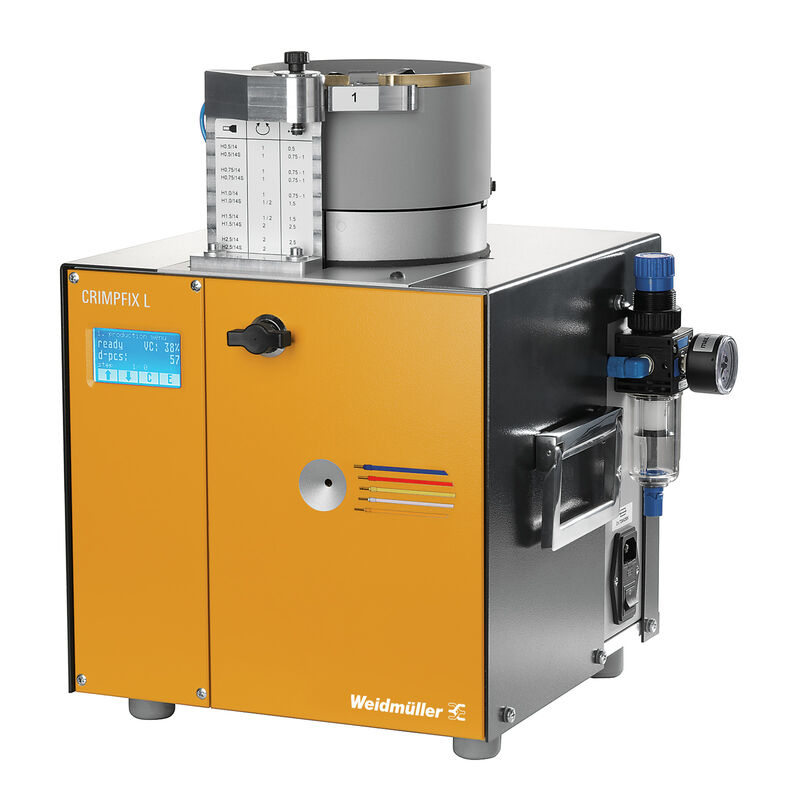

CRIMPFIX L

Automatic stripper and crimper

Item No. 9028530000

Properties

General ordering data

Version	Automatic stripper and crimper
Order No.	9028530000
Type	CRIMPFIX L
GTIN (EAN)	4008190942670
Qty.	1 items

Dimensions and weights

Depth	330 mm
Depth (inches)	12.992 inch
Height	460 mm
Height (inches)	18.11 inch
Width	390 mm
Width (inches)	15.354 inch
Net weight	34,000 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	d2df479e-2b79-4e98-adc7-b03577df98ae

PW65 maintenance - automatic stripping/crimping

Compressed-air connection	5 - 5.5 bar
Consumables	loose cable lugs with plastic collar
Crimping length	8 mm
Drive	Electropneumatic
Electrical connection	100-240 V / 50/60 Hz / 110 VA
Length of wire-end ferrule	14 mm
Pulse time	approx. 1 s
Stripping range	0.5 - 2.5 mm² (~AWG 20-14)
Wire end ferrules cross-section, max.	2.5 mm²
Wire end ferrules cross-section, min.	0.5 mm²

Important note

Product information

Old Version
9022650000 – SOT 1: 0.5 mm² - 1.5 mm² up to serial number CF L 1789 and CF LS 1475
9022660000 – SOT 2: 1.5 mm² - 2.5 mm² up to serial number CF L 1789 and CF LS 1475

New Version
1440540000 – SOT 1: 0.5 mm² - 1.5 mm² from serial number CF L 1790 and CF LS 1476
1440550000 – SOT 2: 1.5 mm² - 2.5 mm² from serial number CF L 1790 and CF LS 1476

Downloads

User Documentation	[Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_72245) [Manual Crimpfix L](https://mdcop.weidmueller.com/mediadelivery/asset/900_320189)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002778
ETIM 7.0	EC002778
ETIM 8.0	EC002778
ETIM 9.0	EC002778
ECLASS 9.0	17-13-01-01
ECLASS 9.1	17-13-01-01
ECLASS 10.0	17-13-01-01
ECLASS 11.0	17-13-01-01
ECLASS 12.0	17-13-01-01
ECLASS 13.0	17-13-01-01
ECLASS 14.0	17-13-01-01
