Properties
| Version | CUBESERIES, LED module with freewheel diode, Rated control voltage: 24…60 V DC, Plug-in connection |
| Order No. | 3053340000 |
| Type | CXX LD 42G |
| GTIN (EAN) | 4099987023139 |
| Qty. | 20 items |
| Depth | 25.7 mm |
| Depth (inches) | 1.012 inch |
| Height | 9.2 mm |
| Height (inches) | 0.362 inch |
| Width | 12.8 mm |
| Width (inches) | 0.504 inch |
| Net weight | 2 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated control voltage | 24…60 V DC |
| Status indicator | Green LED |

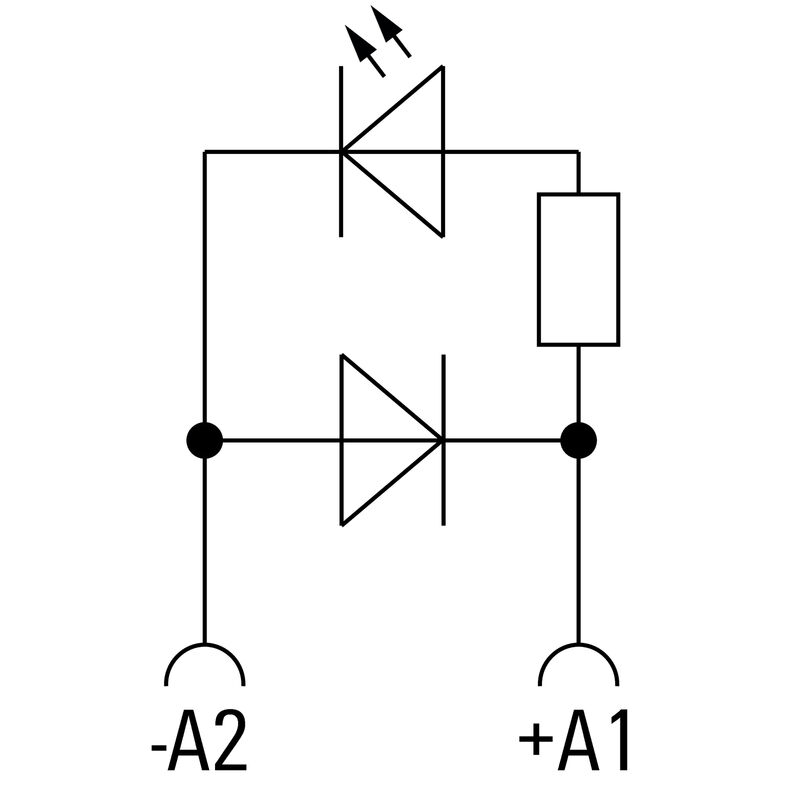

| Protective circuit | Free-wheeling diode |
| Colour | black |
| UL94 flammability rating component |
|
| Wire connection method | Plug-in connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_319066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-10-10 |
| ECLASS 10.0 | 27-37-10-10 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ECLASS 14.0 | 27-37-16-92 |
| ROHS | Conform |
