DAE M12 SS

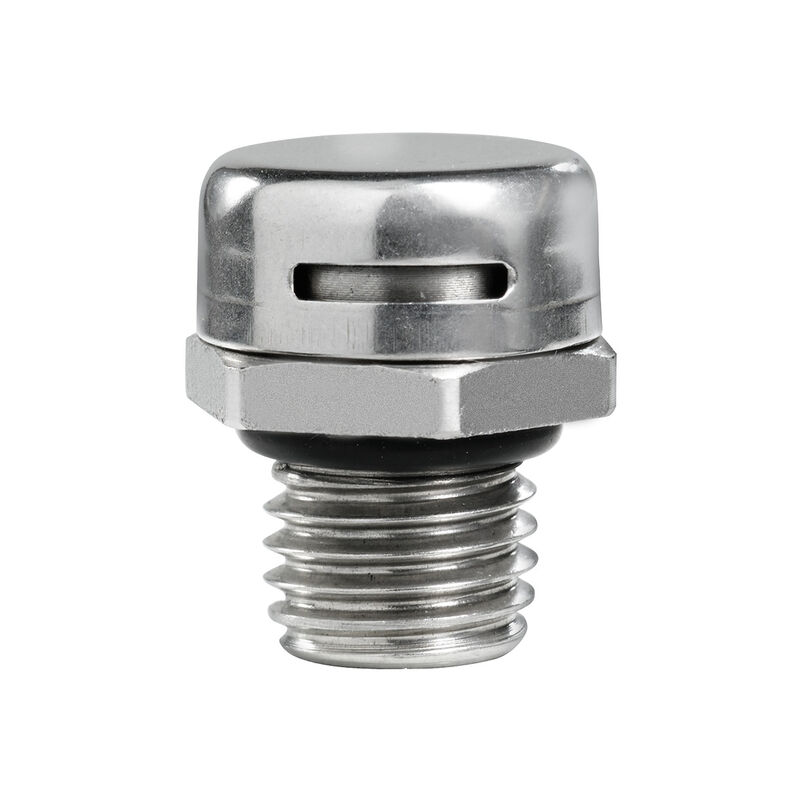

Similar to illustration
DAE M12 SS

DAE M12 SS

DAE (ventilation element), Compensating element, straight, M 12, 10 mm, IP66, IP68, IP69K, Stainless steel 1.4305 (303)

Item No. 1868550000
Download data sheet Engineering Support Product Downloads
Is accessory of 102 Related products 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

ROHS
Conform

General ordering data

Version
DAE (ventilation element), Compensating element, straight, M 12, 10 mm, IP66, IP68, IP69K, Stainless steel 1.4305 (303)
Order No.
1868550000
Type
DAE M12 SS
GTIN (EAN)
4032248440405
Qty.
10  items

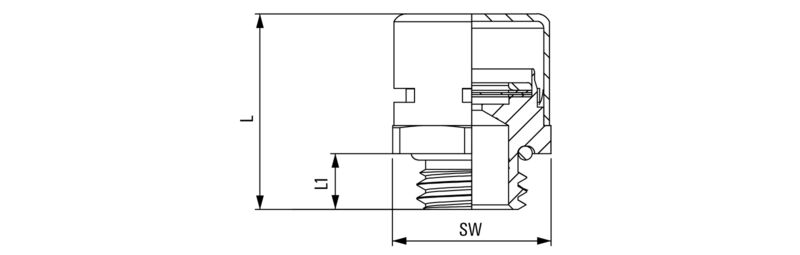

Dimensions and weights

Height
11  mm
Height (inches)
0.433  inch
Length
21.1  mm
Length (inches)
0.831  inch
Wall thickness, min.
0.5  mm
Wall thickness, max.
10  mm
Net weight
15.2  g

Temperatures

Operating temperature
-40 °C...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

AF size 1
17  mm
Air flow
0.4 l/min at 0.1 bar ΔP, up to 5.0 l/min at 1bar ΔP
Basic material
Stainless steel 1.4305 (303)
Cable gland
metric
External thread
M 12
Halogen
Yes
Inside diameter D2
12  mm
Installation guidelines
See assembly instructions
Length of thread
10  mm
O-Ring
NBR
Operating temperature range, max.
105  °C
Operating temperature range, min.
-40  °C
Pitch of thread
1.5  mm
Protection degree
IP66
IP68 (1 m / 60 min)
IP69K
Protection degree with GWDR
IP66
IP68
IP69K
Silicone
No
Torque for connecting adapter, max.
0.6  Nm
Torque for connecting adapter, min.
0.4  Nm
UL 94 flammability rating
V-2
Wasser inlet point
> 1.5 bar

Classifications

ETIM 6.0
EC000814
ETIM 7.0
EC000814
ETIM 8.0
EC000814
ETIM 9.0
EC000814
ETIM 10.0
EC000814
ECLASS 9.0
27-14-44-25
ECLASS 9.1
27-14-44-90
ECLASS 10.0
27-14-44-25
ECLASS 11.0
27-14-44-25
ECLASS 12.0
27-18-28-17
ECLASS 13.0
27-18-28-17
ECLASS 14.0
27-18-28-17
ECLASS 15.0
27-18-28-17
