Properties
| Version | PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 1 mm² |
| Order No. | 1567060000 |
| Type | DFFC 0.5-1.0 SN E |
| GTIN (EAN) | 4008190166991 |
| Qty. | 250 items |
| Product data | |
| Packaging | Box |

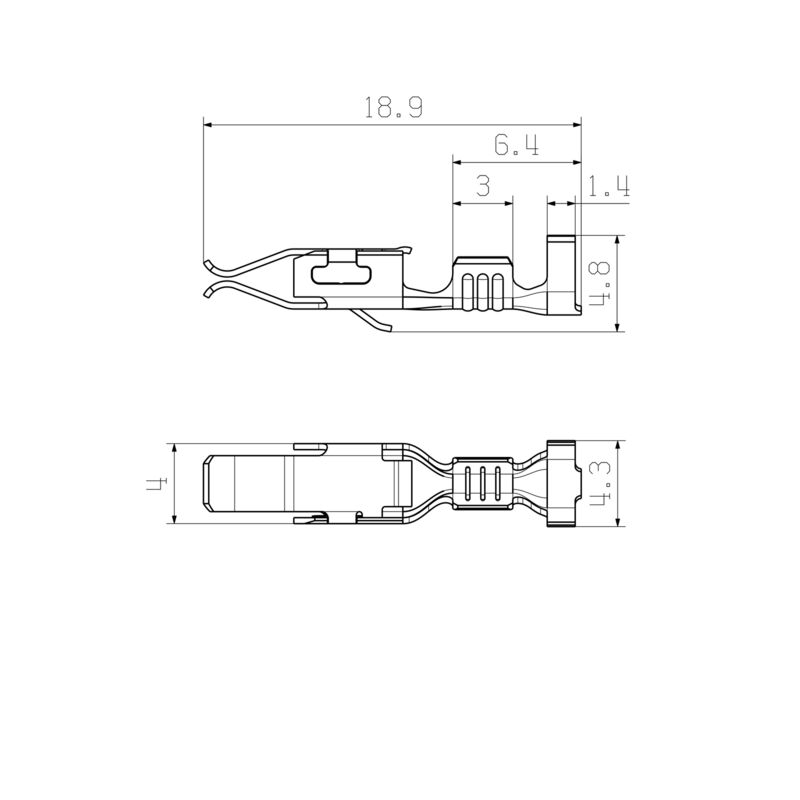

| Depth | 18.8 mm |
| Depth (inches) | 0.74 inch |
| Height | 5.7 mm |
| Height (inches) | 0.224 inch |
| Width | 4.3 mm |
| Width (inches) | 0.169 inch |
| Net weight | 0.35 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | No |
| Colour chart (similar) | - |
| Contact base material | Copper alloy |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 100 °C |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 1 mm² |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section AWG, max. | AWG 18 |
| Stranded, min. H07V-R | 0.5 mm² |
| Stranded, max. H07V-R | 1 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Flexible, max. H05(07) V-K | 1 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 0 mm² |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 0 kV |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| Packaging | Box |
| VPE length | 97 mm |
| VPE width | 90 mm |
| VPE height | 39 mm |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL BUILDING SAFETY EN](http://download.weidmueller.com/asset/download/file/38207) [FL APPL LED LIGHTING EN](http://download.weidmueller.com/asset/download/file/38275) [FL INDUSTR.CONTROLS EN](http://download.weidmueller.com/asset/download/file/38285) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-04-92 |
| ECLASS 9.1 | 27-44-04-92 |
| ECLASS 10.0 | 27-44-04-92 |
| ECLASS 11.0 | 27-46-04-03 |
| ECLASS 12.0 | 27-46-04-03 |
| ECLASS 13.0 | 27-46-04-03 |
| ECLASS 14.0 | 27-46-04-03 |
| ROHS | Conform |
