Properties

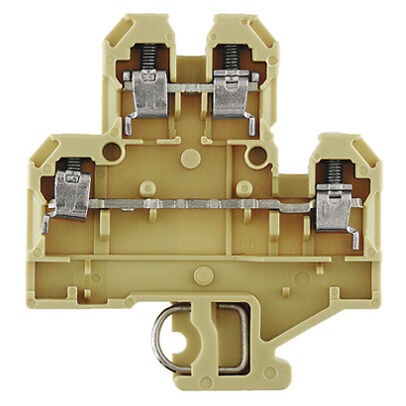

| Version | Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 800 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66 |
| Order No. | 1338260000 |
| Type | DK 4Q/TC TYP K |
| GTIN (EAN) | 4008190109561 |
| Qty. | 10 items |
| Depth | 59.5 mm |
| Depth (inches) | 2.343 inch |
| Height | 54 mm |
| Height (inches) | 2.126 inch |
| Width | 6 mm |
| Width (inches) | 0.236 inch |
| Net weight | 13.3 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | beige / yellow |
| UL 94 flammability rating | V-2 |
| Version |
Screw connection
Thermocouple One end without connector |
| End cover plate required | Yes |
| Number of potentials | 2 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2.5 mm² |
| Connection type, additional connection | Screw connection |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping screw | M 3 |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 4 |
| Stripping length | 9 mm |
| Tightening torque, max. | 1 Nm |
| Tightening torque, min. | 0.5 Nm |
| Torque level with DMS electric screwdriver | 2 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Installation advice | Direct mounting |
| Rail | TS 32 |
| Standards |
IEC 60584
IEC 60947-7-1 |
| Rated cross-section | 4 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 32 A |
| Standards |
IEC 60584
IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Approval/Certificate/Document of Conformity |
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36725)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61254) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1338260000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1338260000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-02 |
| ECLASS 14.0 | 27-25-01-02 |
| Approvals |  |
| ROHS | Conform |
