Properties
| Version | Component terminal block, Screw connection, 4 mm², 500 V, TS 35, beige / yellow |
| Order No. | 0643460000 |

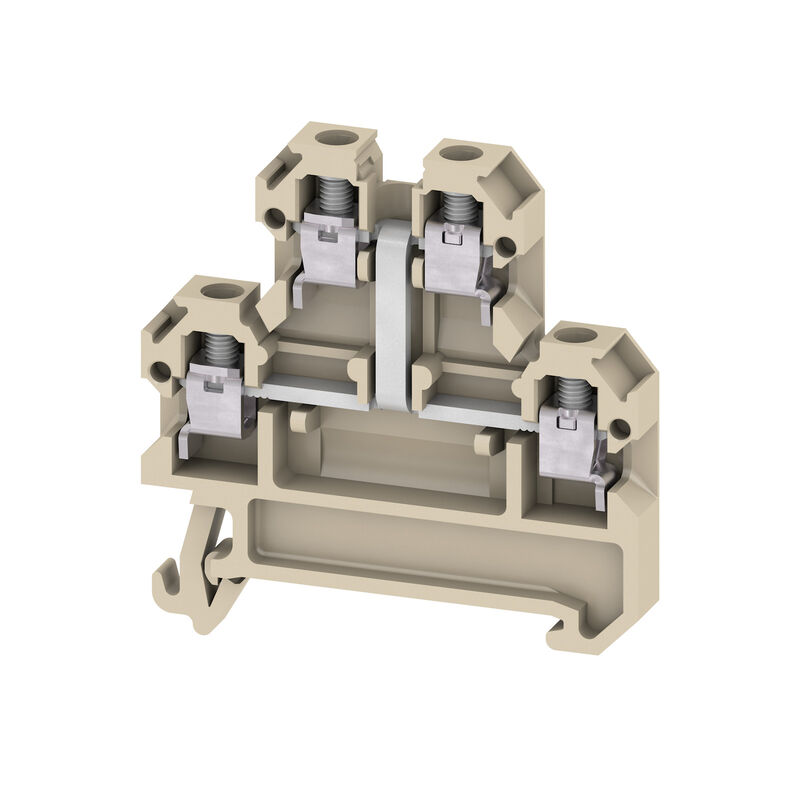

| Type | DK 4V/35 |
| GTIN (EAN) | 4008190027667 |
| Qty. | 25 items |
| Alternative product | [1041910000](~/p/1041910000) |
| Depth | 52.5 mm |
| Depth (inches) | 2.067 inch |
| Height | 50 mm |
| Height (inches) | 1.968 inch |
| Width | 6 mm |
| Width (inches) | 0.236 inch |
| Net weight | 13.04 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PA 66 |
| Colour | beige / yellow |
| UL 94 flammability rating | V-2 |
| Version |
Screw connection
Vertically cross-connected One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Open sides | right |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2.5 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | on side |
| Number of connections | 4 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| TS 35 offset | 27 mm |
| Rail | TS 35 |
| Rated cross-section | 4 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size C (UR) | 27 A |
| Voltage size C (UR) | 300 V |
| Approval/Certificate/Document of Conformity | [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000903 |
| ETIM 7.0 | EC000903 |
| ETIM 8.0 | EC000903 |
| ETIM 9.0 | EC000903 |
| ECLASS 9.0 | 27-14-11-27 |
| ECLASS 9.1 | 27-14-11-47 |
| ECLASS 10.0 | 27-14-11-27 |
| ECLASS 11.0 | 27-14-11-27 |
| ECLASS 12.0 | 27-14-11-27 |
| ECLASS 13.0 | 27-25-01-14 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
