Properties
| Version | Multi-tier modular terminal, Screw connection, 4 mm², 400 V, 10 A, Number of levels: 2, beige / yellow |
| Order No. | 0670760000 |

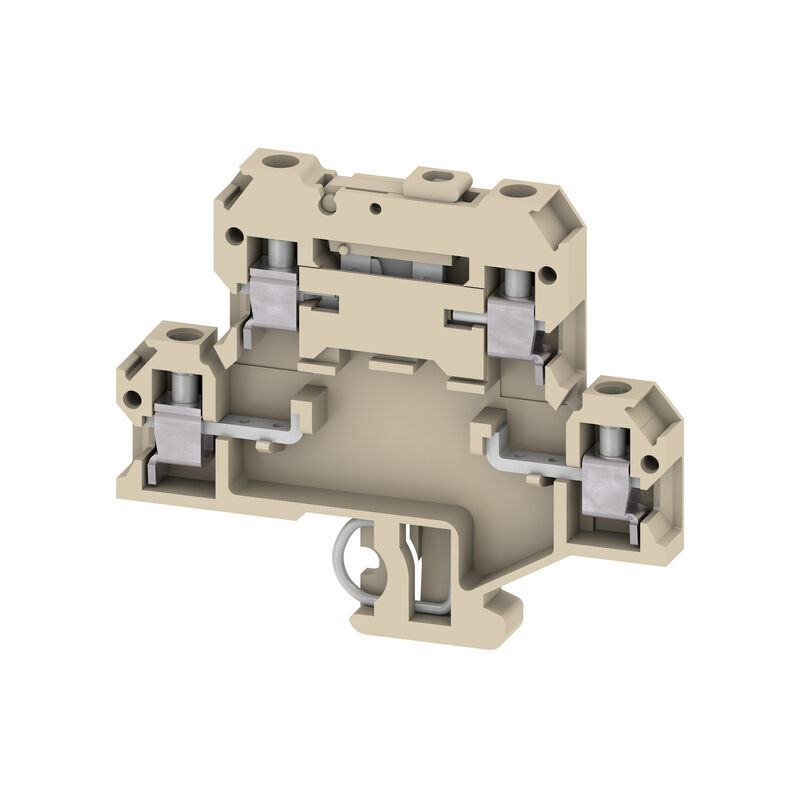

| Type | DKT 4 |
| GTIN (EAN) | 4008190526443 |
| Qty. | 50 items |
| Depth | 56.5 mm |
| Depth (inches) | 2.224 inch |
| Height | 65 mm |
| Height (inches) | 2.559 inch |
| Width | 6 mm |
| Width (inches) | 0.236 inch |
| Net weight | 15.48 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PA 66 |
| Colour | beige / yellow |
| UL 94 flammability rating | V-2 |
| Version |
Screw connection
Spacer One end without connector |
| End cover plate required | Yes |
| Number of potentials | 2 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Number of connections | 4 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Certificate No. (CSA) | 12400-281 |
| Current size C (CSA) | 25 A |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Installation advice | Direct mounting |
| Rail | TS 32 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Rated DC voltage | 400 V |
| Rated current | 10 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size C (UR) | 10 A |
| Voltage size C (UR) | 300 V |
| Approval/Certificate/Document of Conformity | [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-02 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
Accessories
-
Item No.:0482800000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 3, Pitch in mm (P): 6.00, Insulated: Yes, 27 A, grey
-
Item No.:0482700000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 2, Pitch in mm (P): 6.00, Insulated: Yes, 27 A, grey
-
Item No.:0482900000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 4, Pitch in mm (P): 6.00, Insulated: Yes, 27 A, grey
-
Item No.:1609820000Packaging unit:1000 PC
Dekafix, Terminal marker, 5 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, white
-
Item No.:1609830000Packaging unit:200 PC
Dekafix, Terminal marker, 5 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, To customer specification
-
-
-
Item No.:0607000000Packaging unit:20 PC
Partition plate (terminal), Intermediate plate, 80 mm x 70 mm, dark brown
-
-
-
Item No.:2007120000Packaging unit:600 PC
Dekafix, Terminal marker, 5 x 6 mm, Weidmueller, white
