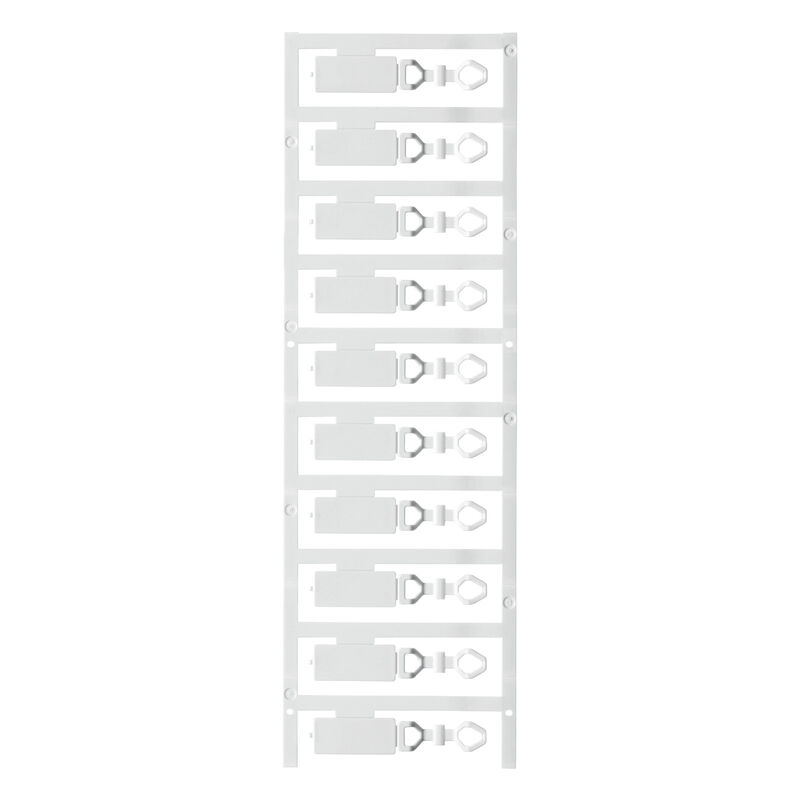

DMC 12/27 MC SDR

DMC 12/27 MC SDR

DMC, Device markers, 1.5 - 7.5 mm, 12 x 27 mm, To customer specification

Product ID 1038830000
Gegevensblad downloaden Product Downloads Engineering Support
Verwante producten 1
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications Approvals

General ordering data

Version
DMC, Device markers, 1.5 - 7.5 mm, 12 x 27 mm, To customer specification
Order No.
1038830000
Type
DMC 12/27 MC SDR
GTIN (EAN)
4032248768080
Qty.
10  items

Dimensions and weights

Depth
5  mm
Depth (inches)
0,197  inch
Height
12  mm
Height (inches)
0,472  inch
Width
27  mm
Width (inches)
1,063  inch
Net weight
1,67  g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Advice label
Colour based on customer requirements (Please send M-Print PRO file)
Colour
To customer specification
Colour of printing
black
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Material
Polyamide 66
Number of markers per combination
1 MultiCard = Device markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Number per sheet
10
Operating temperature range
-40...100 °C
Operating temperature range, max.
100  °C
Operating temperature range, min.
-40  °C
Printed characters
Requires M-Print PRO File
Printing method
MC Laser
Type of printing
To customer specification
Width
27  mm

Device markers

Halogen
No

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02

Approvals

ROHS
Conform
