DRMKIT 220VDC 2CO LD/PB

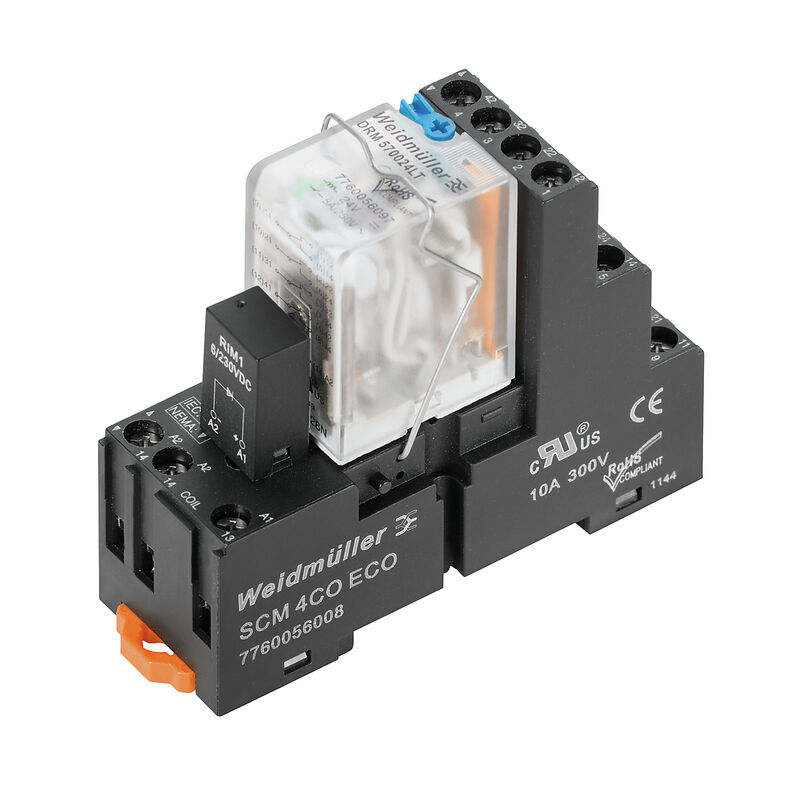

Product image
Similar to illustration
DRMKIT 220VDC 2CO LD/PB

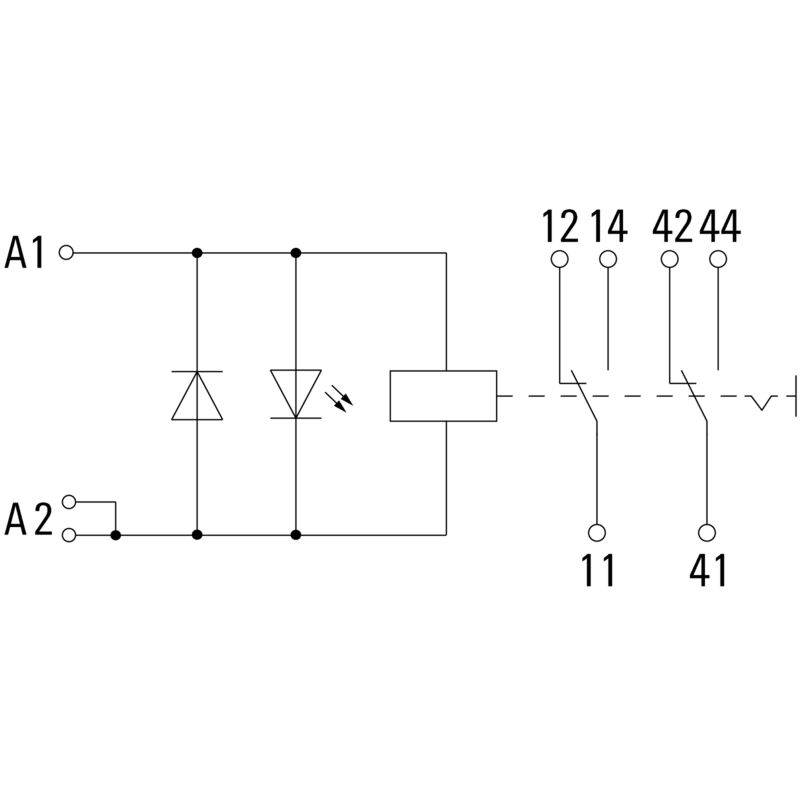

Wiring diagram
DRMKIT 220VDC 2CO LD/PB
Graph
DC load limit curve
Resistive load
DRMKIT 220VDC 2CO LD/PB
Graph
Electrical service life
DRMKIT 220VDC 2CO LD/PB
Graph
Derating curve
DRMKIT 220VDC 2CO LD/PB
Graph
DC operational voltage range
DRMKIT 220VDC 2CO LD/PB
Dimensional drawing
DRMKIT 220VDC 2CO LD/PB
Miscellaneous
Type codes

DRMKIT 220VDC 2CO LD/PB

D-SERIES DRM, Relay module, Number of contacts: 2, CO contact AgNi flash gold-plated, Rated control voltage: 220 V DC, Continuous current: 10 A, Screw connection, Test button available: Yes

Item No. 1542470000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 14 Individual parts 4 Related products 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
D-SERIES DRM, Relay module, Number of contacts: 2, CO contact AgNi flash gold-plated, Rated control voltage: 220 V DC, Continuous current: 10 A, Screw connection, Test button available: Yes
Order No.
1542470000
Type
DRMKIT 220VDC 2CO LD/PB
GTIN (EAN)
4050118347289
Qty.
10 items

Dimensions and weights

Depth
66.8 mm
Depth (inches)
2.63 inch
Height
79.9 mm
Height (inches)
3.146 inch
Width
27.2 mm
Byggbredd (tum)
1.071 inch
Peso netto
80.168 g

Temperatures

Storage temperature
-40 °C...70 °C
Ambient temperature
-40 °C…60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
611f3393-31e7-4ef5-8360-95619a629f27

Control side

Rated control voltage
220 V DC
Rated current DC
5.2 mA
Power rating
1.2 W
Resistencia inductiva
44000 Ω ± 10 %
Status indicator
Green LED
Protective circuit
Free-wheeling diode

Load side

Rated switching voltage
250 V AC
Continuous current
10 A
Макс. частота коммутации при номинальной нагрузке
0.1 Hz
Max. switching voltage, AC
250 V
Min. switching power
10 mA @ 12 V
100 mA @ 5 V
Inrush current
20 A / 50 ms
AC switching capacity (resistive), max.
2500 VA
DC switching capacity (resistive), max.
240 W @ 24 V
Ritardo all'inserzione
<20 ms
Kikapcsolási késleltetés
<20 ms
Contact type
2 CO contact (AgNi flash gold-plated)
Mechanical service life
20 x 106 switching cycles

General data

Mounting rail
TS 35
Test button available
Yes
Version of test button
Lockable test button
Momentary test button
Mechanical switch position indicator
Yes
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-2
  • Component:
    Mounting foot
  • UL94 flammability rating:
    HB
  • Component:
    Retaining clip
  • UL94 flammability rating:
    HB
  • Component:
    Relay cover
  • UL94 flammability rating:
    V-2
  • Component:
    Relay baseplate
  • UL94 flammability rating:
    V-0
  • Component:
    Relay status indicator
  • UL94 flammability rating:
    HB
  • Component:
    Relay test button
  • UL94 flammability rating:
    HB

Insulation coordination

Rated voltage
250 V
Pollution severity
2
Surge voltage category
III
Isoleringsmaterialgrupp
C
Clearance and creepage distances for control side - load side
≥ 5.5 mm
제어 측면 - 부하 측면에 대한 절연 강도
1.8 kVeff /1 min.
Rigidité diélectrique des contacts voisins
1 kVeff / 1 min
Dielectric strength of open contact
1 kVeff / 1 min
Impulse withstand voltage
4.8 kV (1.2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Certificate no. (cURus) relay
E312083
Č. certifikace (cURus), základna
E312083

Connection data

Wire connection method
Screw connection
Stripping length, rated connection
7 mm
Tightening torque, min.
0.5 Nm
Åtdragningsmoment, max.
0.7 Nm
Clamping range, min.
0.5 mm²
2.5 mm²
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
2.5 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
2.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.
1 mm²
Blade size
size PH1

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
