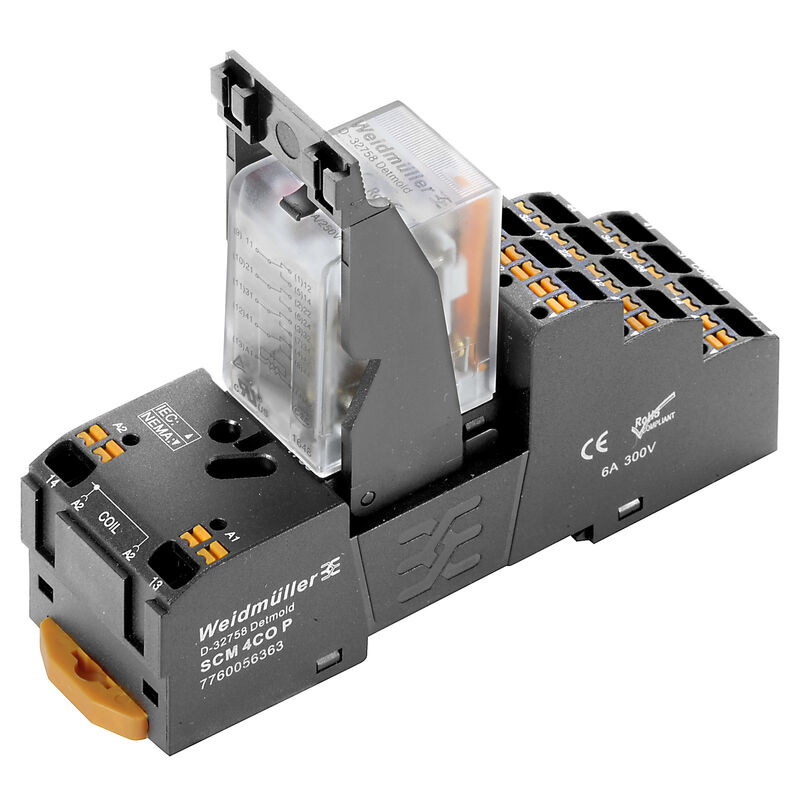

DRMKITP 24VAC 4CO LD — Product image

Similar to illustration

Download data sheet Related products

DRMKITP 24VAC 4CO LD

D-SERIES DRM, Relay module, Number of contacts: 4, CO contact AgNi flash gold-plated, Rated control voltage: 24 V AC, Continuous current: 5 A, PUSH IN, Test button available: No

Item No. 2576090000

Properties

General ordering data

Version	D-SERIES DRM, Relay module, Number of contacts: 4, CO contact AgNi flash gold-plated, Rated control voltage: 24 V AC, Continuous current: 5 A, PUSH IN, Test button available: No
Order No.	2576090000
Type	DRMKITP 24VAC 4CO LD
GTIN (EAN)	4050118585841
Qty.	10 items

Dimensions and weights

Depth	82.3 mm
Depth (inches)	3.24 inch
Height	101.8 mm
Height (inches)	4.008 inch
Width	30.6 mm
Width (inches)	1.205 inch
Net weight	108.2 g

Temperatures

Storage temperature	-40 °C...70 °C
Operating temperature	-40 °C...55 °C
Humidity	35...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant
REACH SVHC	Lead 7439-92-1
SCIP	611f3393-31e7-4ef5-8360-95619a629f27

Control side

Rated control voltage	24 V AC
Rated current AC	62.4 mA (50 Hz)
Power rating	1.0...1.2VA (60HZ)
Coil resistance	160 Ω ± 10 %
Status indicator	red LED

Load side

Rated switching voltage	250 V AC
Continuous current	5 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Min. switching power	10 mA @ 12 V 100 mA @ 5 V
Inrush current	10 A / 50 ms
AC switching capacity (resistive), max.	1250 VA
DC switching capacity (resistive), max.	120 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

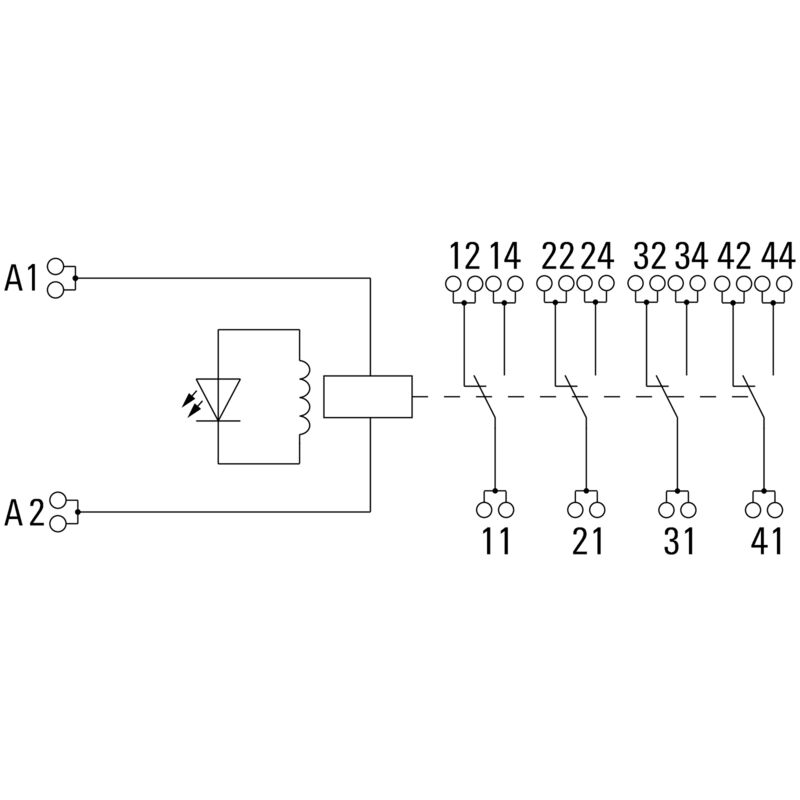

Contact type	4 CO contact (AgNi flash gold-plated)
Mechanical service life	20 x 10⁶ switching cycles

General data

Rail	TS 35
Test button available	No
Mechanical switch position indicator	Yes
Colour	black
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-2 Component: Pusher UL94 flammability rating: HB Component: Mounting foot UL94 flammability rating: HB Component: Retaining clip UL94 flammability rating: HB Component: Relay cover UL94 flammability rating: V-2 Component: Relay baseplate UL94 flammability rating: V-0 Component: Relay status indicator UL94 flammability rating: HB Component: Relay test button UL94 flammability rating: HB

Insulation coordination

Rated voltage	250 V
Pollution severity	2
Surge voltage category	III
Insulating material group	C
Clearance and creepage distances for control side - load side	≥ 3 mm
Dielectric strength for control side - load side	1.8 kV_eff /1 min.
Dielectric strength of neighbouring contacts	1 kV_eff / 1 min
Dielectric strength of open contact	1 kV_eff / 1 min
Protection degree	IP20

Further details of approvals / standards

Certificate no. (cURus) relay	E312083
Certificate no. (cURus) base	E355547

Connection data

Wire connection method	PUSH IN
Stripping length, rated connection	10 mm
Clamping range, rated connection	1.5 mm²
Clamping range, min.	0.14 mm²
Clamping range, max.	1.5 mm²
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section AWG, max.	AWG 16
Wire cross-section, solid, min.	0.14 mm²
Wire cross-section, solid, max.	1.5 mm²
Wire connection cross section, finely stranded, min.	0.14 mm²
Wire connection cross section, finely stranded, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1.5 mm²
Blade size	0.4 x 2.5 mm

Downloads

Approval/Certificate/Document of Conformity	[EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_96407)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_78999)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2576090000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2576090000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001437
ETIM 7.0	EC001437
ETIM 8.0	EC001437
ETIM 9.0	EC001437
ECLASS 9.0	27-37-16-01
ECLASS 9.1	27-37-16-01
ECLASS 10.0	27-37-16-01
ECLASS 11.0	27-37-16-01
ECLASS 12.0	27-37-16-01
ECLASS 13.0	27-37-16-01
ECLASS 14.0	27-37-16-01

Approvals

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
