Properties

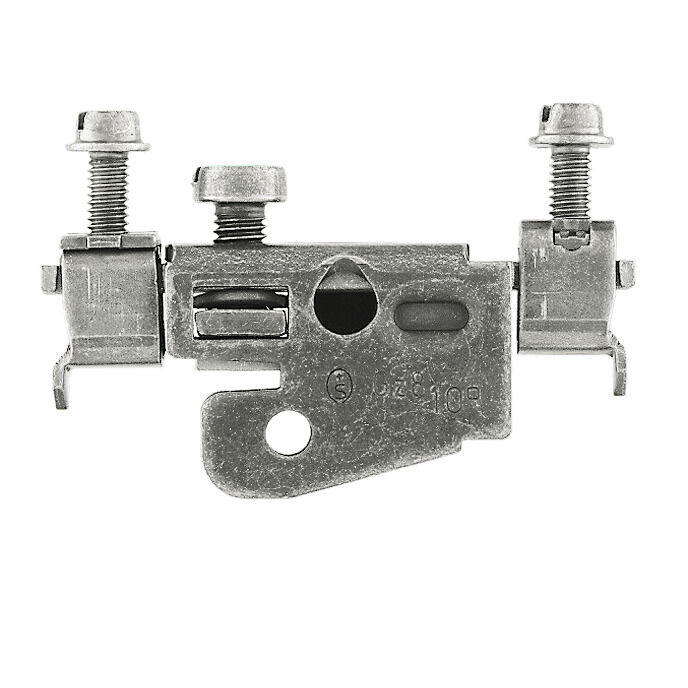

| Version | PE terminal, Screw connection, silver, 10 mm², Number of connections: 2, Number of levels: 1, TS 32, None, PA 66 |
| Order No. | 0323100000 |
| Type | EK 2 |
| GTIN (EAN) | 4008190013585 |
| Qty. | 20 items |
| Depth | 38 mm |
| Depth (inches) | 1.496 inch |
| Height | 52 mm |
| Height (inches) | 2.047 inch |
| Width | 10.2 mm |
| Width (inches) | 0.402 inch |
| Net weight | 32.9 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | silver |
| UL 94 flammability rating | None |
| Version |
Screw connection
With PE connection |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | Yes |
| Rail | TS 32 |
| N-function | No |
| PE function | Yes |
| PEN function | No |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | when screwed in |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 10 mm² |
| Connection type, additional connection | Screw connection |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 1.5 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 |
| Number of connections | 2 |
| Stripping length | 14 mm |
| Tightening torque, max. | 1.6 Nm |
| Tightening torque, min. | 1.2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Certificate No. (CSA) | 12400-236 |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Rail | TS 32 |
| Standards | IEC 60947-7-2 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 16 |
| Rated short-time current | 1200 A (10 mm²) |
| Centre screw on PE terminals | M 5 |
| Tightening torque range for fixing screw | 2.0...4.0 Nm |
| PEN function | No |
| Rated cross-section | 10 mm² |
| Standards | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.82 W |
| Approval/Certificate/Document of Conformity |
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89280)
[CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89282) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36576) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58993) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0323100000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0323100000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000901 |
| ETIM 7.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| ECLASS 9.0 | 27-14-11-41 |
| ECLASS 9.1 | 27-14-11-41 |
| ECLASS 10.0 | 27-14-11-41 |
| ECLASS 11.0 | 27-14-11-41 |
| ECLASS 12.0 | 27-14-11-41 |
| ECLASS 13.0 | 27-25-01-03 |
| ECLASS 14.0 | 27-25-01-03 |
| Approvals |    |
| ROHS | Conform |
