Properties

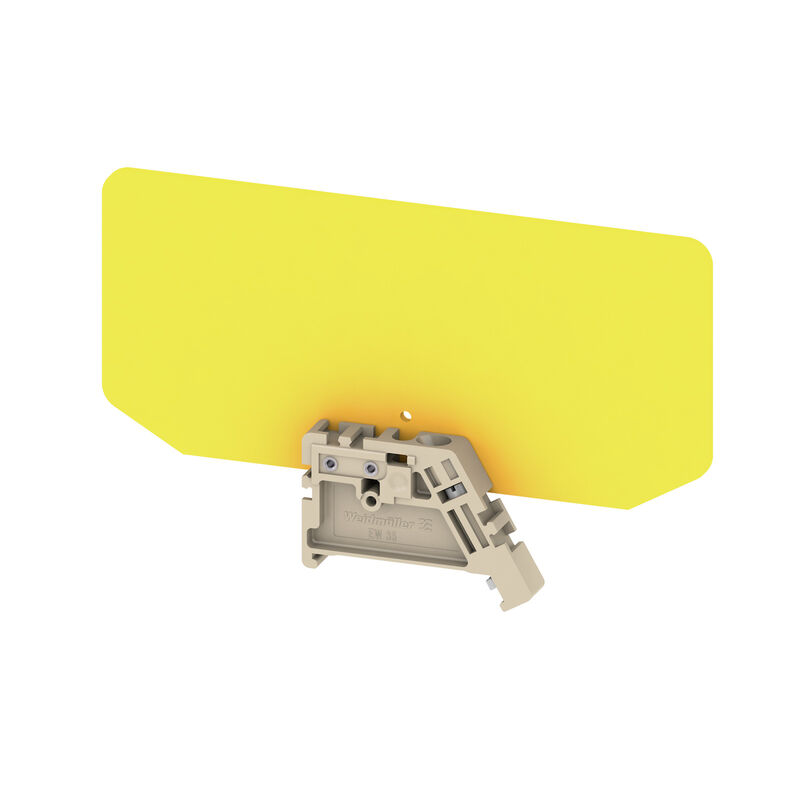

| Version | End and partition plate for terminals, End and intermediate plate, 120 mm x 2 mm, yellow |
| Order No. | 0180600000 |
| Type | EP 1 SAKG32/35 HP/TF/GE |
| GTIN (EAN) | 4008190083915 |
| Qty. | 10 items |
| Depth | 76 mm |
| Depth (inches) | 2.992 inch |
| Height | 120 mm |
| Height (inches) | 4.724 inch |
| Width | 2 mm |
| Width (inches) | 0.079 inch |
| Net weight | 23.9 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 8689236b-1c04-4b82-9d8d-177abb5f9950 |
| Material | PA 66 |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Version | End and intermediate plate |
| Snap-on | No |
| TS 32 offset | 60.5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96698) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0180600000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0180600000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0180600000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-33 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ROHS | Conform |
Is accessory of
-
Item No.:0637320000Packaging unit:10 PC
Feed-through terminal block, Screw connection, 50 mm², 1000 V, 150 A, Number of connections: 1
-
Item No.:0637120000Packaging unit:10 PC
Feed-through terminal block, Screw connection, 50 mm², 1000 V, 150 A, Number of connections: 1
-
Item No.:0637420000Packaging unit:10 PC
Feed-through terminal block, Screw connection, 50 mm², 1000 V, 150 A, Number of connections: 1
-
Item No.:0286720000Packaging unit:10 PC
Feed-through terminal block, Screw connection, 50 mm², 1000 V, 150 A, Number of connections: 1
-
Item No.:0286620000Packaging unit:10 PC
Feed-through terminal block, Screw connection, 50 mm², 1000 V, 150 A, Number of connections: 1
-
Item No.:0185120000Packaging unit:10 PC
Feed-through terminal block, Screw connection, 50 mm², 1000 V, 150 A, Number of connections: 1
-
Item No.:0170420000Packaging unit:10 PC
Feed-through terminal block, Screw connection, 50 mm², 1000 V, 150 A, Number of connections: 1
