Properties
| Order No. | 7760054308 |

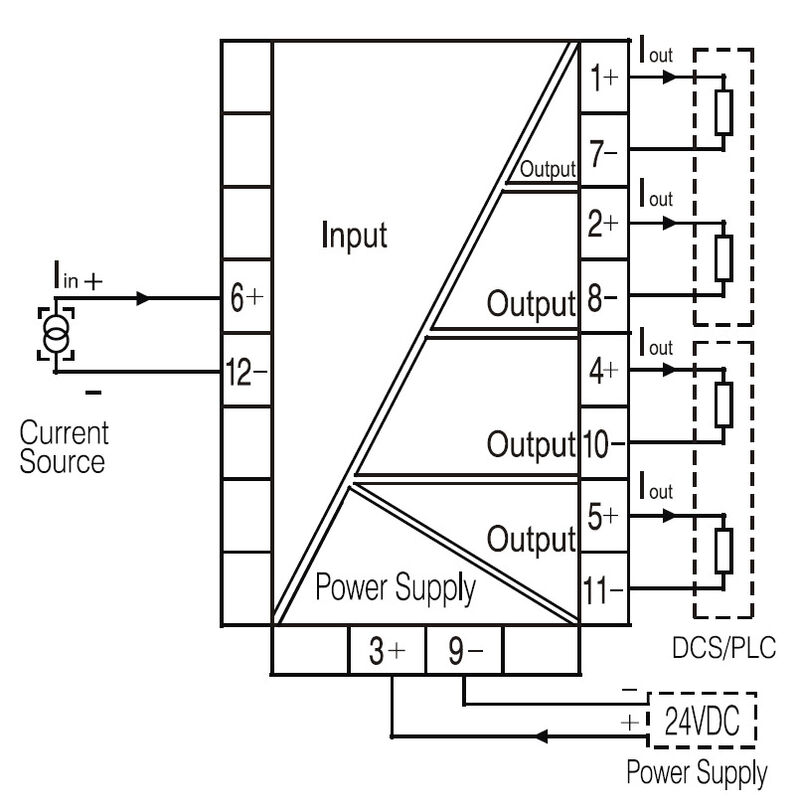

| Type | EPAK-CI-4CO |
| GTIN (EAN) | 6944169747748 |
| Qty. | 1 items |
| Depth | 89 mm |
| Depth (inches) | 3.504 inch |
| Height | 100 mm |
| Height (inches) | 3.937 inch |
| Width | 17.5 mm |
| Width (inches) | 0.689 inch |
| Net weight | 80 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...60 °C |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6a722fc5-2d22-41b4-9544-5b95e45a4b77 |
| Input current |
0...20 mA
4...20 mA |
| Input resistance, current | ≤ 100 Ω |
| Number of inputs | 1 |
| Load impedance current | ≤ 300 Ω |
| Number of outputs | 4 |
| Output current |
0...20 mA
4...20 mA |
| Max. switching voltage, AC | 0 V |
| Max. switching voltage, DC | 0 V |
| Number of digital outputs | 0 |
| Rated switching current | 0.1 A |
| Number of analogue outputs | 4 |
| Accuracy | 0.1% FSR |
| Configuration | none |
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Power consumption | ≤1.9 W |
| Protection degree | IP20 |
| Step response time | ≤ 500 ms |
| Temperature coefficient | ≤ 300 ppm/K |
| Voltage supply | 20...35 V DC |
| EMC standards | IEC 61326-1 |
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Impulse withstand voltage | 3 kV (1.2/50µs) |
| Insulation voltage | 1.5 kVeff |
| Pollution severity | 2 |
| Rated voltage | 300 V |
| Surge voltage category | II |
| Type of connection | Screw connection |
| Tightening torque, min. | 0.4 Nm |
| Tightening torque, max. | 0.6 Nm |
| Clamping range, rated connection | 2 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 2 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 14 |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_48907) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212327) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760054308) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_38779) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 9.0 | EC002653 |
| ECLASS 9.0 | 27-21-01-20 |
| ECLASS 9.1 | 27-21-01-20 |
| ECLASS 10.0 | 27-21-01-20 |
| ECLASS 11.0 | 27-21-01-20 |
| ECLASS 12.0 | 27-21-01-20 |
| ECLASS 13.0 | 27-21-01-20 |
| ECLASS 14.0 | 27-21-01-20 |
| Approvals |  |
| ROHS | Conform |
